pick up floor cab floor

[clive.linge]

Hi all,i have a 1964 pick up which i have owned for the past 15years.
The cab floor was in a very poor state with multiple layers of patches when i purchased the vehicle .
As i am now retired i have started to restore it with lots of new panels and the plasma cutter and mig welder working overtime.

my question if anyone can help is how are the cab floor stiffeners fiited ie parallel to the chassis or at right angles to it?
thanks

[Bill_qaz]

Can't you download the body parts manual like you can for the saloons ?

[les]

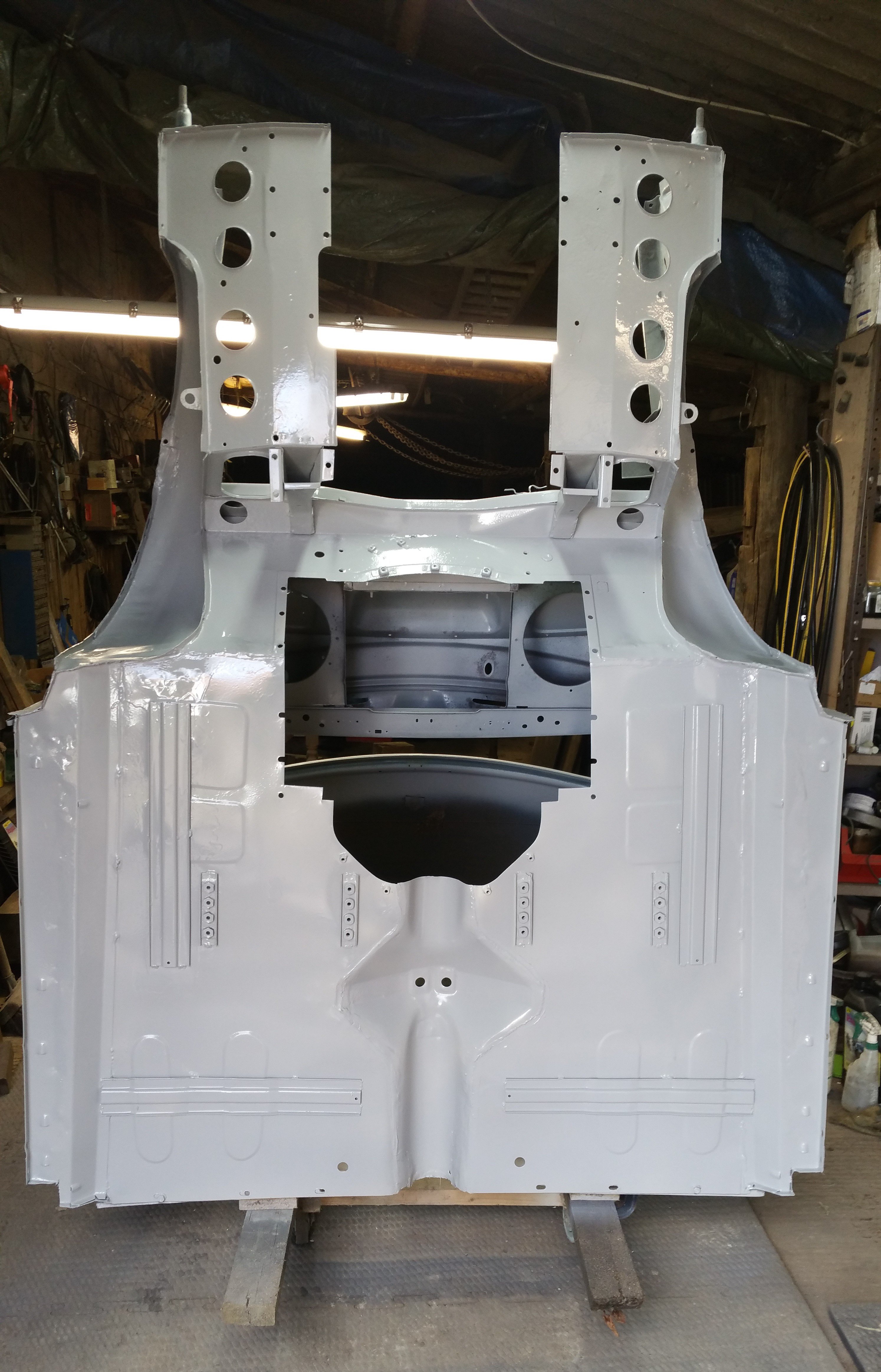

If these are the strengthening sections you mean, they are parallel to the chassis.


[Keith]

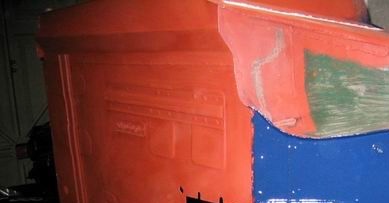

Just to add to the reply from Les.

[les]

Yes, a much more detailed picture from Keith. Puts mine to shame !

[geoberni]

Can't you download the body parts manual like you can for the saloons ?

Yes, it is available, in fact these LCV Parts manuals cover all from the beginning, unlike the available car download which is only 1000/1956 onwards .

AKD 3574 and AKD 3575.

https://www.spridgetguru.com/TchIndx17_ ... KD3574.pdf
https://www.spridgetguru.com/TchIndx17_ ... KD3575.pdf

[Keith]

Not my intention Les...you know me

[clive.linge]

Thanks to all for all your help.
All i got to now is weld them on!
regards
clive

[les]

Not my intention Les...you know me

I know that Keith
