Type 9 Gearbox Quick Shift

[bobtail4x4]

My traveller has a type 9 box, when I go for reverse, the lever rubs the passenger seat and passengers legs,
I bought a Quick Shift Kit off ebay, hoping the slightly reduced travel will help,
the instructions are poor,
anyone fitted one?
looked on U tube lots of after videos, cant find any "how to"

had the gear lever off and put it back on,

[philthehill]

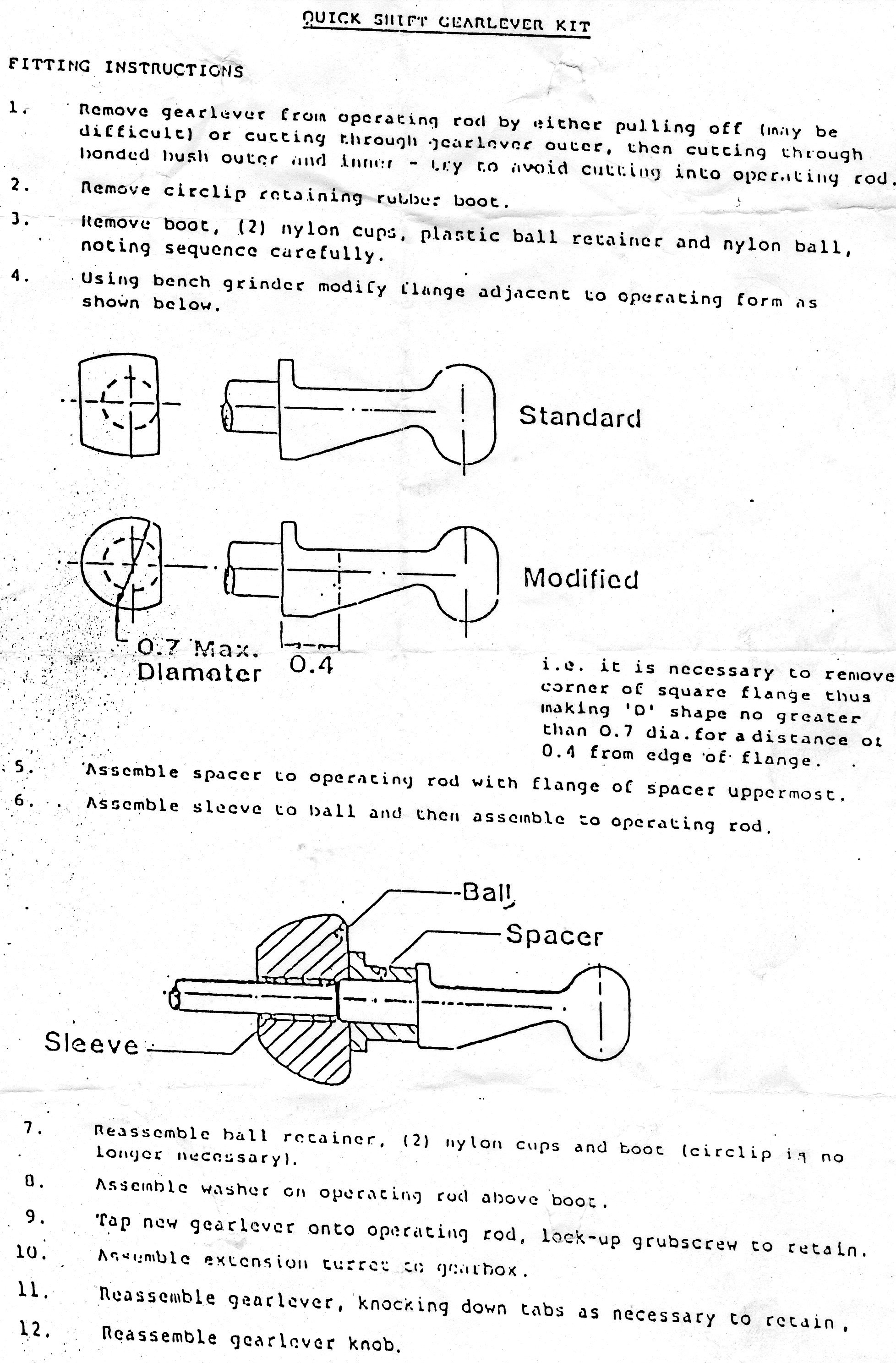

These are the instructions for the aftermarket quick-shift I used on my Ford 2000E gearbox and as far as I am aware it is the same style as the type 9but please check before doing any modifications.
To get the quick-shift it raises the centre of pivot.
The aftermarket quick shift which the instructions below refer to has now been superseded by a purpose made Quaife quick-shift lever.

Ford quick shift.jpg (795.42 KiB) Viewed 1806 times

[bobtail4x4]

that makes more sense than the ones I have,
anyone got a utube link? I like pictures,

or anyone in yorkshire want a quick job for cash??

[philthehill]

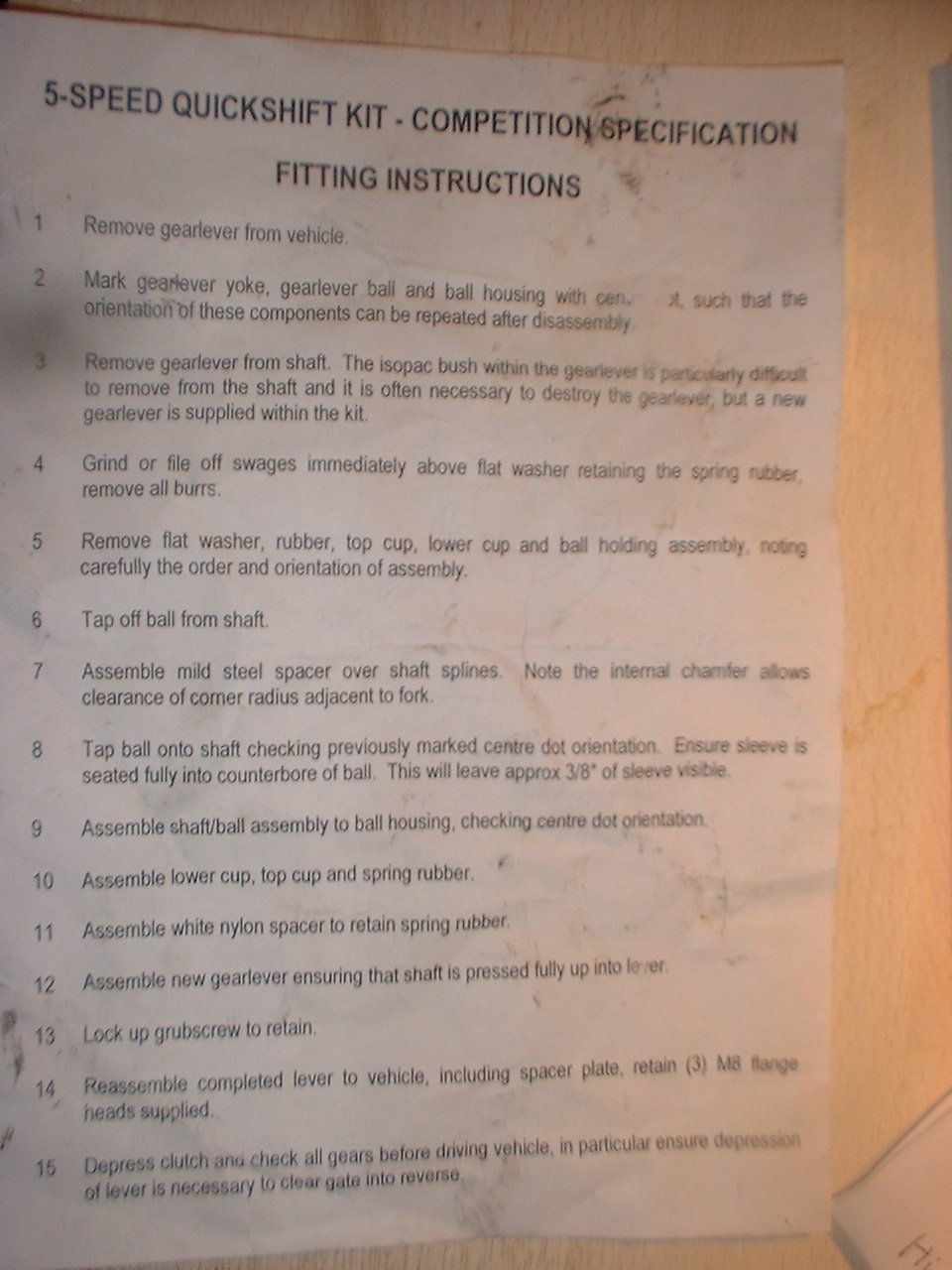

Here are some instructions relating to a type 9 gearbox quick shift

Ford quick shift 2.jpg (160 KiB) Viewed 1793 times
