Slave cylinder

[Classiccars]

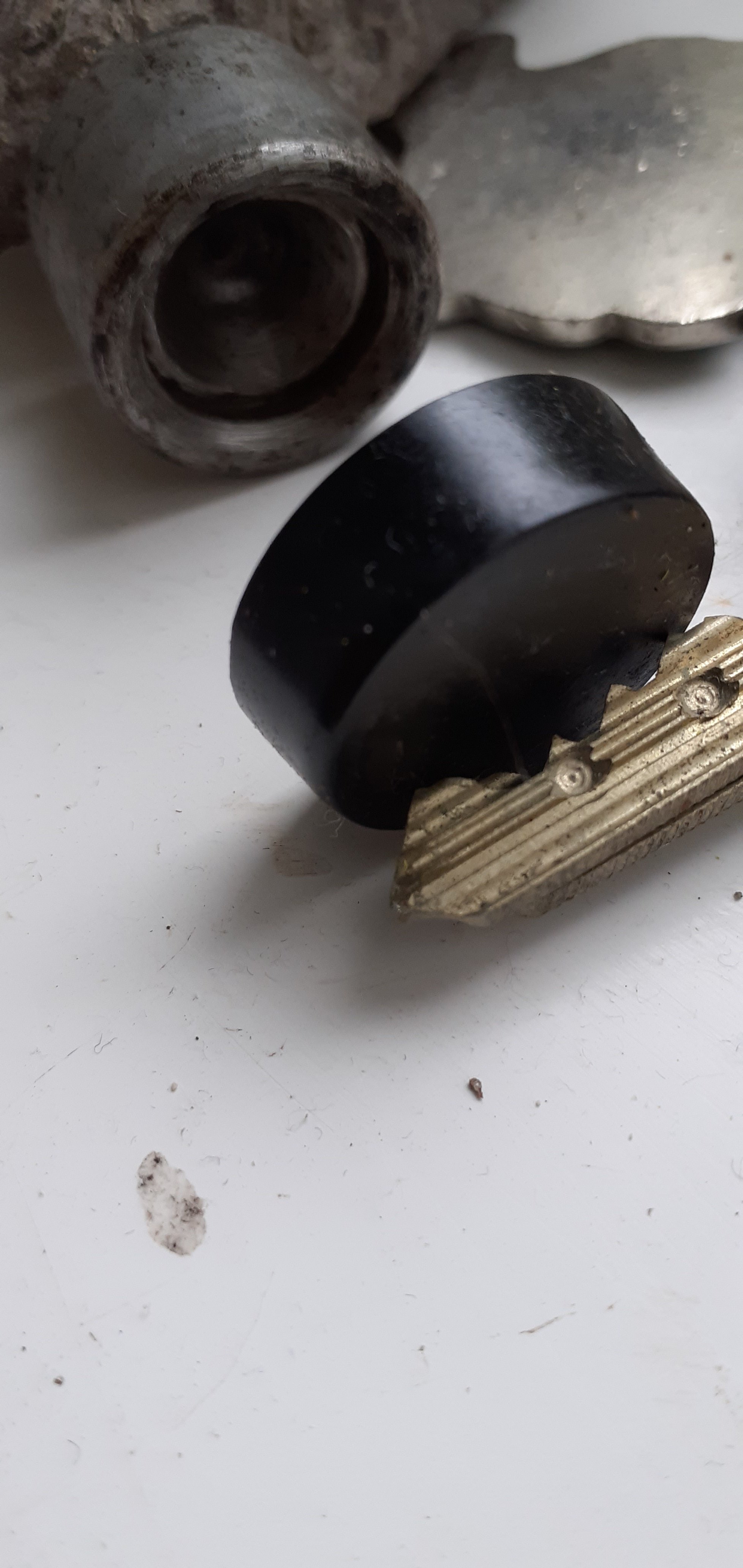

:Hi all please can you advise the orientation of these parts.I am .unsure if the concave sides go together or am I wrong please.


[les]

The concave end faces the fluid, the flat sides touch. If I’m understanding your question !

[Classiccars]

Thank you Les so am I correct to say the flat sides against each other.The opposite to whst I have here.So would thst mean the concave of the piston would then take rod end into its dish.

[les]

Yes.

[philthehill]

The orientation of the seal in your photo above is correct in that the concave faces into the cylinder.
The operating rod (No: 16 in the link below) sits into the outward facing concave of the metal piston.
See link below for how the assembly (No: 10) goes together:-

https://www.moss-europe.co.uk/en-gb/clu ... 14--03--01
Note:- There are variations to the slave cylinder but they are all have the same style of seal and piston.

[Classiccars]

Thank you gents a great help as ever.
