Throttle / choke cable

[Davidmbe]

I have a 1098 engine in my moggy and I can’t find the pictures of how the throttle cable and choke cable connects to the carburettor ?

[geoberni]

It's not just the 'Where' it's also the 'How'.
The Choke Cable requires twisting to ensure the ratchet stop works correctly.
Details in the workshop manual.

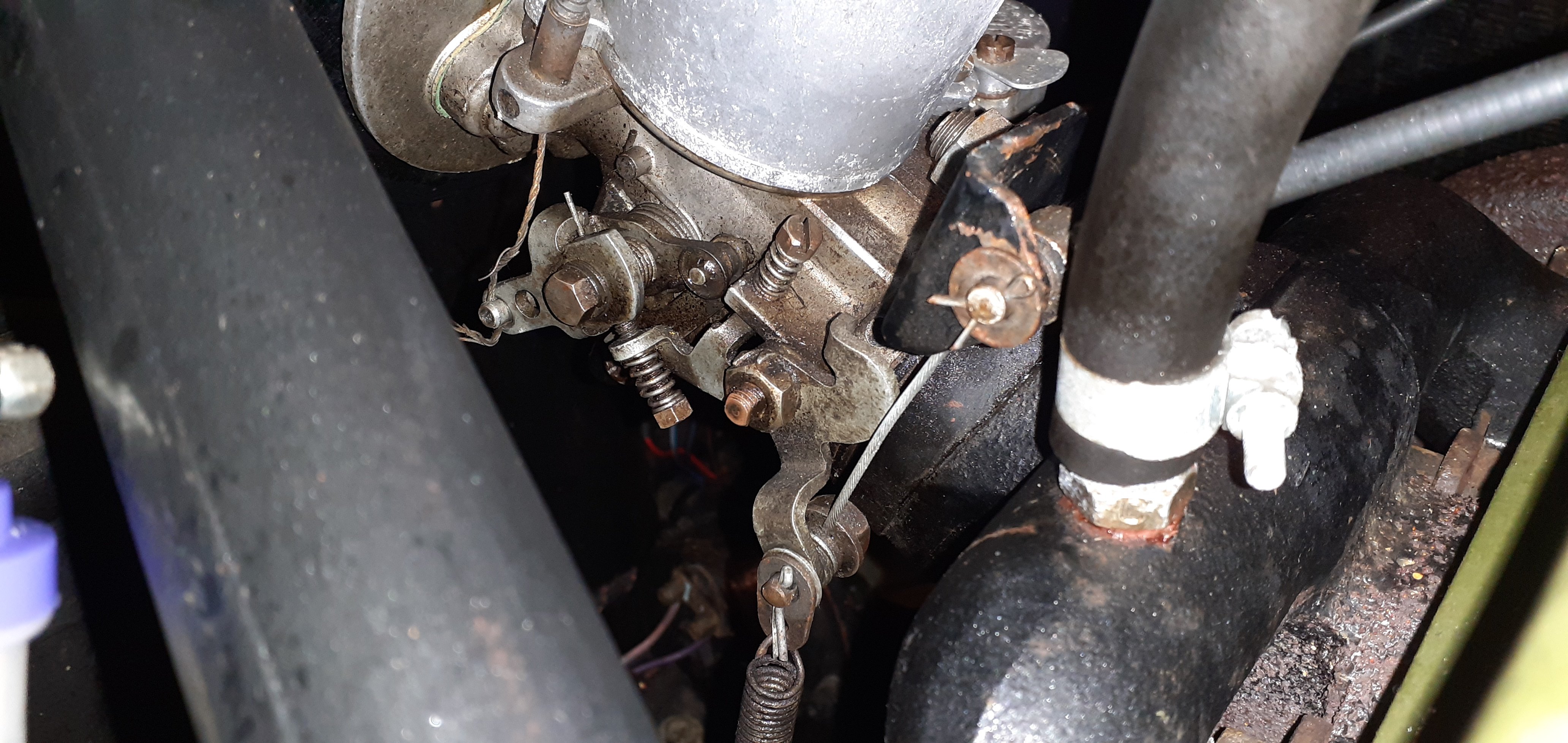

Here's the visual layout.

The Throttle is the one nearest the Manifold, in case you haven't realised.


[svenedin]

This diagram shows the various washers and pinch bolts.

https://www.moss-europe.co.uk/en-gb/eng ... 20--05--01

Stephen

[Davidmbe]

Thanks geoberni

[Davidmbe]

I’ve ordered a throttle spring and thanks svenedin

[svenedin]

I’ve ordered a throttle spring and thanks svenedin

You're welcome. If you are missing any of the parts like pinch bolts, washers etc then ESM sell them under the "fuel and carburettor" section.

Stephen
