Bonnet release

[Toby burnham]

Just putting the bonnet release rod back in does the tab that holds the spring on just jam at a angle onto the rod and were does the spring attach to on the body.

[svenedin]

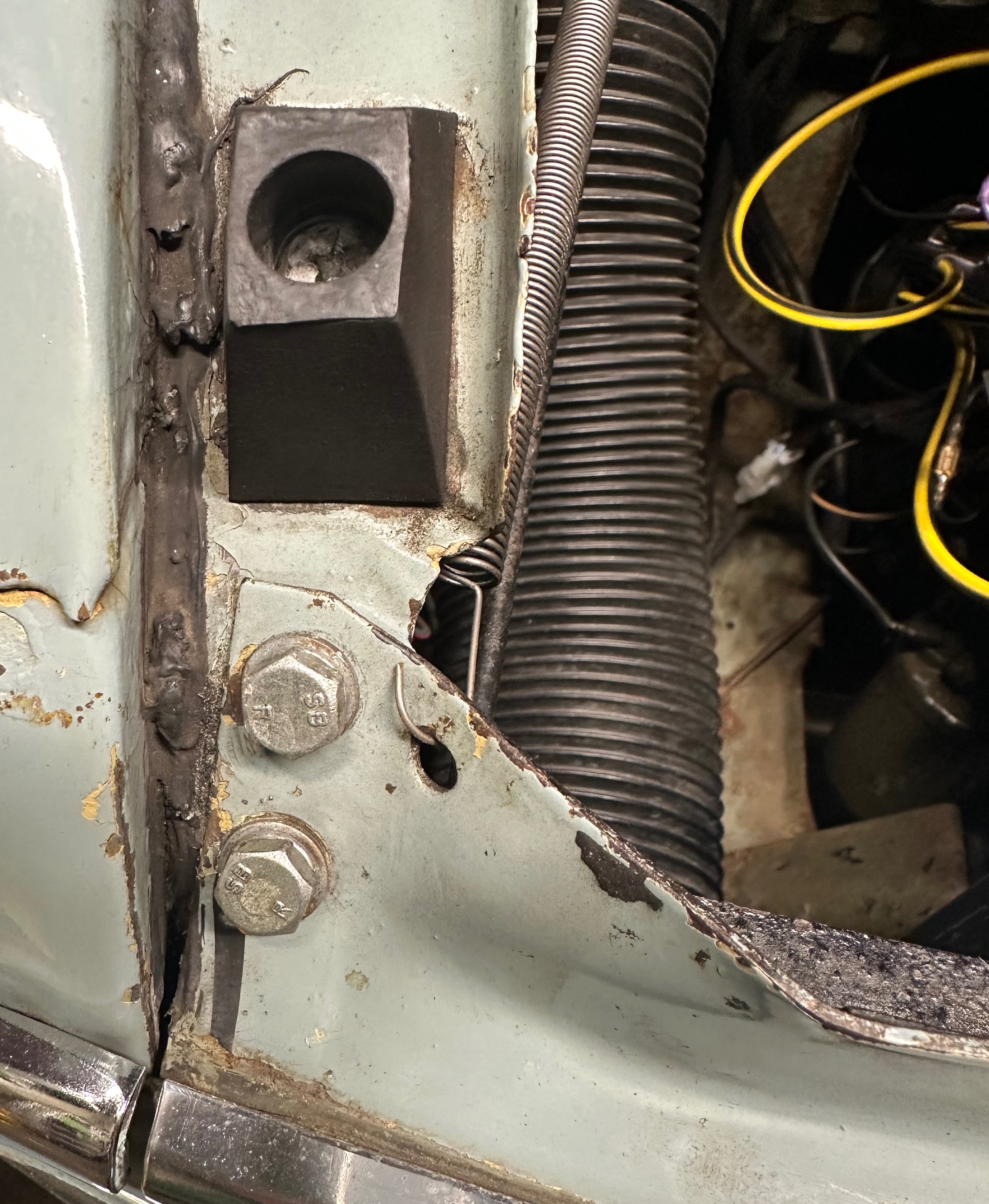

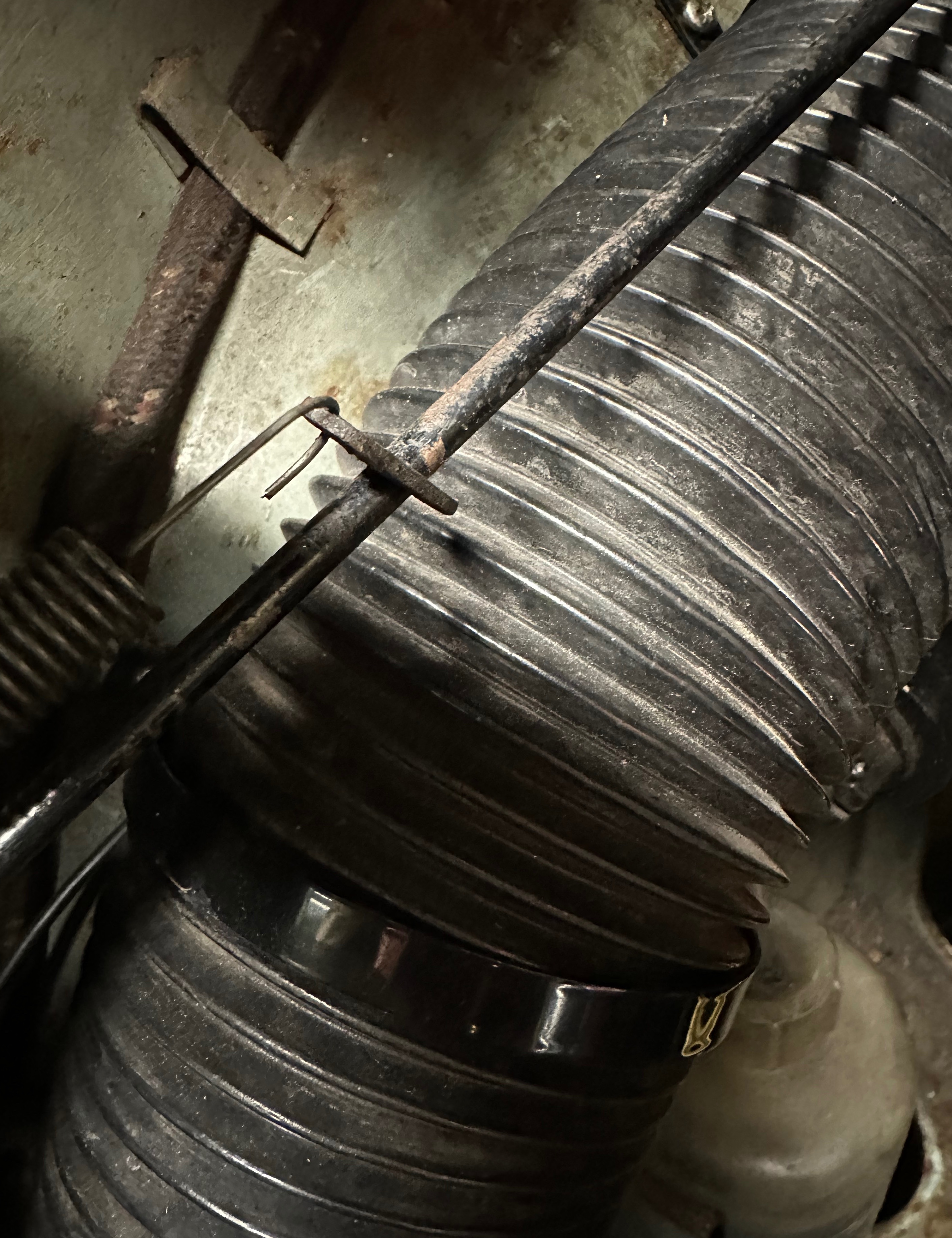

Spring attaches as shown in the photos Yes the tab catches the release rod at an angle and will not slip if tensioned correctly.

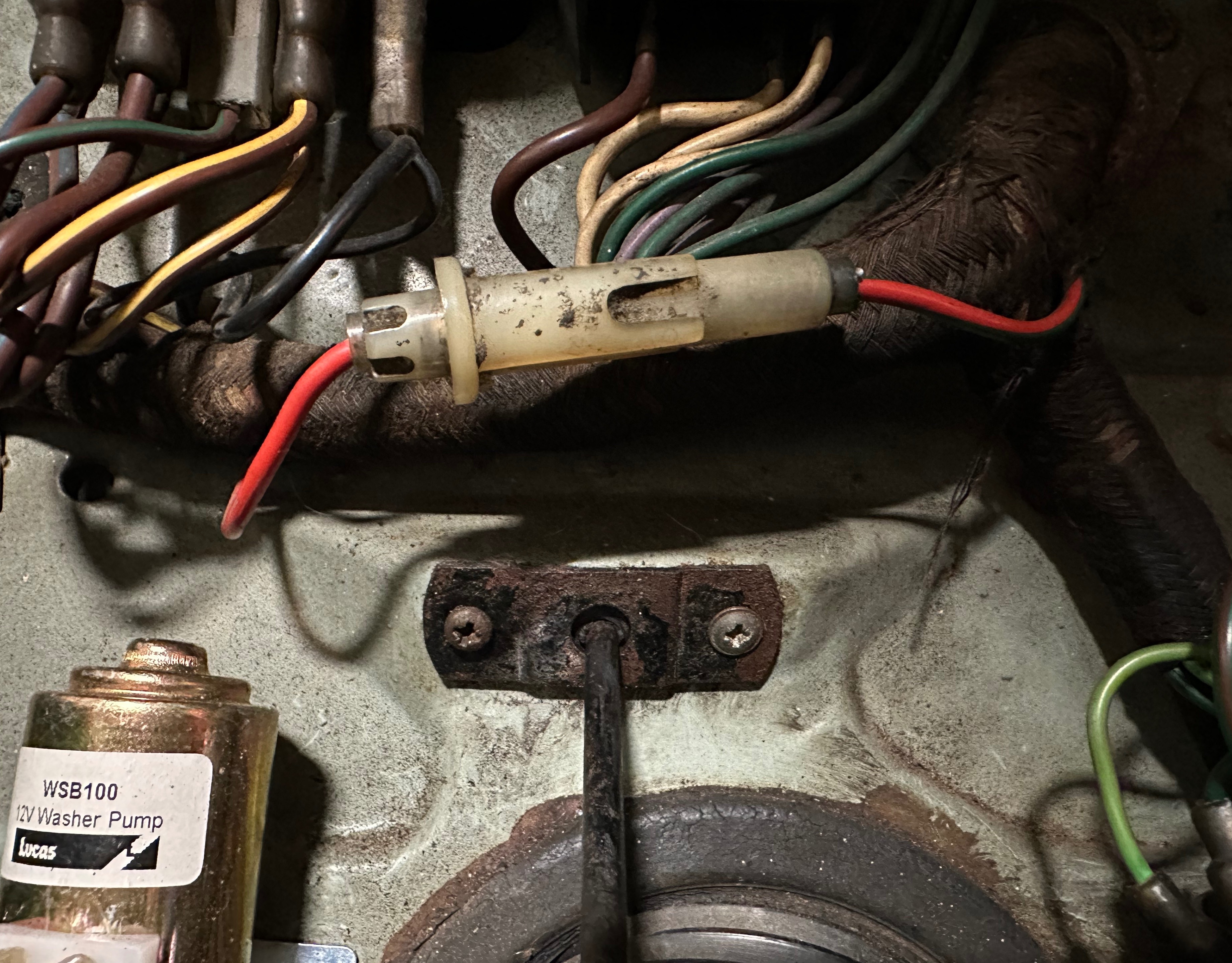

Incidentally, there is a rubber grommet under the bracket on the bulkhead. If that grommet has perished or is missing then the anti-rattle spring will not prevent the bonnet release rod from rattling horribly.

Stephen


[



[Toby burnham]

Thank you all makes sense now
