Oil filter housing and switch

[Toby burnham]

I have a 1969 1098 minor and noticed on the engine wiring loom there is a spare wire that is for the oil filter switch if it becomes blocked. My filter housing hasn't got the switch can one be fitted drilled and taped if so what is the part number for the switch.

[svenedin]

I have a 1969 with the original engine and it does have the oil filter head with the blocked filter warning. I think you might not have the original engine or perhaps the filter head has been changed?

As far as I know, the best way to return to original condition is to buy a filter head that has the switch in it. I actually have a spare I picked up at an auto jumble, brand new and unused so these do turn up.

Of course if you have a spin on conversion the head may well have been changed. It is actually possible to retain the original head, fit a special adapter and use spin on filters.


The part number is 37H1528 which is the Purolator filter head with pressure switch (blocked filter warning)

Of course, the filter should really never ever become blocked if proper maintenance is followed but it is nice to have.

Stephen

[geoberni]

The part number is 37H1528 which is the Purolator filter head with pressure switch (blocked filter warning)

Of course, the filter should really never ever become blocked if proper maintenance is followed but it is nice to have.

Stephen

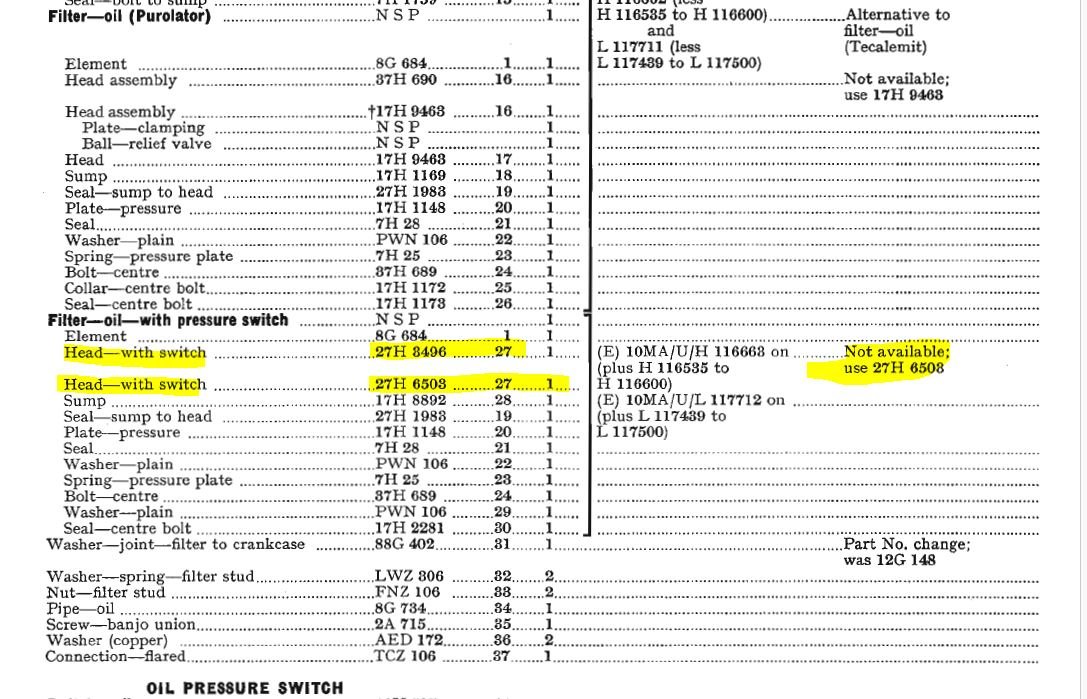

FYI, I can't find that number, the Lists I have are as below.
The non switch head is codified 37H prefix, the ones with a switch are 27H.

Oil Filter.JPG (188.92 KiB) Viewed 1285 times

[svenedin]

I didn’t look at my parts book actually.

https://www.somerfordmini.co.uk/head-wi ... assy-64-69

Stephen

[geoberni]

I didn’t look at my parts book actually.

https://www.somerfordmini.co.uk/head-wi ... assy-64-69

Stephen

Knowing BL, the Mini probably had their own version with some insignificant little difference...

[philthehill]

The standard Minor oil filter head cannot be modified to accept the blocked oil filter switch.
The filter head with switch was discontinued because it was found to be totally unnecessary because blocked oil filters are a very rare occurrence. Even if the oil filter does get blocked the oil still flows past the blocked filter element via the oil filter head bypass valve. The bypass valve operates at about 3lb pressure so there is always oil circulating through the engine.
The classic mini Cooper S had a blocked filter switch that bolted onto the filter head yet retained the element type filter.
https://www.ebay.co.uk/itm/364868847015 ... R9bB8YbmZA
I have one of the classic Mini Cooper S filter heads with switch available if required.

[oliver90owner]

Fit on a spin-on head. Most, if not all, good quality spin-on filters have an internal bypass to maintain unfiltered lubrication if the filter becomes blocked.
