Smiths battery gauge

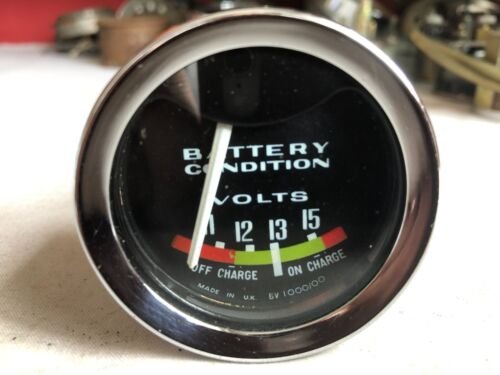

I fitted a Smiths battery gauge a few months ago which worked fine showing the level of charge in the battery. A few weeks ago it stopped working, with the needle staying on the extreme left 'off charge' position.
I checked with a circuit tester and there is a current going through as the bulb lights up so the connections look to be good. Any ideas what has gone wrong and is it something that might be repairable or should I seek a replacement? Electrics are not my strong point!1960 2 door with 1275 Midget engine - WOI 577 - owned since 1990
1952 MM convertible with original engine - MWD 305 - owned since 2023
1952 MM convertible with original engine - MWD 305 - owned since 2023
-
- Minor Legend
- Posts: 1679
- Joined: Thu May 12, 2016 6:33 am
- MMOC Member: No
Re: Smiths battery gauge
Have you considered that perhaps the gauge is working properly? Easy to check.
Re: Smiths battery gauge
Not familiar with the specific gauge but generally the bulb is fed from a different supply to the actual gauge. Ie there’s usually 3 connections, +ve to the bulb, +ve to the gauge and common earth (-ve on battery)
- Mr Spigot
- Minor Fan
- Posts: 166
- Joined: Mon Sep 13, 2021 2:44 pm
- Location: East Sussex
- MMOC Member: Yes
Re: Smiths battery gauge
I would be very surprised if the gauge is working as it does not move at all, the battery is new and the car starts and runs fine and all the electrics work as they should. I could put a voltmeter across it to check I suppose?
I have not got a bulb fitted yet as the car is going to be re wired and the gauges repositioned. There is a live feed to one terminal and the other goes to earth.
I have not got a bulb fitted yet as the car is going to be re wired and the gauges repositioned. There is a live feed to one terminal and the other goes to earth.
1960 2 door with 1275 Midget engine - WOI 577 - owned since 1990
1952 MM convertible with original engine - MWD 305 - owned since 2023
1952 MM convertible with original engine - MWD 305 - owned since 2023
Re: Smiths battery gauge
Now I’m confused. In your first post you said ‘the bulb lights up’ but in the last you say there’s no bulb fitted. ???
If it’s out of the car simply connecting the + and - to a battery should make the needle swing into the green
If it’s out of the car simply connecting the + and - to a battery should make the needle swing into the green
- Mr Spigot
- Minor Fan
- Posts: 166
- Joined: Mon Sep 13, 2021 2:44 pm
- Location: East Sussex
- MMOC Member: Yes
Re: Smiths battery gauge
Sorry for the confusion! The bulb on the circuit tester lights up confirming a current is going through it. However there is no movement on the needle.
1960 2 door with 1275 Midget engine - WOI 577 - owned since 1990
1952 MM convertible with original engine - MWD 305 - owned since 2023
1952 MM convertible with original engine - MWD 305 - owned since 2023
- geoberni
- Minor Legend
- Posts: 3660
- Joined: Fri Aug 04, 2017 11:19 am
- Location: North Leicestershire
- MMOC Member: Yes
Re: Smiths battery gauge
That depends where you placed the Circuit tester. In fact, I can't think of a way a Circuit tester will tell you that is OK, and be lit up (if it's all connected).
![:-?](./images/smilies/icon_confused.gif)

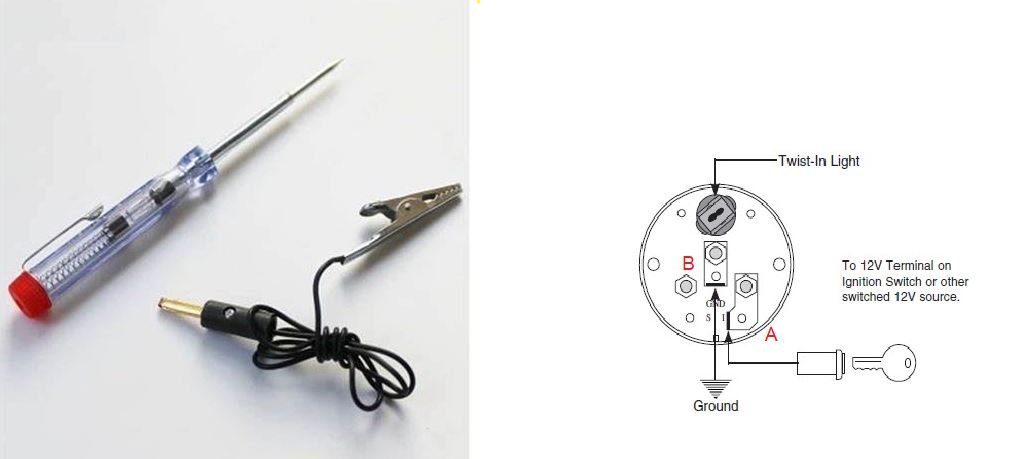

The Gauge is just a Volt Meter, hence, here's the back of a Voltmeter....
So if you get one of these Test Lamp tools and connect it between Earth and Point A, it will light up irrespective of whether the gauge is working or not.
If you connect it to Point B and it lights up, then the Earth connection is open circuit because Point B should be at Earth potential.
If you connect it to Pint B and it doesn't light up, it doesn't tell you if there a supply coming through the gauge or not.
Only if you disconnect the earth cable from Point B and then try the test lamp does it tell you if the gauge has continuity through it.
Basil the 1955 series II
![Image](https://image.ibb.co/hrLO0J/DSCF8095_F.jpg)
![Image](https://image.ibb.co/hrLO0J/DSCF8095_F.jpg)
- Mr Spigot
- Minor Fan
- Posts: 166
- Joined: Mon Sep 13, 2021 2:44 pm
- Location: East Sussex
- MMOC Member: Yes
Re: Smiths battery gauge
Thanks for the helpful instructions. I dug up my Gunsons Sparktune voltmeter and when applied to the live feed 'A' with the ignition on and the engine running, it showed a healthy 14 volts. However, when I disconnected the earth lead and applied the test to 'B', there was nothing, suggesting that my first assumption was right and that the gauge has failed as no current is passing through it.
Unless there is a simple way to fix this I suppose I will need to get a new gauge.
Unless there is a simple way to fix this I suppose I will need to get a new gauge.
1960 2 door with 1275 Midget engine - WOI 577 - owned since 1990
1952 MM convertible with original engine - MWD 305 - owned since 2023
1952 MM convertible with original engine - MWD 305 - owned since 2023
-
- Minor Friendly
- Posts: 56
- Joined: Sat Jul 30, 2022 4:55 pm
- Location: Newton Aycliffe, County Durham
- MMOC Member: No
Re: Smiths battery gauge
Next step is to open-up the gauge and check for broken or badly soldered joints - some photos would help once opened.Mr Spigot wrote: ↑Sun Nov 27, 2022 3:59 pm Thanks for the helpful instructions. I dug up my Gunsons Sparktune voltmeter and when applied to the live feed 'A' with the ignition on and the engine running, it showed a healthy 14 volts. However, when I disconnected the earth lead and applied the test to 'B', there was nothing, suggesting that my first assumption was right and that the gauge has failed as no current is passing through it.
Unless there is a simple way to fix this I suppose I will need to get a new gauge.
Dave H.
- geoberni
- Minor Legend
- Posts: 3660
- Joined: Fri Aug 04, 2017 11:19 am
- Location: North Leicestershire
- MMOC Member: Yes
Re: Smiths battery gauge
You might find this helpful...Mr Spigot wrote: ↑Sun Nov 27, 2022 3:59 pm Thanks for the helpful instructions. I dug up my Gunsons Sparktune voltmeter and when applied to the live feed 'A' with the ignition on and the engine running, it showed a healthy 14 volts. However, when I disconnected the earth lead and applied the test to 'B', there was nothing, suggesting that my first assumption was right and that the gauge has failed as no current is passing through it.
Unless there is a simple way to fix this I suppose I will need to get a new gauge.
![:wink:](./images/smilies/icon_wink.gif)
The guy has been quite detailed.
![Good'un :tu1:](./images/smilies/Icon_thumbs_up.png)
http://www.jensenhealey.com/forums/view ... forum_id=7
Basil the 1955 series II
![Image](https://image.ibb.co/hrLO0J/DSCF8095_F.jpg)
![Image](https://image.ibb.co/hrLO0J/DSCF8095_F.jpg)
- Mr Spigot
- Minor Fan
- Posts: 166
- Joined: Mon Sep 13, 2021 2:44 pm
- Location: East Sussex
- MMOC Member: Yes
Re: Smiths battery gauge

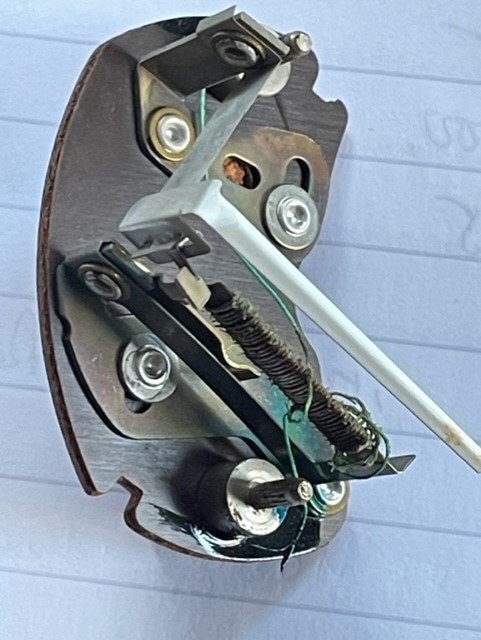

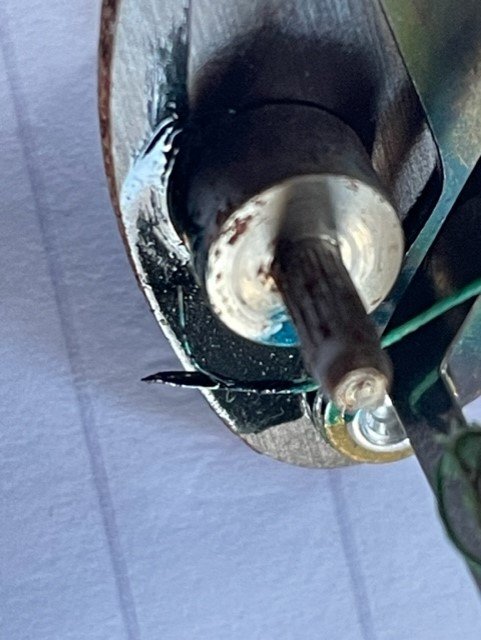

Well I finally got round to taking this off and, sure enough, one end of the wire had become disconnected, breaking the circuit. I looked at the link http://www.jensenhealey.com/forums/view ... forum_id=7 which shows a similar problem. As he found out, the wire is very fine and while I could try soldering it, he had to use a heat shrunk sleeve to hold the wire against the post. I could try this but does anyone have any other suggestions?
- Attachments
-
- broken wire 1.jpg (59.62 KiB) Viewed 1360 times
-
- broken wire 2.jpg (58.31 KiB) Viewed 1360 times
-
- broken wire 3.jpg (65.74 KiB) Viewed 1360 times
1960 2 door with 1275 Midget engine - WOI 577 - owned since 1990
1952 MM convertible with original engine - MWD 305 - owned since 2023
1952 MM convertible with original engine - MWD 305 - owned since 2023
- svenedin
- Minor Legend
- Posts: 1974
- Joined: Fri Aug 29, 2014 9:27 am
- Location: Surrey
- MMOC Member: Yes
Re: Smiths battery gauge
I’m not sure how the wire was originally secured or where it was attached. Maybe you could crimp on an uninsulated connector and solder that on to wherever it attaches?
1969 1098cc Convertible “Xavier” which I have owned since 1989.
Stephen
Stephen
- geoberni
- Minor Legend
- Posts: 3660
- Joined: Fri Aug 04, 2017 11:19 am
- Location: North Leicestershire
- MMOC Member: Yes
Re: Smiths battery gauge
As he found out, the wire was attached using as he put it 'a green enamel' and the terminal post is a huge heatsink.
Search for 'Conductive Wire Glue'. It might cost you £5 or more but really useful stuff for such problems.
Search for 'Conductive Wire Glue'. It might cost you £5 or more but really useful stuff for such problems.
Basil the 1955 series II
![Image](https://image.ibb.co/hrLO0J/DSCF8095_F.jpg)
![Image](https://image.ibb.co/hrLO0J/DSCF8095_F.jpg)
- svenedin
- Minor Legend
- Posts: 1974
- Joined: Fri Aug 29, 2014 9:27 am
- Location: Surrey
- MMOC Member: Yes
Re: Smiths battery gauge
Never heard of conductive wire glue. Looked it up. Clever idea! Must remember that.
1969 1098cc Convertible “Xavier” which I have owned since 1989.
Stephen
Stephen
- Mr Spigot
- Minor Fan
- Posts: 166
- Joined: Mon Sep 13, 2021 2:44 pm
- Location: East Sussex
- MMOC Member: Yes
Re: Smiths battery gauge

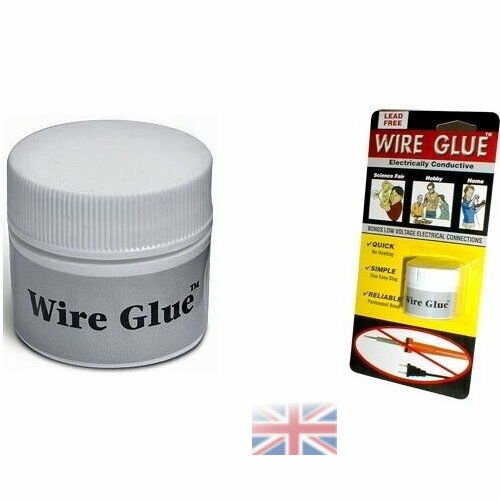

Many thanks! I have just ordered a small pot (9ml) for £7. That will save a lot of fuss and swearing with a soldering iron!
- Attachments
-
- Wire glue.jpg (28.19 KiB) Viewed 1345 times
1960 2 door with 1275 Midget engine - WOI 577 - owned since 1990
1952 MM convertible with original engine - MWD 305 - owned since 2023
1952 MM convertible with original engine - MWD 305 - owned since 2023
- Mr Spigot
- Minor Fan
- Posts: 166
- Joined: Mon Sep 13, 2021 2:44 pm
- Location: East Sussex
- MMOC Member: Yes
Re: Smiths battery gauge
Well, I finally got round to attending to this and cleaned up the end of the wire and scraped the old enamel off the post and used the wire glue to stick the wire back on the post and applied a small drop of Superglue afterwards to make sure. The trickiest part was getting it all back together in the right order, but having replaced the glass seal with a new one and replaced the bezel, I connected it up to a battery and the needle moved up to the 12v point. I shall now have to connect it up in the car and try it with the engine running but so far so good.
1960 2 door with 1275 Midget engine - WOI 577 - owned since 1990
1952 MM convertible with original engine - MWD 305 - owned since 2023
1952 MM convertible with original engine - MWD 305 - owned since 2023
-
- Minor Legend
- Posts: 1679
- Joined: Thu May 12, 2016 6:33 am
- MMOC Member: No
Re: Smiths battery gauge
Well done for both persevering, and for reporting back after making the fix. Many don’t bother and when the same symptoms arise for another owner, they have to start the process from scratch.
