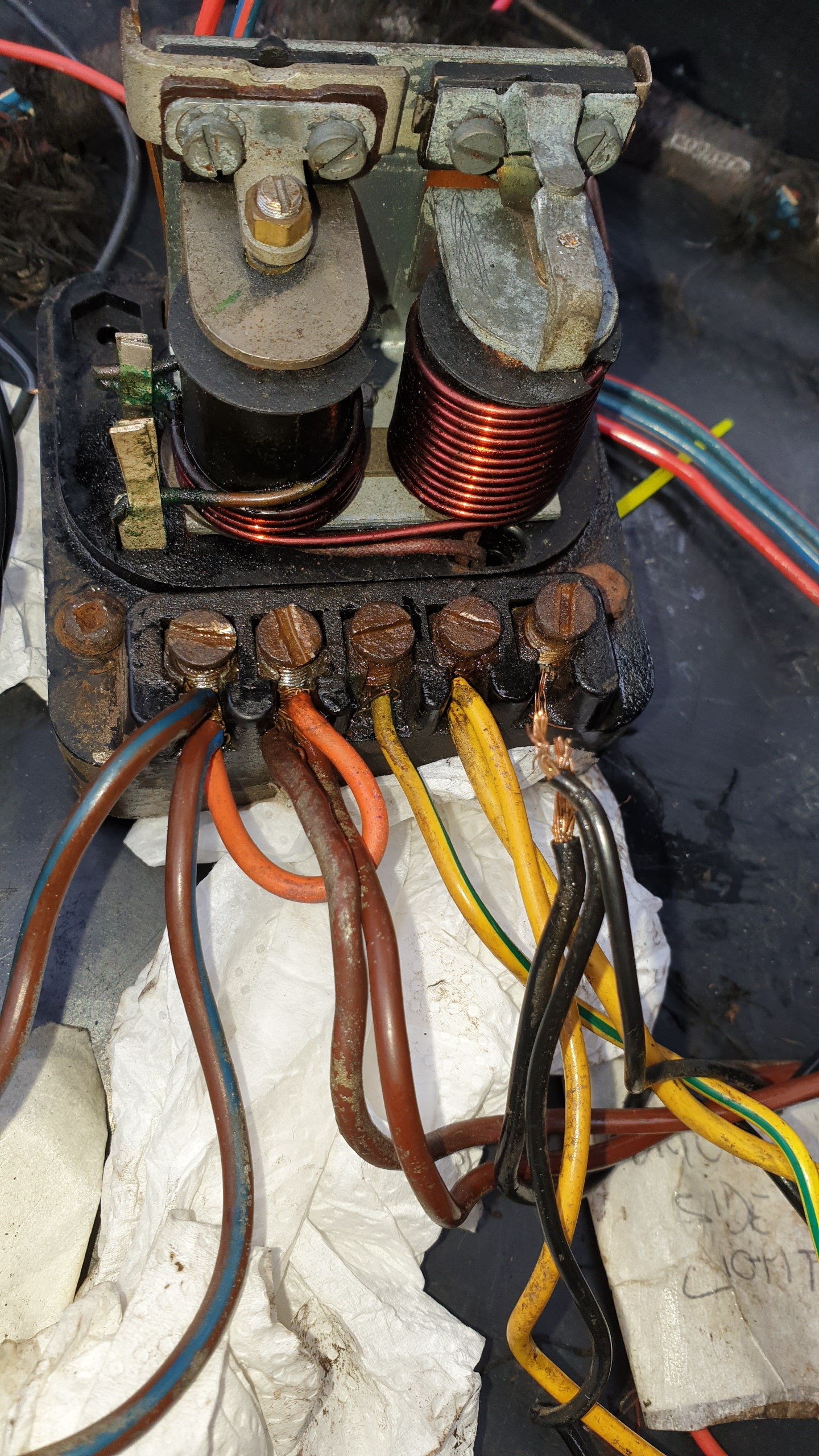

I've stripped the old wiring on my dynamo positive earth system and the RG106 control box terminals A and A1 are connected together. Is this correct?
Control Box Terminals A & A1
Forum rules
By using this site, you agree to our rules. Please see: Terms of Use
By using this site, you agree to our rules. Please see: Terms of Use
- geoberni
- Minor Legend
- Posts: 3631
- Joined: Fri Aug 04, 2017 11:19 am
- Location: North Leicestershire
- MMOC Member: Yes
Re: Control Box Terminals A & A1

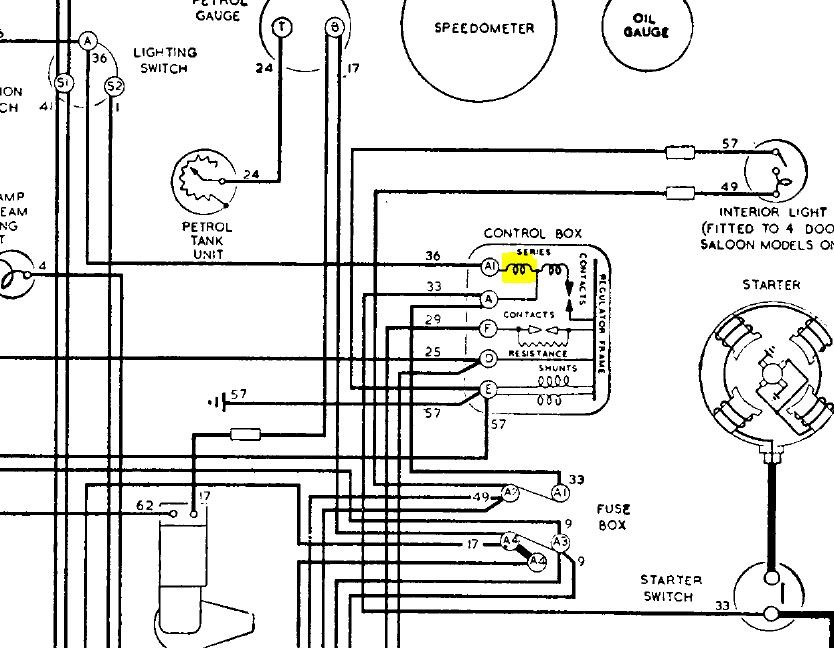

No it's not. Internally, they are connected via the Regulator Series Coil, so putting that link there has bypassed it..... See diagram.
. I can't think what the effect would be, but it must be something....
. I can't think what the effect would be, but it must be something....
Basil the 1955 series II
-
- Minor Legend
- Posts: 2558
- Joined: Tue Jan 29, 2013 10:32 pm
- Location: Kernow
- MMOC Member: Yes
Re: Control Box Terminals A & A1
...and somebody must have had a reason for doing it - but I can't think what......
