anti roll bar

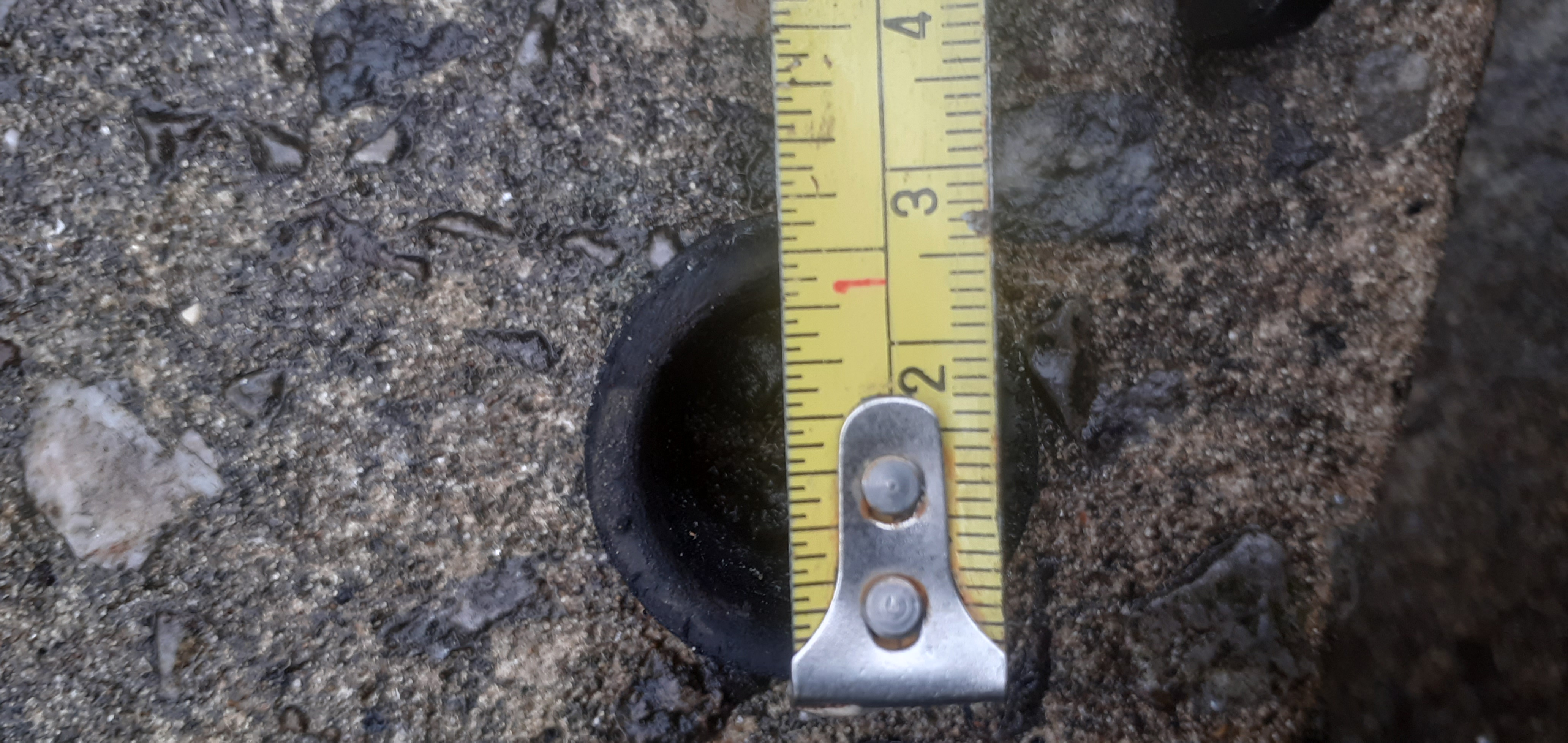

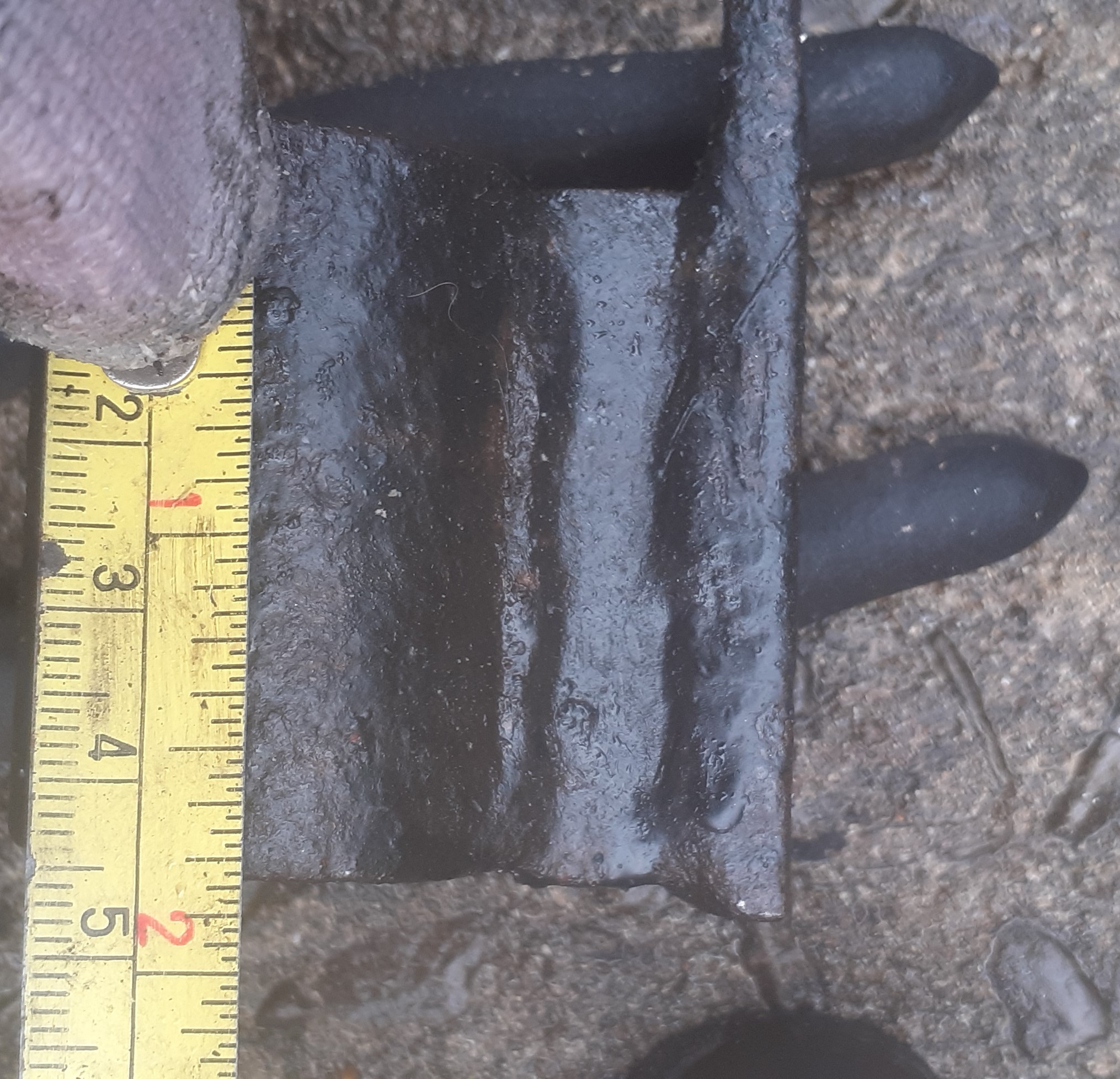

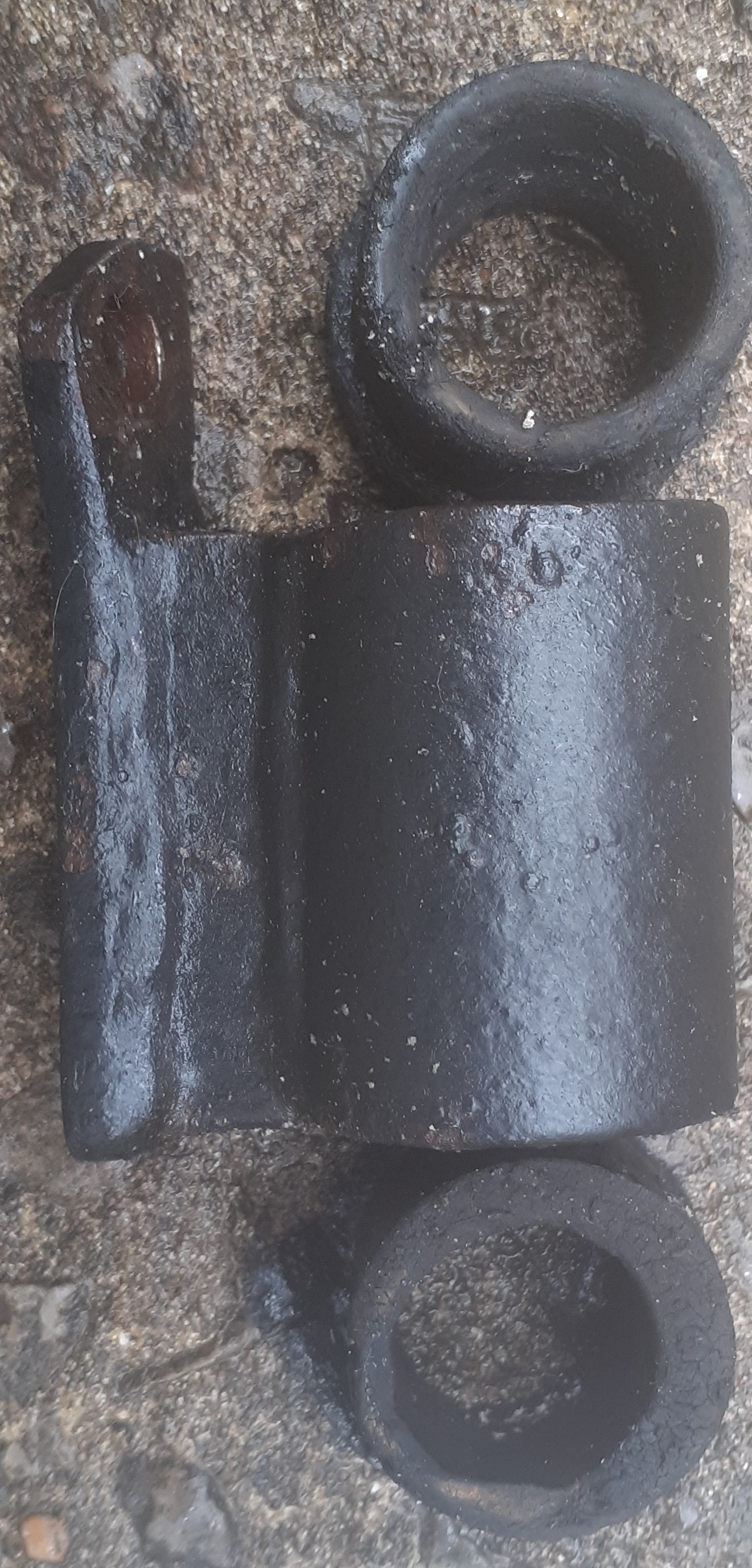

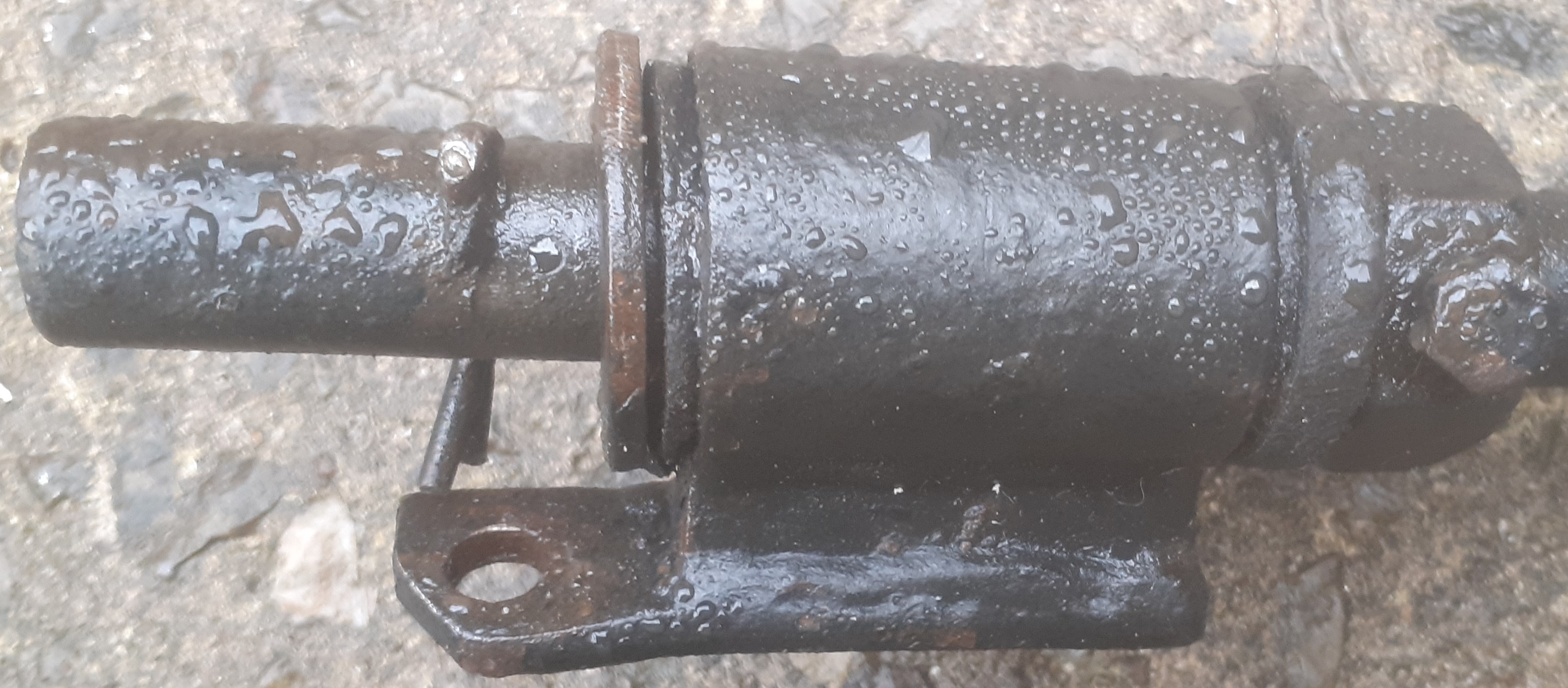

hi a while ago i was advised to get details of the bushes on the anti roll bar to try and get new parts.I have finally got the bar off after fitting some other bushes elsewhere.The metal barrel the bushes sit in is about 1 and 3/4 inch long.The bushes are about an inch long The metal barrel is about 4 1/2 inches around the outside and inner circumference is about 3 inches.The bushes have a shoulder and touch inside the barrel as they are 2 inches in total.Hope to renew these.
- Attachments
-
- 20211007_110314 (2).jpg (762.24 KiB) Viewed 1743 times
-
- 20211007_110636.jpg (1.57 MiB) Viewed 1743 times
-
- 20211007_110607.jpg (3.3 MiB) Viewed 1743 times
-
- 20211007_111403 (2).jpg (862.58 KiB) Viewed 1743 times
-
- 20211007_111213 (2).jpg (799.5 KiB) Viewed 1743 times
-
- Minor Maniac
- Posts: 10819
- Joined: Thu Jul 19, 2012 12:05 pm
- Location: Hampshire
- MMOC Member: Yes
Re: anti roll bar
The anti roll bar is a Minor Mania item.
You could try Minor eye bolt bushes.
The Minor eye bolt bush is 7/8" O.D. has an I.D. of 1/2" and is 11/16" long excluding the head.
I would use poly bushes. The bush does not have to fill the whole length of the bush tube.
You could try Minor eye bolt bushes.
The Minor eye bolt bush is 7/8" O.D. has an I.D. of 1/2" and is 11/16" long excluding the head.
I would use poly bushes. The bush does not have to fill the whole length of the bush tube.
-
- Minor Addict
- Posts: 671
- Joined: Mon Dec 28, 2020 1:56 pm
- Location: Pontypridd
- MMOC Member: Yes
Re: anti roll bar
Thank you Phil any idea where to get them please
-
- Minor Maniac
- Posts: 10819
- Joined: Thu Jul 19, 2012 12:05 pm
- Location: Hampshire
- MMOC Member: Yes
-
- Minor Addict
- Posts: 671
- Joined: Mon Dec 28, 2020 1:56 pm
- Location: Pontypridd
- MMOC Member: Yes
Re: anti roll bar
Will I need any gaskets for the job please
-
- Minor Maniac
- Posts: 10819
- Joined: Thu Jul 19, 2012 12:05 pm
- Location: Hampshire
- MMOC Member: Yes
-
- Minor Addict
- Posts: 671
- Joined: Mon Dec 28, 2020 1:56 pm
- Location: Pontypridd
- MMOC Member: Yes
Re: anti roll bar
Sorry my fault I meant any gaskets for the engine breather job please
-
- Minor Maniac
- Posts: 10819
- Joined: Thu Jul 19, 2012 12:05 pm
- Location: Hampshire
- MMOC Member: Yes
-
- Minor Addict
- Posts: 671
- Joined: Mon Dec 28, 2020 1:56 pm
- Location: Pontypridd
- MMOC Member: Yes
Re: anti roll bar
Thanks again for your help Phil
-
- Minor Addict
- Posts: 671
- Joined: Mon Dec 28, 2020 1:56 pm
- Location: Pontypridd
- MMOC Member: Yes
Re: anti roll bar

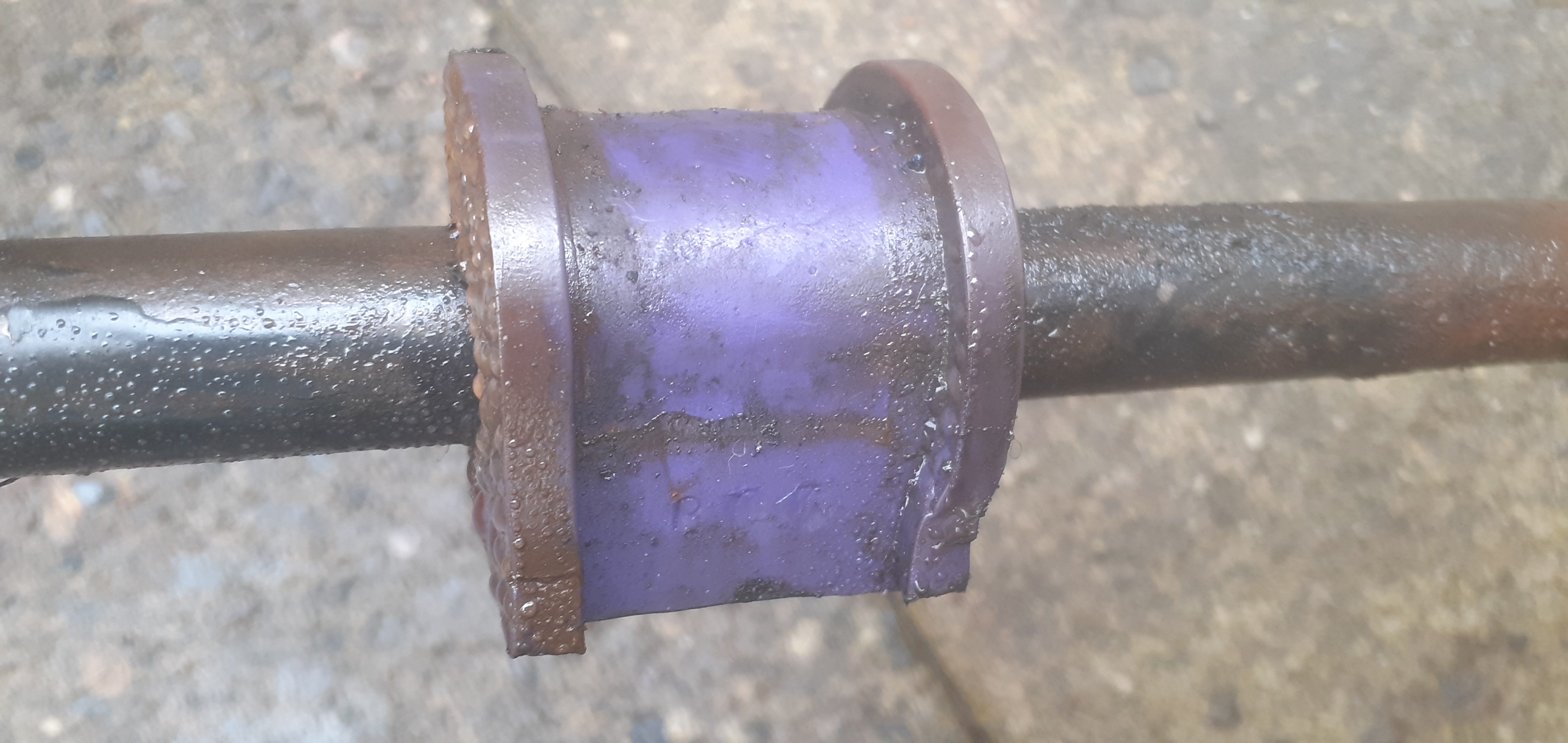

Can you please advise the type of these and where to get them as I may as well change them as well
- Attachments
-
- 20211007_111515.jpg (1.99 MiB) Viewed 1572 times
-
- Minor Maniac
- Posts: 10819
- Joined: Thu Jul 19, 2012 12:05 pm
- Location: Hampshire
- MMOC Member: Yes
Re: anti roll bar
What is the outside diameter of the anti-roll bar?
There are various diameter bushes for sale on 'e' bay.
There are various diameter bushes for sale on 'e' bay.
-
- Minor Addict
- Posts: 671
- Joined: Mon Dec 28, 2020 1:56 pm
- Location: Pontypridd
- MMOC Member: Yes
Re: anti roll bar
Thank you Phil the bar is two and a half inches around.
Re: anti roll bar
That sounds like the circumference rather than the diameter ! Divide that by 3.142.
-
- Minor Maniac
- Posts: 10819
- Joined: Thu Jul 19, 2012 12:05 pm
- Location: Hampshire
- MMOC Member: Yes
Re: anti roll bar
Here are some anti-roll bar mount bushes - I would suggest that the bar is 3/4" outside diameter (cross section) and Ford derived.
With the listing below you need to specify the size you require.
https://www.ebay.co.uk/itm/231307476554 ... SwPMZeUTsC
With the listing below you need to specify the size you require.
https://www.ebay.co.uk/itm/231307476554 ... SwPMZeUTsC
-
- Minor Addict
- Posts: 671
- Joined: Mon Dec 28, 2020 1:56 pm
- Location: Pontypridd
- MMOC Member: Yes
Re: anti roll bar
Yes sorry Phil that was circumference .Will put an order in and get the job done.Thank you
-
- Minor Fan
- Posts: 150
- Joined: Thu Aug 18, 2005 4:31 am
- Location: Melbourne, Australia
- MMOC Member: No
Re: anti roll bar
I've got the same anti roll bar on my traveller.
The bushes are the same size as the van bushes.
I fitted poly ones to mine.
Cheers
Moray
The bushes are the same size as the van bushes.
I fitted poly ones to mine.
Cheers
Moray
-
- Minor Maniac
- Posts: 10819
- Joined: Thu Jul 19, 2012 12:05 pm
- Location: Hampshire
- MMOC Member: Yes
Re: anti roll bar
moray
Just to clarify -
Is your anti-roll bar a Minor Mania item?
Which van bush is the same size?
(the rear spring front eye possibly? https://www.ebay.co.uk/itm/174080061527 ... SwCDxduChY)
Which poly bushes did you use?
https://www.ebay.co.uk/itm/160680029154 ... 101224.m-1
Just to clarify -
Is your anti-roll bar a Minor Mania item?
Which van bush is the same size?
(the rear spring front eye possibly? https://www.ebay.co.uk/itm/174080061527 ... SwCDxduChY)
Which poly bushes did you use?
https://www.ebay.co.uk/itm/160680029154 ... 101224.m-1
Re: anti roll bar
That's a polybush you have fitted, the purple one means it is probably made by 'Powerflex' and from their universal types.
It isn't worn, so unless you like burning money, there is no reason to change it.
It isn't worn, so unless you like burning money, there is no reason to change it.
-
- Minor Maniac
- Posts: 10819
- Joined: Thu Jul 19, 2012 12:05 pm
- Location: Hampshire
- MMOC Member: Yes
Re: anti roll bar
You may be right about the anti-roll bar mounts
https://powerflexstore.co.uk/mg/zr-2001 ... 63-404-19/
The bushes in the tubes at the end of the anti-roll bar though are worn and they do need to be replaced preferably with poly bushes.
https://powerflexstore.co.uk/mg/zr-2001 ... 63-404-19/
The bushes in the tubes at the end of the anti-roll bar though are worn and they do need to be replaced preferably with poly bushes.
