Boot floor screws or bolt size.

Post by greendefender123 »

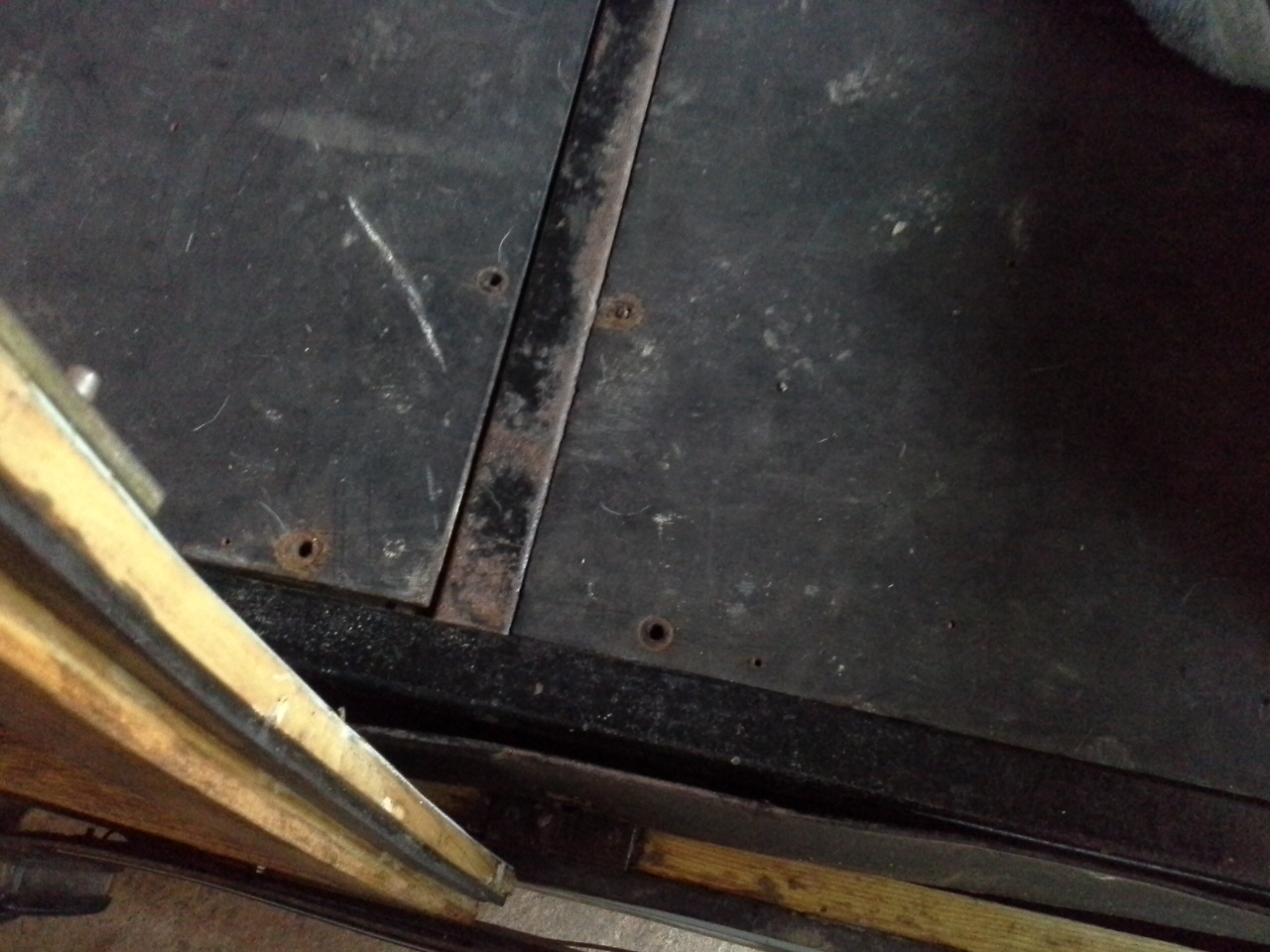

Hello Could someone please advise the size of the bolts or screws that hold the rear floor in. They were gone before I got it.

Thanks alot Steve
IslipMinor
Minor Legend
Posts: 2147
Joined: Mon May 10, 2004 9:10 pm
MMOC Member: Yes

Re: Boot floor screws or bolt size.

Post by IslipMinor »

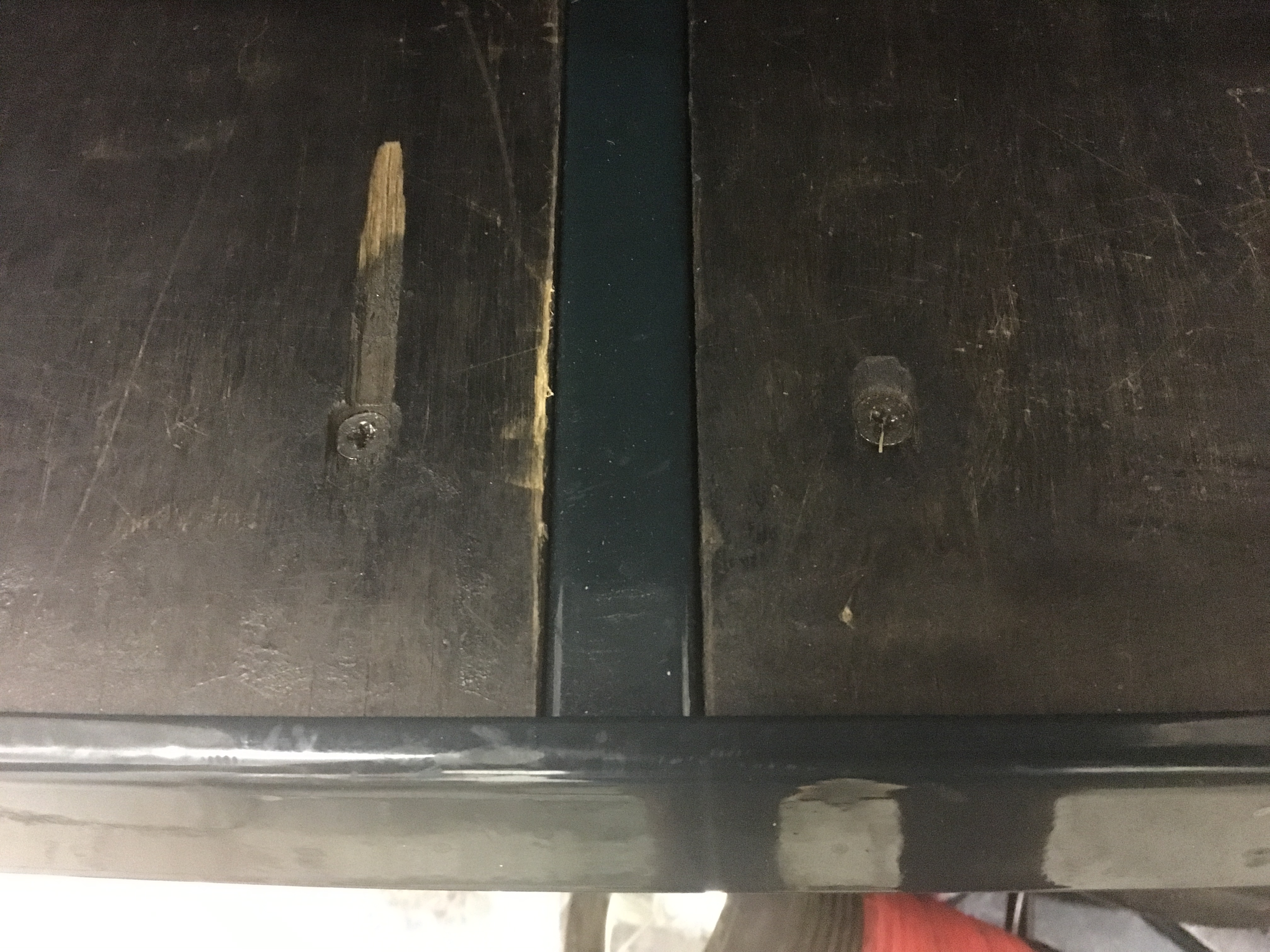

There are 2 x self-tapping screws and 10 x 2BA screws x 5/8" long, with a Phillips drive countersink head - see the photo below (on a saloon):
Also fit a spring washer between the nut and the support frame.
Richard


greendefender123
Minor Addict
Posts: 745
Joined: Mon Jul 27, 2015 6:10 pm
MMOC Member: No

Re: Boot floor screws or bolt size.

Post by greendefender123 »

Proper job thanks.
