Traveller rear roof gutters.

Post by greendefender123 »

Hello im gonna be fitting/attempting to fit the aluminium gutters tomorrow. Iv read a couple of things on doing it but im still a nervous about it. Any extra advice would be handy and should boost my confidence.

Thanks Steven
DAVIDMCCULLOUGH
Minor Legend
Posts: 3010
Joined: Sun Sep 09, 2007 10:42 pm
Location: Whiteabbey, Co Antrim
MMOC Member: Yes

Re: Traveller rear roof gutters.

Post by DAVIDMCCULLOUGH »

I did mine back in 2009. One side isnt so good, the first on I put on and the other side is tidier! Worst part is knowing how much to cut away at the rear corner were it allows the water to come out. Longdog sent me a good picture on my restoration page

viewtopic.php?f=28&t=23756&start=20

Its a matter of taking your time as the gutter is very soft and easily kinked. I found on the corner a couple of little nicks cut out of the edge help you get it around the corner. I bought copper panels pins to hold it down, these needed tiny pilot holes drilling or these just bent in the ash as you knocked them in.

Lastly when you bending the edge over to cover the nails use a piece of soft wood and dont expcet it to go down in one go! Patience again

Good luck :D


Too many Minors so little time.....
greendefender123
Minor Addict
Posts: 762
Joined: Mon Jul 27, 2015 6:10 pm
Location: Brompton Regis nrDulverton
MMOC Member: No

Re: Traveller rear roof gutters.

Post by greendefender123 »

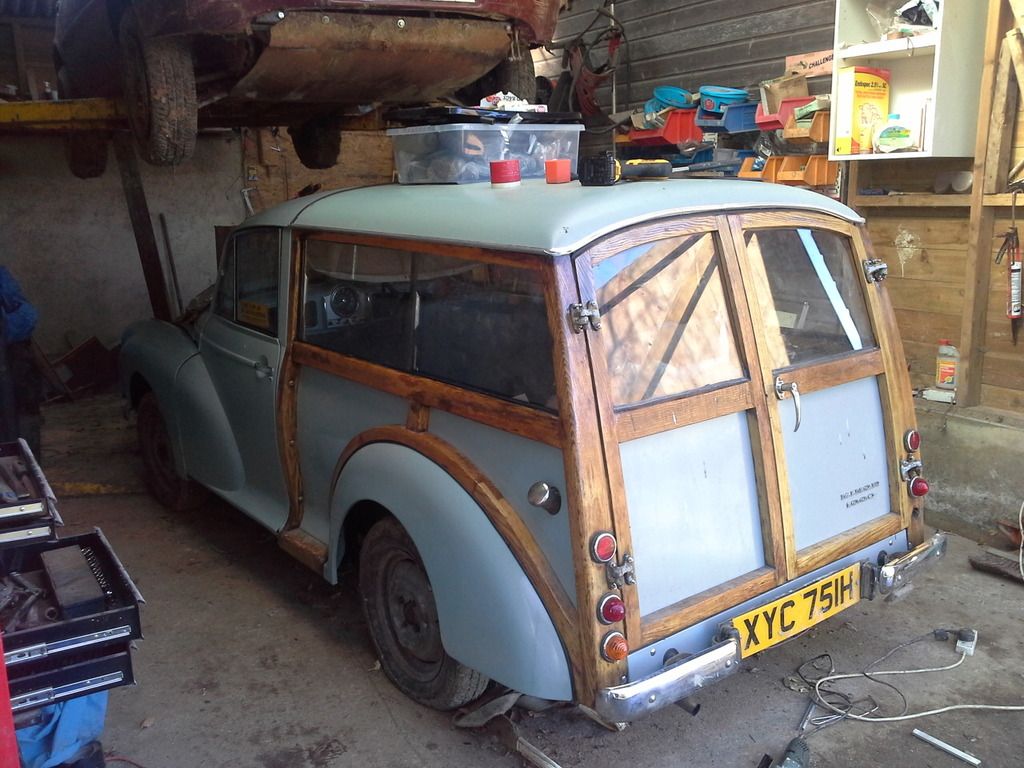

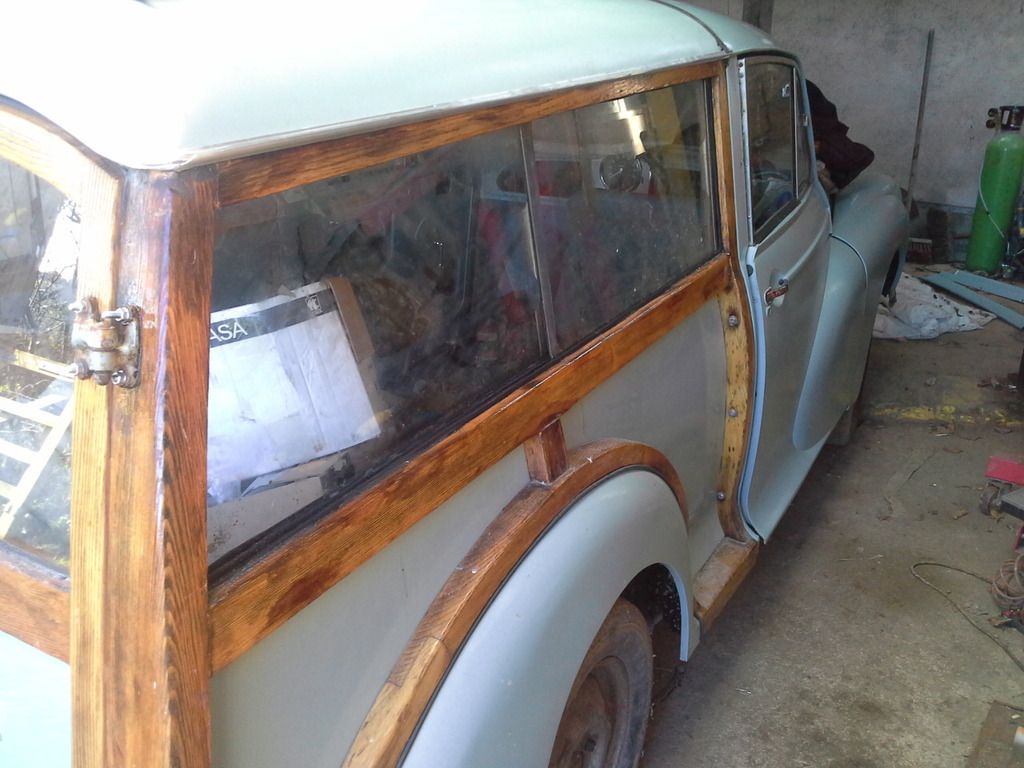

Thanks david. The gutters are on. Was quite tricky. Unfortunately I muffed up the drain cutouts. Hopefully I can clean them up with a Dremel. But apart from that I'm very happy and another job done. I wont be painting it till later on in the year iv got other bits to touch up aswell.
greendefender123
Minor Addict
Posts: 762
Joined: Mon Jul 27, 2015 6:10 pm
Location: Brompton Regis nrDulverton
MMOC Member: No

Re: Traveller rear roof gutters.

Post by greendefender123 »
