Page 2 of 4
Re: Fitting new brakes and cylinders
Posted: Tue Nov 11, 2025 2:42 pm
by ttwlr
Fitted both rears, and what a pain, anyway, do they look correct, ? I'm unable to get either drum back on, I loosen the handbrake inside but still not having it
svenedin wrote: ↑Sat Nov 08, 2025 11:54 am
ttwlr wrote: ↑Sat Nov 08, 2025 11:23 am
Thank for feedback, I'm just glad it went on it the end lol
Not done rears yet, looking to do them Sunday
Good luck. I find the rears considerably more difficult than the front. The pull-off springs are very strong and the beehive springs are an absolute pain to fit. Allow more time than on the front.
I found that after replacing the cylinders (but not the shoes as well) that the handbrake needed adjusting. See workshop manual for how to adjust the handbrake correctly if required.
Stephen

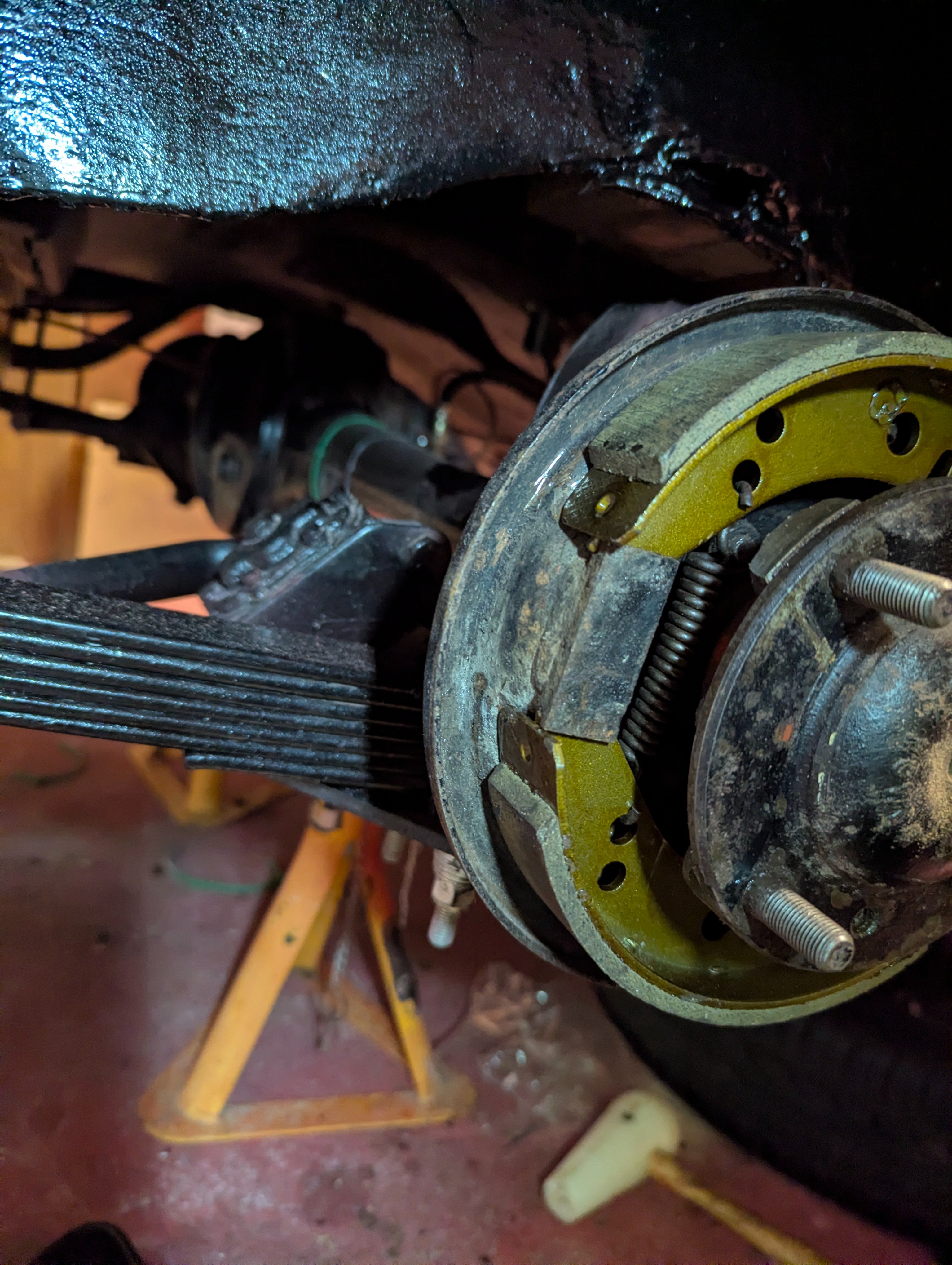

- PXL_20251111_143400902.jpg (1.74 MiB) Viewed 12249 times
- PXL_20251111_143355362.jpg (1.79 MiB) Viewed 12249 times
- PXL_20251111_143345659.jpg (1.9 MiB) Viewed 12249 times
Re: Fitting new brakes and cylinders
Posted: Tue Nov 11, 2025 3:09 pm
by svenedin
The handbrake cable should be disconnected from the lever on the cylinder. It is very important that the handbrake has no influence whatsoever over the correct adjustment of the shoes.
The rear brakes differ from the front not only in that there is only one cylinder but the front has two leading shoes whereas the rear has a leading and a trailing shoe. This is so that you have some braking when travelling in reverse.
You need to make sure that the spindle of the adjuster has gone fully into the notch in the brake shoe, that the piston is fully retracted and that the shoe is sitting centrally.
For a diagram of the correct fitting see the workshop manual AKD 530 figure M22
I think your upper shoe is correct and the bottom shoe is incorrect (in a set of 4 shoes, 2 of the shoes have a notch for the adjuster spindle ).
Stephen
Re: Fitting new brakes and cylinders
Posted: Tue Nov 11, 2025 3:16 pm
by ttwlr
The rear shoes had no notch at all, just one end is thinner, I got it all from ESM.
I got Lockheed fronts and Delphi rears and told them I want shoes to go with it, fronts had a notch but not the rears ?
svenedin wrote: ↑Tue Nov 11, 2025 3:09 pm
The handbrake cable should be disconnected from the lever on the cylinder. It is very important that the handbrake has no influence whatsoever over the correct adjustment of the shoes.
The rear brakes differ from the front not only in that there is only one cylinder but the front has two leading shoes whereas the rear has a leading and a trailing shoe. This is so that you have some braking when travelling in reverse.
You need to make sure that the spindle of the adjuster has gone fully into the notch in the brake shoe, that the piston is fully retracted and that the shoe is sitting centrally.
For a diagram of the correct fitting see the workshop manual AKD 530 figure M22
I think your upper shoe is correct and the bottom shoe is incorrect (in a set of 4 shoes, the shoes with a notch for the adjuster are handed) but I admit this always confuses me and I have to triple check.
Stephen
Re: Fitting new brakes and cylinders
Posted: Tue Nov 11, 2025 3:26 pm
by svenedin
This is the same side as your pictures. Can you see the leading shoe and the trailing shoe? Yours are both leading. You have the wrong bottom shoe fitted. Keep the top shoe as is.
- IMG_1669.jpeg (1.64 MiB) Viewed 12231 times
Re: Fitting new brakes and cylinders
Posted: Tue Nov 11, 2025 3:28 pm
by geoberni
As Stephen explained, the shoes look the same until you look closely.
The Lower one each side has the notch for the adjuster. The Upper does not.
This image is from the ESM website....
If you haven't made a mistake and there is truly no notch in 2 of the shoes, then contact ESM as they are faulty.
.
- B Shoes.JPG (41.29 KiB) Viewed 12230 times
https://youtu.be/5XvsiSskLg0?t=112
Re: Fitting new brakes and cylinders
Posted: Tue Nov 11, 2025 3:45 pm
by ttwlr
I'm going to remove the shoes as I'm positive there's no notch In any of them.
I'll post a picture of them.
geoberni wrote: ↑Tue Nov 11, 2025 3:28 pm
As Stephen explained, the shoes look the same until you look closely.
The Lower one each side has the notch for the adjuster. The Upper does not.
This image is from the ESM website....
If you haven't made a mistake and there is truly no notch in 2 of the shoes, then contact ESM as they are faulty.
.
B Shoes.JPG
https://youtu.be/5XvsiSskLg0?t=112
Re: Fitting new brakes and cylinders
Posted: Tue Nov 11, 2025 3:50 pm
by svenedin
Ok. If no notches the parts you were supplied are incorrect!
Stephen
Re: Fitting new brakes and cylinders
Posted: Tue Nov 11, 2025 3:51 pm
by ttwlr

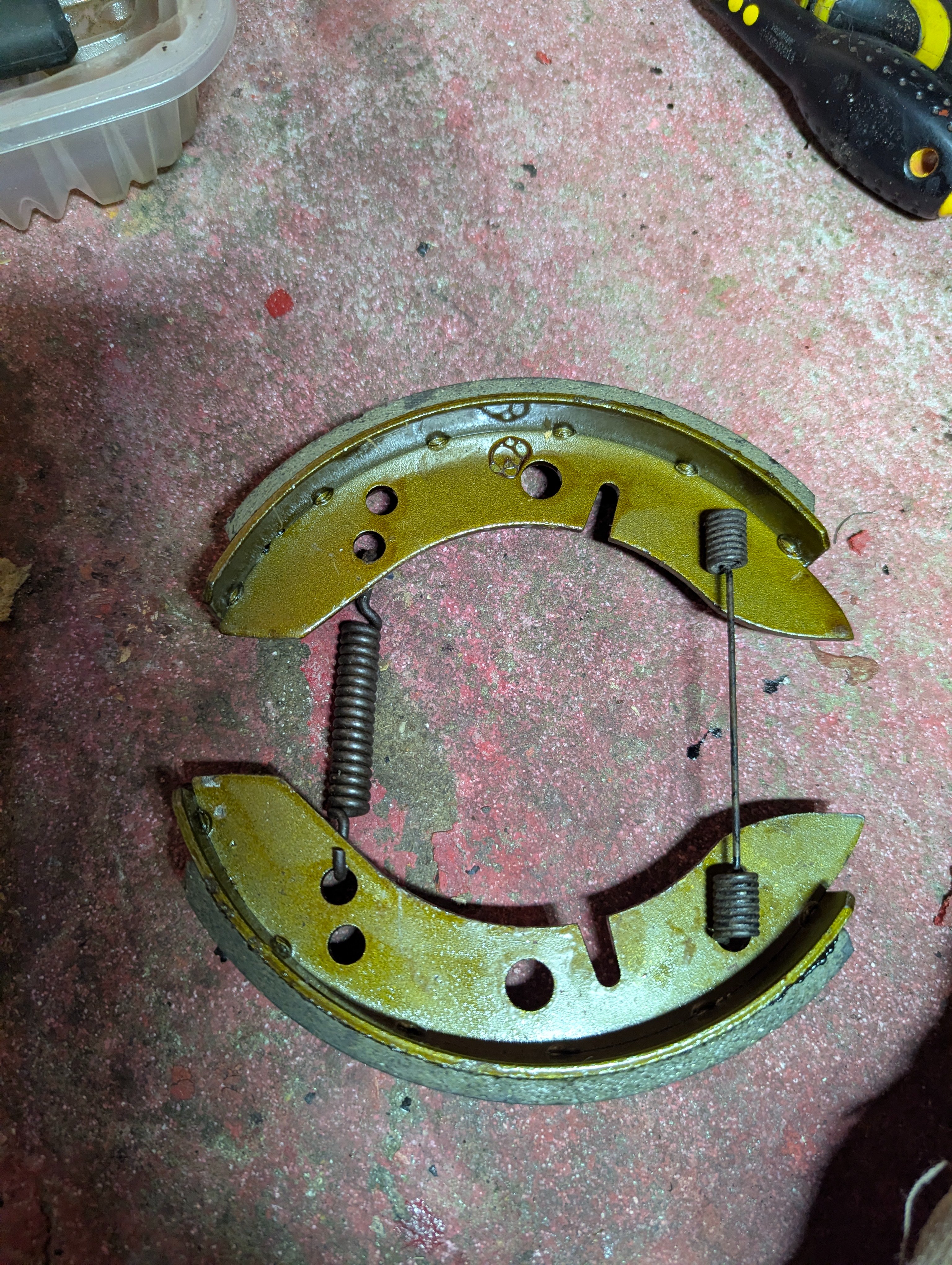

- PXL_20251111_154937699.jpg (2.77 MiB) Viewed 12208 times
This is how both rears are
Re: Fitting new brakes and cylinders
Posted: Tue Nov 11, 2025 3:59 pm
by ttwlr

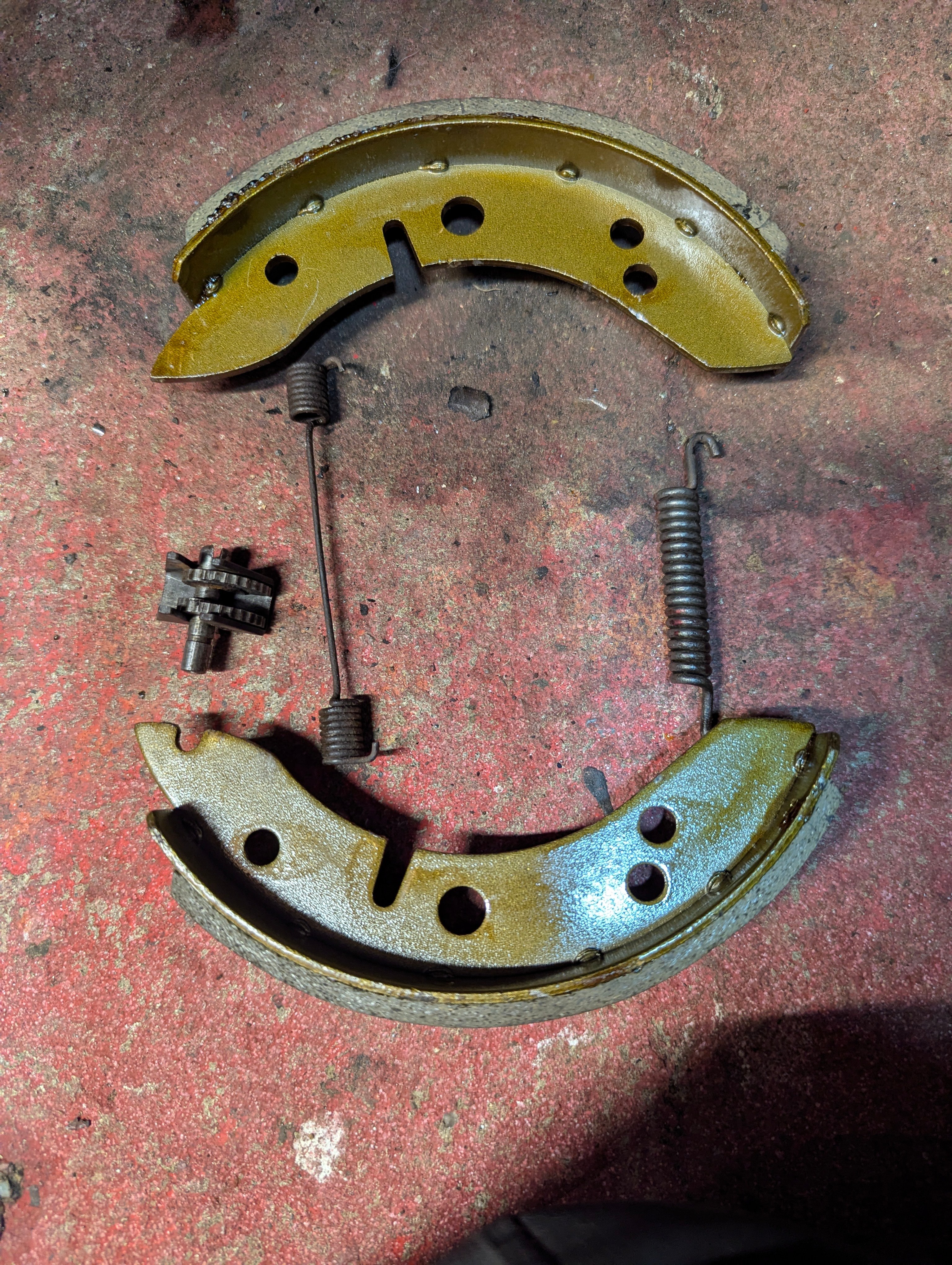

Turns out that some numpty had put both slot ones on other wheel,
Hanging my head in shame, sorry guys
- PXL_20251111_155559576.jpg (3.26 MiB) Viewed 12202 times
svenedin wrote: ↑Tue Nov 11, 2025 3:50 pm
Ok. If no notches the parts you were supplied are incorrect!
Stephen
Re: Fitting new brakes and cylinders
Posted: Tue Nov 11, 2025 4:34 pm
by geoberni
ttwlr wrote: ↑Tue Nov 11, 2025 3:59 pm
Turns out that some numpty had put both slot ones on other wheel,
Hanging my head in shame, sorry guys
Easy mistake to make, that's why I put the image up to illustrate the point.
Re: Fitting new brakes and cylinders
Posted: Tue Nov 11, 2025 4:41 pm
by ttwlr
I'll put them on properly tomorrow, thank you Steven and Bernie.
Re: Fitting new brakes and cylinders
Posted: Tue Nov 11, 2025 4:42 pm
by svenedin
Not to worry. Mistake spotted!
Stephen
Re: Fitting new brakes and cylinders
Posted: Tue Nov 11, 2025 5:16 pm
by Bill_qaz
Every day is a learning day
Re: Fitting new brakes and cylinders
Posted: Tue Nov 11, 2025 5:29 pm
by ttwlr
Bill_qaz wrote: ↑Tue Nov 11, 2025 5:16 pm
Every day is a learning day
Very true bill, never done it before so I definitely won't make this mistake again, I'm just thankful of forums like this.
Re: Fitting new brakes and cylinders
Posted: Wed Nov 12, 2025 11:55 am
by ttwlr

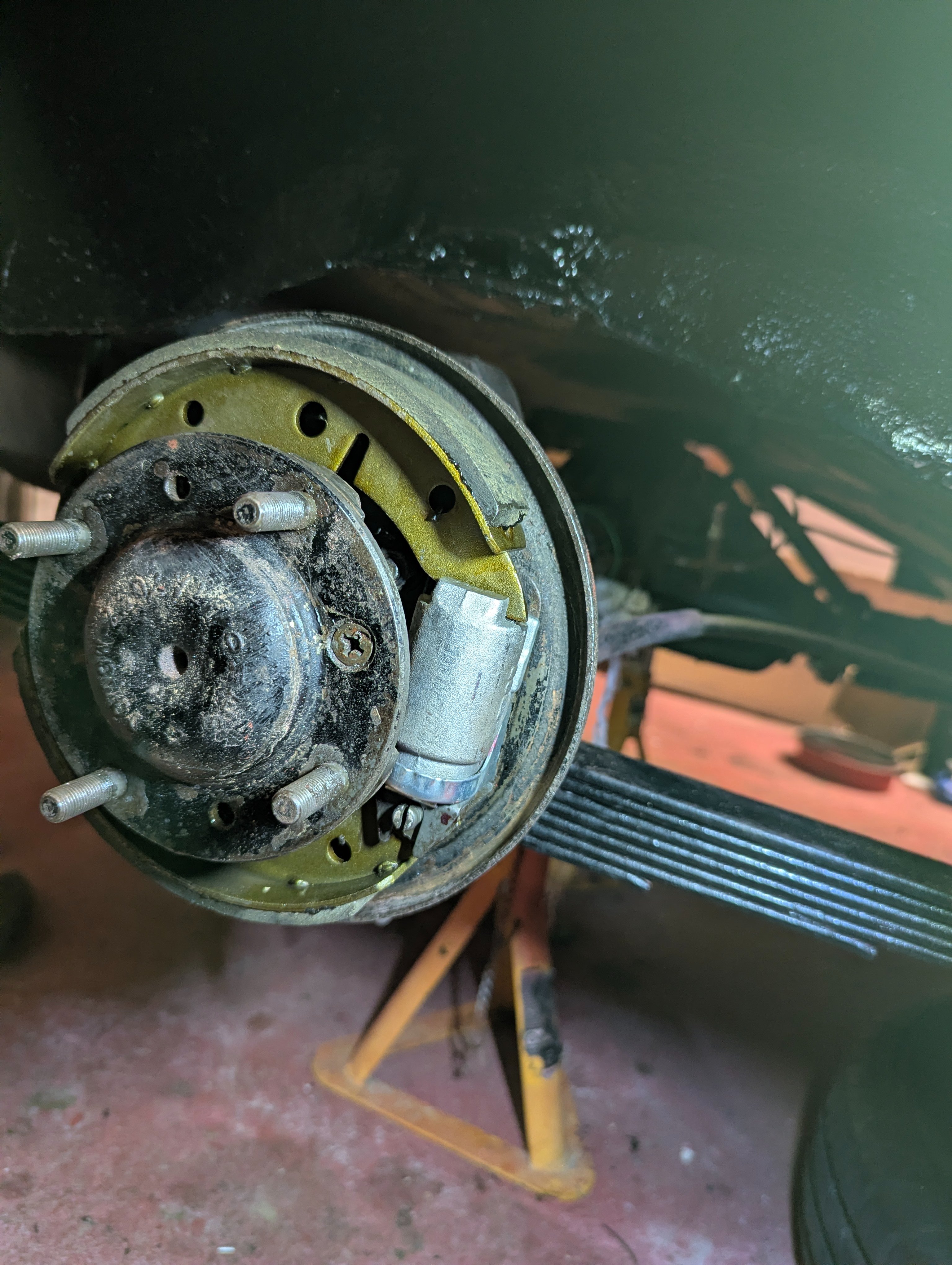

- PXL_20251112_113838778.jpg (1.71 MiB) Viewed 12104 times
Now done correctly I hope
Re: Fitting new brakes and cylinders
Posted: Wed Nov 12, 2025 12:13 pm
by svenedin
From what I can see, that is now correct.
The shoe with a notch (bottom shoe) can only go one way due to the notch. The top shoe can be fitted incorrectly but look at the ends of the top shoe. They are not the same. One end is flat and the other end has more of a curve to it. The more curvy end goes against the cylinder, the flatter end goes on the fixed abutment pad on the backplate. When correct the anti-brake squeal notches in the shoes line up.
The correct fitting of the top shoes is important for the assembly to have a leading and a trailing shoe. If incorrect you'll have next to no braking when travelling in reverse!
Workshop manual figure M22
Do download the workshop manual AKD 530. It is a free download and you can print off pages for whatever job you happen to be doing.
Stephen
Re: Fitting new brakes and cylinders
Posted: Wed Nov 12, 2025 12:43 pm
by Bill_qaz

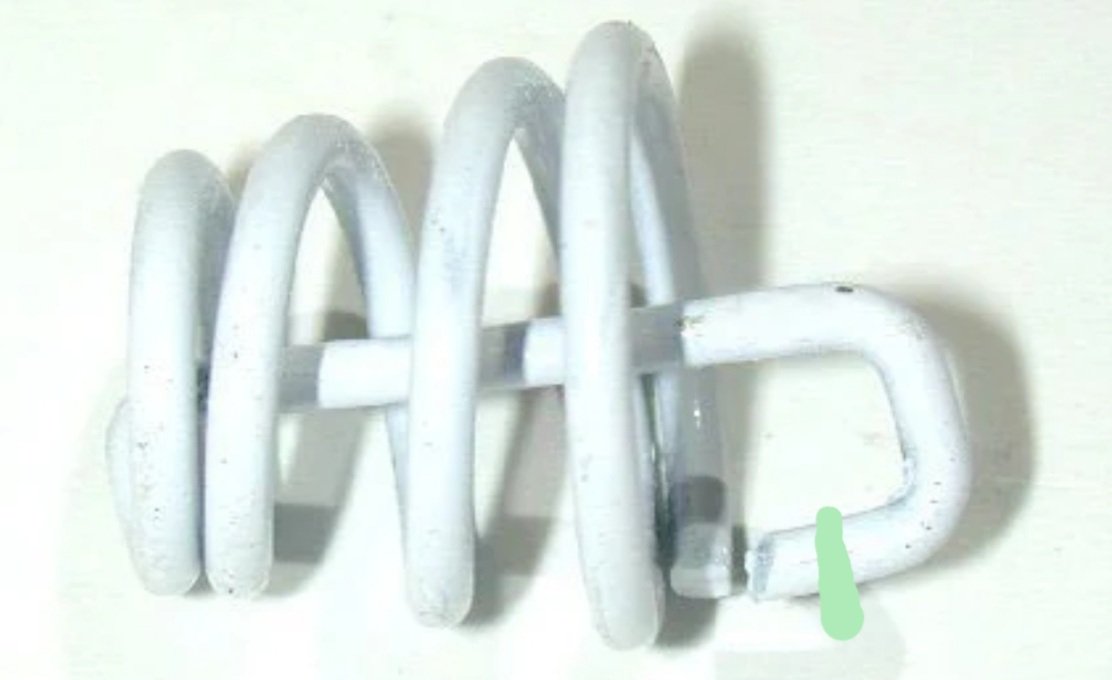

If you are replacing the beehive springs, the hooks on replacements are too long. Put them in vice or vive grips and use a hacksaw to shorten the hook, it makes fitting much easier, more like originals.
- Screenshot_20251112-123830_Google.jpg (50.42 KiB) Viewed 12080 times
Re: Fitting new brakes and cylinders
Posted: Wed Nov 12, 2025 12:53 pm
by svenedin
Bill_qaz wrote: ↑Wed Nov 12, 2025 12:43 pm
If you are replacing the beehive springs, the hooks on replacements are too long. Put them in vice or vive grips and use a hacksaw to shorten the hook, it makes fitting much easier, more like originals.
Good tip Bill.
If you have a Dremel tool with a cutting disc you can modify these very easily.
Stephen
Re: Fitting new brakes and cylinders
Posted: Wed Nov 12, 2025 1:31 pm
by geoberni
svenedin wrote: ↑Wed Nov 12, 2025 12:53 pm
Bill_qaz wrote: ↑Wed Nov 12, 2025 12:43 pm
If you are replacing the beehive springs, the hooks on replacements are too long. Put them in vice or vive grips and use a hacksaw to shorten the hook, it makes fitting much easier, more like originals.
Good tip Bill.
If you have a Dremel tool with a cutting disc you can modify these very easily.
Stephen
I brought a set from Andrew Eggleton last year, via his ebay account.
Here's a still from a video I took of fitting them but I've yet to edit it together for youtube.
Comparison of an old one that was flopping around loose, and the new one. The hook part looks slightly 'long' but I found no problem fitting them as the spring compresses well.
I agree the white painted ones look really over the top for hook length.
- Beehive.JPG (80.75 KiB) Viewed 12062 times
Re: Fitting new brakes and cylinders
Posted: Wed Nov 12, 2025 5:25 pm
by Bill_qaz

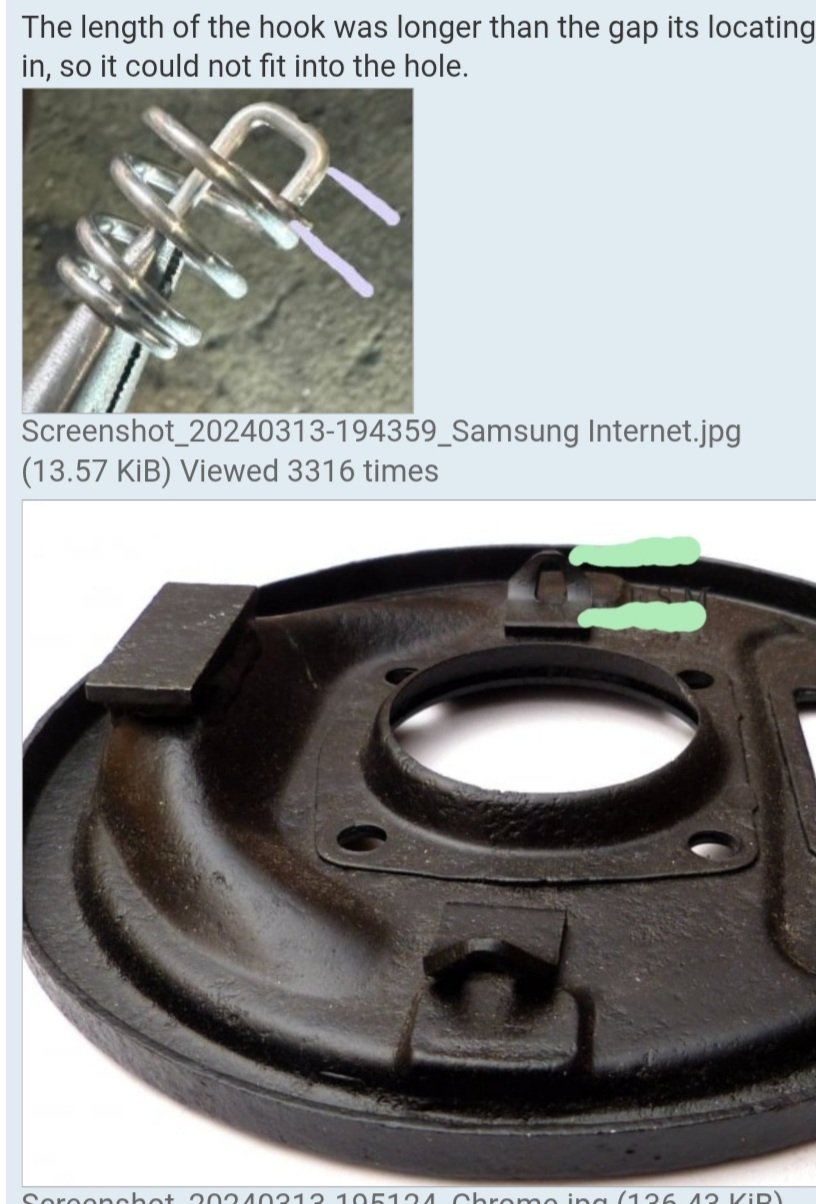

Yes Berni yours looked good, mine from a different supplier were impossible to fit as the open end of the hook was longer than the gap on backplate. I initially left them off as it had none fitted when i took it apart, so had no OE spring to compare with. Once I figured out the issue and shortened them they went on easily just using pliers.
- Screenshot_20251112-173611_Samsung Internet.jpg (127.46 KiB) Viewed 11992 times
It gets annoying how many of the pattern parts sold are either not to spec or poor quality. The problem with mail order is you can't see the item in the flesh and it's often is not what is shown in the description.
