Hi,
As per above posts, the spacer tube in the rear mounting hole should slide backwards and forwards to suit, if it doesn't give it a tap with a hammer to free it up.
Pack your front (6.3mm as quoted) space out with washers until all the pulleys for the fan belt all line up, it is important that this belt is lined up properly. I only need two washers on mine, using an ex-MGB Lucas alternator.
Best wishes,
Mike
Alternator and electronic ignition kits
Forum rules
By using this site, you agree to our rules. Please see: Terms of Use
By using this site, you agree to our rules. Please see: Terms of Use
-
jagnut66
- Minor Legend
- Posts: 3703
- Joined: Fri Apr 11, 2008 7:28 pm
- Location: Mansfield, Nottinghamshire.
- MMOC Member: Yes
Re: Alternator and electronic ignition kits
1954 Series 2: 4 door: "Sally" -- Back on the ground with (slave) wheels, now being sprayed by me, slowly......
1970 Triumph Herald 1200: "Hetty" -- Driven back from Llangollen in Wales (twice.....)
1952 Morris Minor MM highlight with sidevalve engine still fitted, wants work, so joins the queue for now......
1970 Triumph Herald 1200: "Hetty" -- Driven back from Llangollen in Wales (twice.....)
1952 Morris Minor MM highlight with sidevalve engine still fitted, wants work, so joins the queue for now......
-
Sleeper
- Minor Legend
- Posts: 1164
- Joined: Tue Nov 08, 2016 3:18 pm
- Location: Manchester ( Damp and Miserable ) and that's just the wife...
- MMOC Member: Yes
Re: Alternator and electronic ignition kits

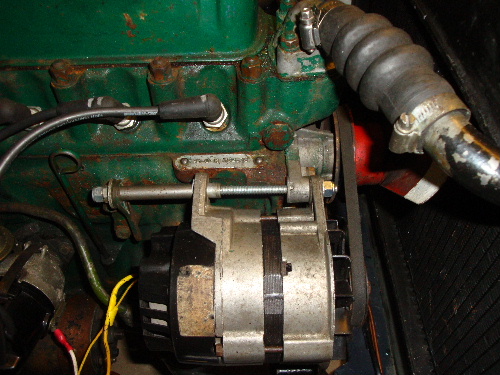

Forget the kit and get some screwed bar,here's mine
John
- 2017_0317jinges0001.JPG (116.37 KiB) Viewed 905 times
John
-
greendefender123
- Minor Addict
- Posts: 762
- Joined: Mon Jul 27, 2015 6:10 pm
- Location: Brompton Regis nrDulverton
- MMOC Member: No
Re: Alternator and electronic ignition kits
Now that's my kind of fix!Sleeper wrote:Forget the kit and get some screwed bar,here's mine
John
-
biomed32uk
- Minor Addict
- Posts: 630
- Joined: Mon Feb 03, 2014 5:16 pm
- Location: Gt Holland, Essex
- MMOC Member: Yes
Re: Alternator and electronic ignition kits
If the spacer or whatever it is at the rear is supposed to move I would get it moving as suggested, if it has gone tight and picked up then cranking the front bolt up could break the casting, its only ally and won't take too much stick.
