Hi

I'm trying to fit trafficators in my Traveller B posts but I'm missing the screws and captive nuts.

I'm guessing that the Phillips securing screws are 1/4" thread?

Do the captive nuts (or hank Bushes) fix in the pillar or in the mounting bracket?

poor quality pic attached I think indicates the bushes would be in the mounting brackets but mine dont have them?

Any pics or advise welcome

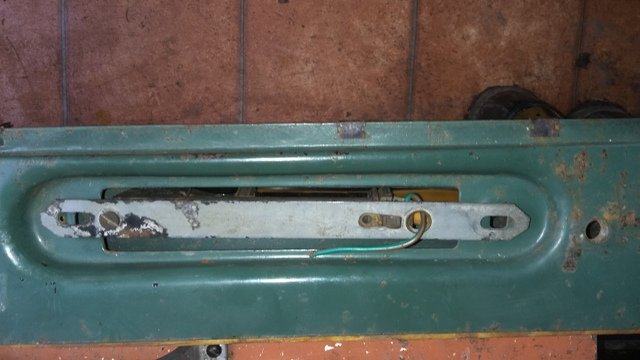

Trafficator Mounting (1).jpg (43.09 KiB) Viewed 37126 times

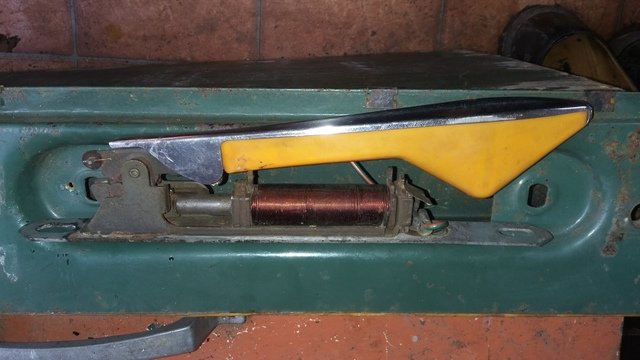

Trafficator Mounting (2).jpg (45.44 KiB) Viewed 37126 times

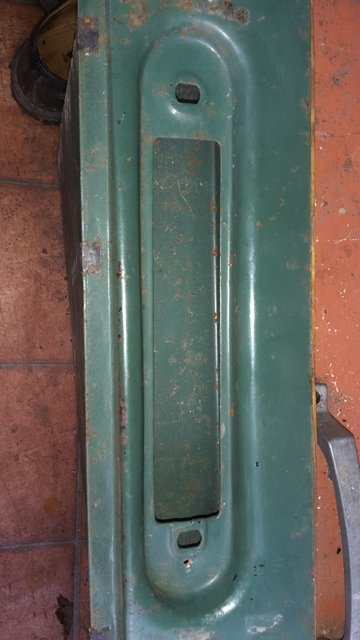

Trafficator Mounting (3).jpg (43.87 KiB) Viewed 37126 times

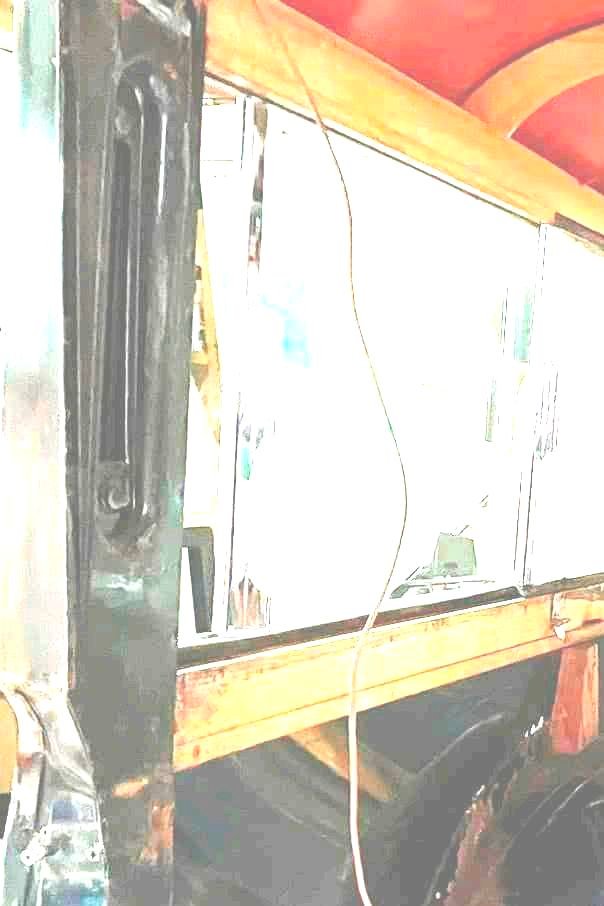

trafficator mounting 4.jpg (55.77 KiB) Viewed 37126 times

Thanks

Taupe

[geoberni]

I can't speak from personal experience, as Basil is a 2dr, but as the 4dr/Traveller doesn't have the screw heads on the outside, I guess you're correct about there being anchor nuts on the pillar...

[taupe]

Thanks for reply

I can confirm that the original arrangement is 2Ba Hank bushes inserted in those oval slot holes in the pillar and a 1/2" 2Ba dome head Phillips screw with large washer and lock washer for each fixing point

Taupe
