ID on MOWOG diff - ATB

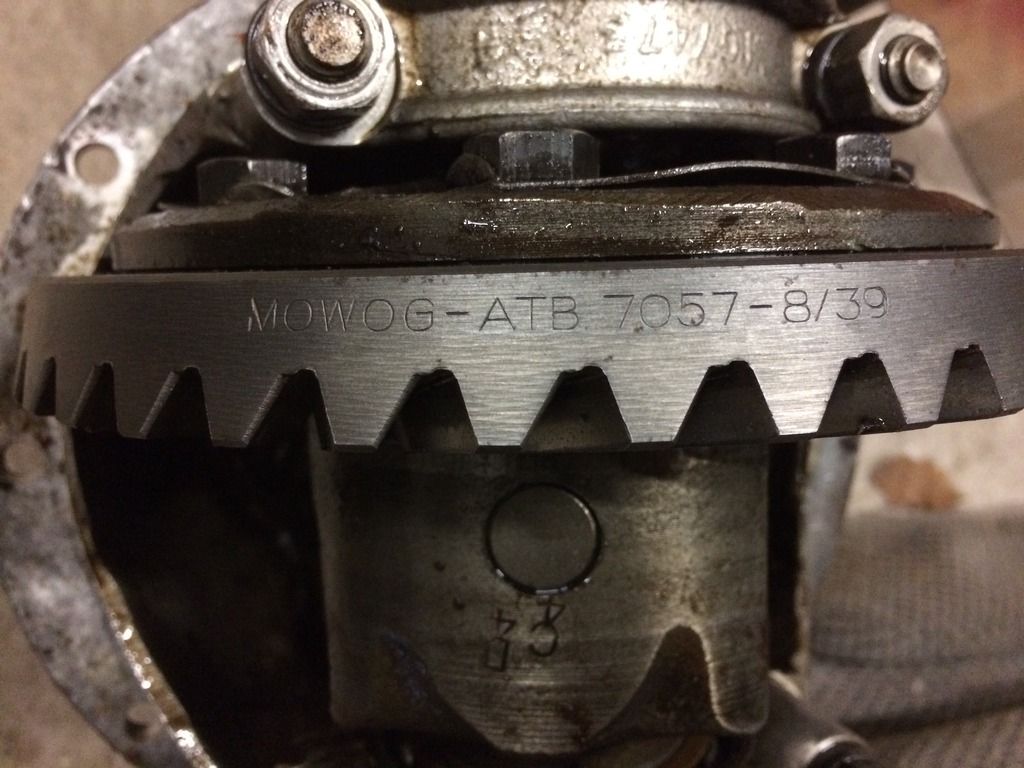

Pulled the diff on my pickup this afternoon and decided to look up the part numbers. I've hunted around and found a table posted previously on here but my diff doesn't appear to match any listed there or elsewhere... bit of a head scratcher. Any chance any knowledgable person could take a look at the below and tell me what I've got sitting in the shed?
Dudders
-
- Minor Maniac
- Posts: 10907
- Joined: Thu Jul 19, 2012 12:05 pm
- Location: Hampshire
- MMOC Member: Yes
Re: ID on MOWOG diff - ATB
39 divided by 8 = 4.875
Originally fitted to A35 Van.
The number ATB7057 is the part number.
The list(s) you have viewed does not state the part number of the crown wheel only the part number of the carrier and the crown wheel carrier.
Originally fitted to A35 Van.
The number ATB7057 is the part number.
The list(s) you have viewed does not state the part number of the crown wheel only the part number of the carrier and the crown wheel carrier.
Last edited by philthehill on Fri Feb 03, 2017 5:31 pm, edited 1 time in total.
-
- Minor Friendly
- Posts: 22
- Joined: Sun May 24, 2015 9:35 am
- Location: Turners Hill
- MMOC Member: No
Re: ID on MOWOG diff - ATB
Thats great thank you! That's a fairly high ratio, just trying to get my head around all this diff/ratio business. So with that hooked up to a 1600 lump I imagine it will be good for top end speed but not necessarily racey out the blocks?
Dudders
-
- Minor Maniac
- Posts: 10907
- Joined: Thu Jul 19, 2012 12:05 pm
- Location: Hampshire
- MMOC Member: Yes
Re: ID on MOWOG diff - ATB
Think of the ratios the other way round - the bigger the number i.e. 4.875 the lower the ratio.
4.875 to 1 is a low ratio. So will be quick off the blocks but you will quickly run out of engine revs at about 70mph
3.7 to 1 is a high ratio. Will give a good cruising speed with low engine revs.
5.3 to 1 is a very low ratio - fitted to GPO van.
To get the best out of the 1600cc you need a diff of at least 3.9 to 1.
Phil
4.875 to 1 is a low ratio. So will be quick off the blocks but you will quickly run out of engine revs at about 70mph
3.7 to 1 is a high ratio. Will give a good cruising speed with low engine revs.
5.3 to 1 is a very low ratio - fitted to GPO van.
To get the best out of the 1600cc you need a diff of at least 3.9 to 1.
Phil
-
- Minor Friendly
- Posts: 22
- Joined: Sun May 24, 2015 9:35 am
- Location: Turners Hill
- MMOC Member: No
Re: ID on MOWOG diff - ATB
I really appreciate the help on this. It's clear i need a 3.9 or 3.7 then, I shall trawl eBay and hope for a deal as they don't seem cheap. In the meantime would this diff I have be beneficial to anyone?
Dudders
-
- Minor Legend
- Posts: 1673
- Joined: Thu May 12, 2016 6:33 am
- MMOC Member: No
Re: ID on MOWOG diff - ATB
Dudders,
It is unfortunate that if you look back in the archives (doing a 'search') you may well come across some posts where one person in particular always insisted on the opposite to the convention of the whole of the motor industry from about a hundred years ago.
Think here of the car gearbox. Which is regarded as the higher ratio? Bottom (low) or top (high) gear? Think of the good old Landrover with high and low ratio gear boxes, where the low ratio gearbox always selected 4 wheel drive at the same time. So think faster output speed for the same input speed is the convention for automobile differentials. The fewer input turns of the propshaft for each turn of the wheels will mean potentially higher top speed (I say 'potentially' because if the ratio chosen is too high, the engine may not develop sufficient torque to drive the vehicle satisfactorily).
RAB
It is unfortunate that if you look back in the archives (doing a 'search') you may well come across some posts where one person in particular always insisted on the opposite to the convention of the whole of the motor industry from about a hundred years ago.
Think here of the car gearbox. Which is regarded as the higher ratio? Bottom (low) or top (high) gear? Think of the good old Landrover with high and low ratio gear boxes, where the low ratio gearbox always selected 4 wheel drive at the same time. So think faster output speed for the same input speed is the convention for automobile differentials. The fewer input turns of the propshaft for each turn of the wheels will mean potentially higher top speed (I say 'potentially' because if the ratio chosen is too high, the engine may not develop sufficient torque to drive the vehicle satisfactorily).
RAB
-
- Minor Friendly
- Posts: 22
- Joined: Sun May 24, 2015 9:35 am
- Location: Turners Hill
- MMOC Member: No
Re: ID on MOWOG diff - ATB
Have been shopping around for this elusive, and apparently expensive 3.7/3.9 diff, in the process I've been learning a few bits and pieces along the way. Was it normal for the a35 van to have 25 spline spider gears as mine evidently has?
A large proportion of the diffs I have looked at are 10 spline spider gears, did any mowog diffs come in 3.7 or 3.9 with 25 spline spider gears to accommodate my half shafts (the more splines being preferable) or would I be looking at blowing my diff apart to make one usable diff?
A large proportion of the diffs I have looked at are 10 spline spider gears, did any mowog diffs come in 3.7 or 3.9 with 25 spline spider gears to accommodate my half shafts (the more splines being preferable) or would I be looking at blowing my diff apart to make one usable diff?
Dudders
-
- Minor Maniac
- Posts: 10907
- Joined: Thu Jul 19, 2012 12:05 pm
- Location: Hampshire
- MMOC Member: Yes
Re: ID on MOWOG diff - ATB
The A35 normally has 10 spline (coarse) spiders and half-shafts. If you have fine splines the diff has been changed/uprated.
See the attached link for details of differentials especially the fine spline diff / halfshafts.
http://www.mgparts.co.nz/advice/technic ... ear-axles/
Here is a link to the MG Midget rear axle which shared some parts with the A35.
http://www.moss-europe.co.uk/shop-by-mo ... 500cc.html
See the attached link for details of differentials especially the fine spline diff / halfshafts.
http://www.mgparts.co.nz/advice/technic ... ear-axles/
Here is a link to the MG Midget rear axle which shared some parts with the A35.
http://www.moss-europe.co.uk/shop-by-mo ... 500cc.html
-
- Minor Friendly
- Posts: 22
- Joined: Sun May 24, 2015 9:35 am
- Location: Turners Hill
- MMOC Member: No
Re: ID on MOWOG diff - ATB

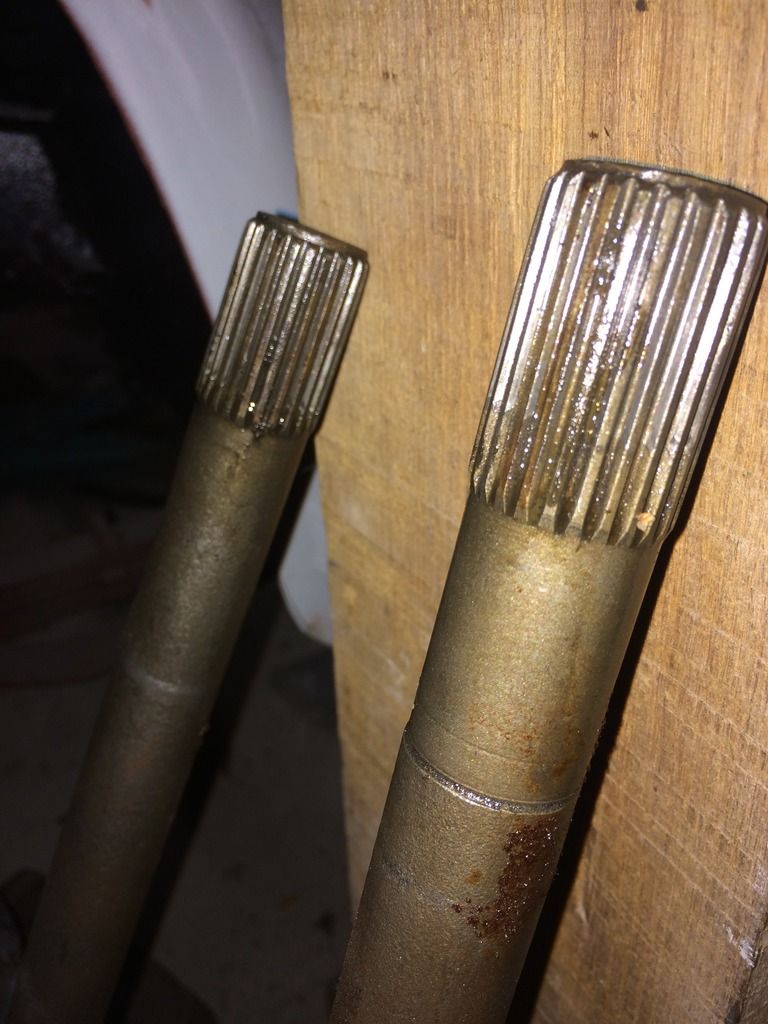

Thanks for these links Phil. After reading the New Zealand MG link I'm of the opinion that's my half shaft have also been part wasted:philthehill wrote:The A35 normally has 10 spline (coarse) spiders and half-shafts. If you have fine splines the diff has been changed/uprated.
See the attached link for details of differentials especially the fine spline diff / halfshafts.
http://www.mgparts.co.nz/advice/technic ... ear-axles/
Here is a link to the MG Midget rear axle which shared some parts with the A35.
http://www.moss-europe.co.uk/shop-by-mo ... 500cc.html
Either that or they are part wasted as standard? Happy to keep the 25 spline element, definitely the better option.
Dudders
-
- Minor Maniac
- Posts: 10907
- Joined: Thu Jul 19, 2012 12:05 pm
- Location: Hampshire
- MMOC Member: Yes
Re: ID on MOWOG diff - ATB
See also the link below regarding upgraded halfshafts:-
http://www.frontlinedevelopments.com/pa ... alf-shaft/
http://www.frontlinedevelopments.com/pa ... alf-shaft/
