Smiths round heater problem.
Hi everyone, trying to get the cover off my smiths round heater , whilst in the van. The fan doesn’t seem to be working. I have a replacement rheostat but not sure how to get the cover off. Any ideas? Thanks.
-
Steve Phillips
- Minor Fan
- Posts: 222
- Joined: Mon Mar 18, 2019 9:28 pm
- Location: Kent UK
- MMOC Member: Yes
Re: Smiths round heater problem.

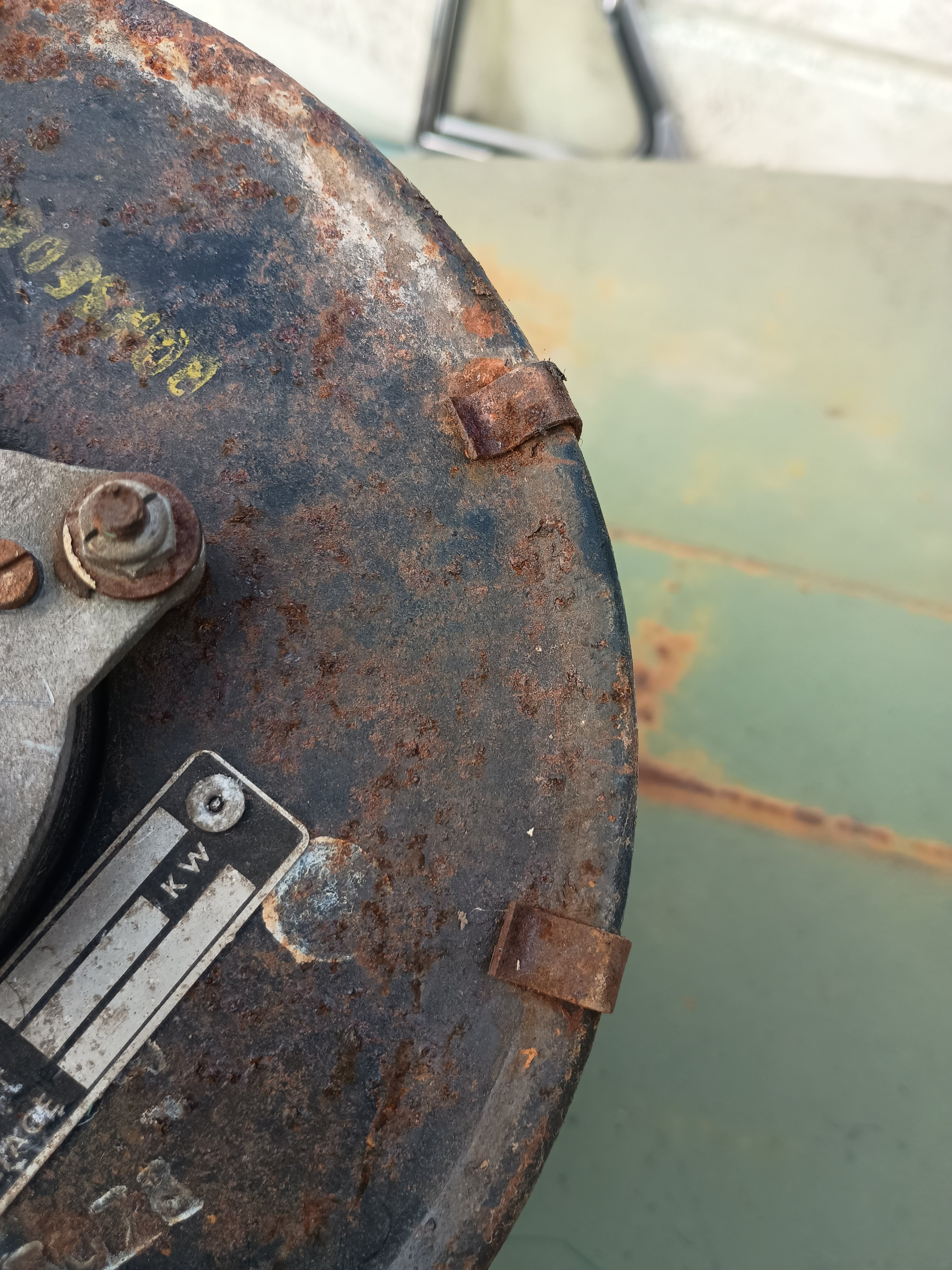

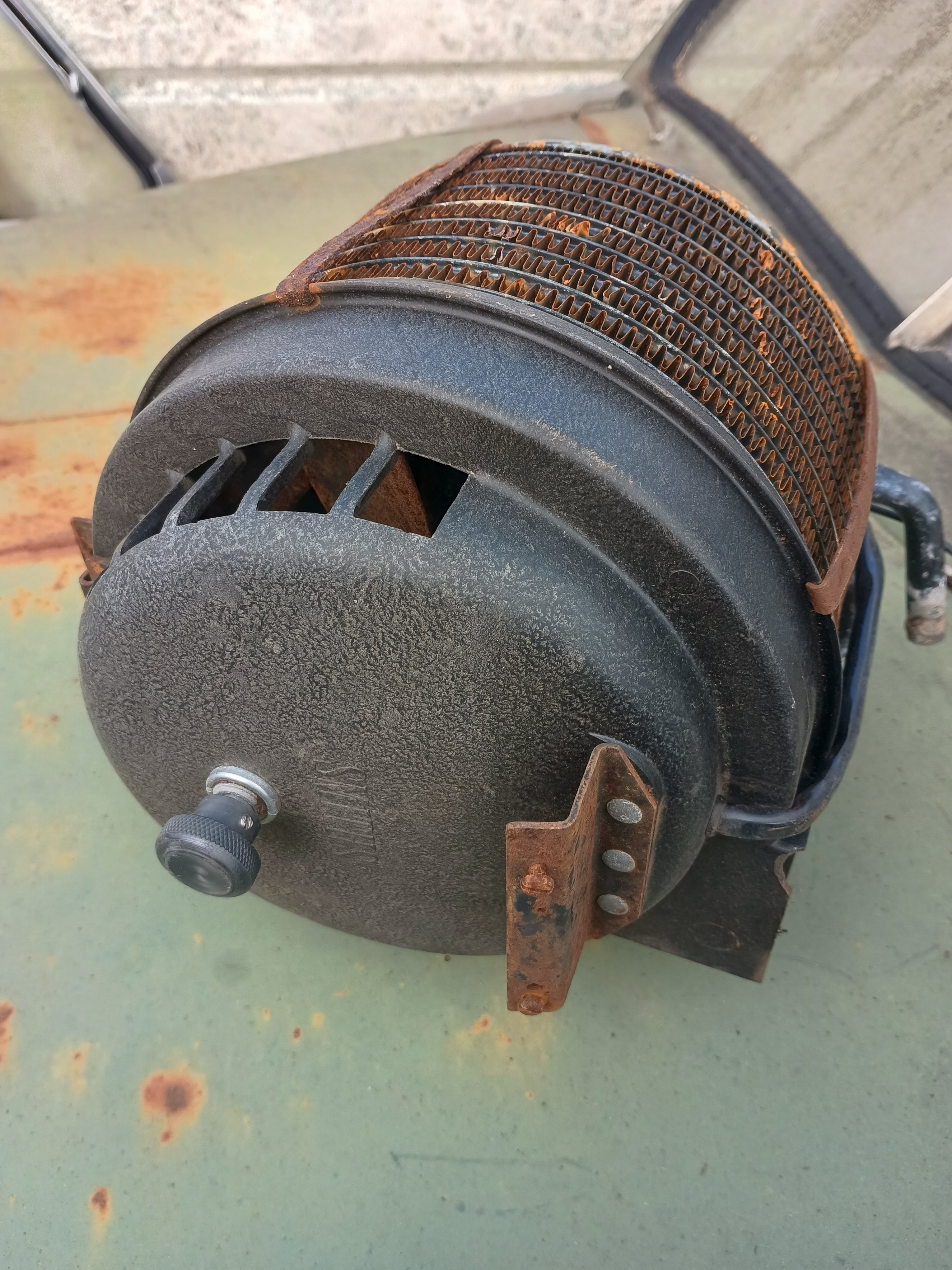

If it's the same as this you remove the clips from the back, so you Will probably need it out of the van.
Steve
Steve
- Attachments
-
- IMG_20260416_160628058.jpg (1.95 MiB) Viewed 4926 times
-
- IMG_20260416_160613510_HDR.jpg (1.86 MiB) Viewed 4926 times
-
geoberni
- Minor Maniac
- Posts: 5246
- Joined: Fri Aug 04, 2017 11:19 am
- Location: North Leicestershire
- MMOC Member: Yes
Re: Smiths round heater problem.

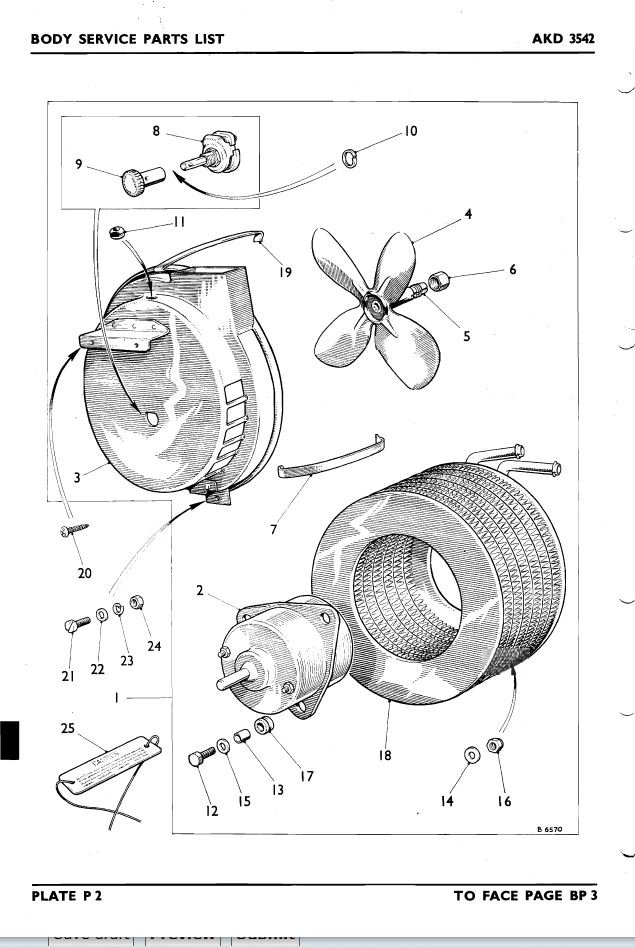

It's held together by some spring clips.
Items 7 & 19.
Items 7 & 19.
- Smiths.JPG (107.58 KiB) Viewed 4924 times
Basil the 1955 series II
Re: Smiths round heater problem.
Thank you for your help, especially the exploded view on body service parts list.
Yes, you are right, I will have to take the unit out to get at the motor, was hoping it might just be the rheostat.
Yes, you are right, I will have to take the unit out to get at the motor, was hoping it might just be the rheostat.
Re: Smiths round heater problem.
Thanks for your help with clips Steve. Regards Grovervan.
