2 door 1959 door check straps

[Richardnewcombe]

I have replaced the 'A' posts and now wish to refit the door check straps. Could someone please send me the precise measurement of the attachment of the strap to the post. I am happy with the height of the strap because the door dictates this but unsure exactly where it should be fixed onto the pillar. Does it fit exactly into the centre of the pillar or is it offset at all either way. Thanks in anticipation.

[Steve Phillips]

I'll get some measurements for you tomorrow and post them up here
Steve

[Richardnewcombe]

Thanks very much.

[Steve Phillips]

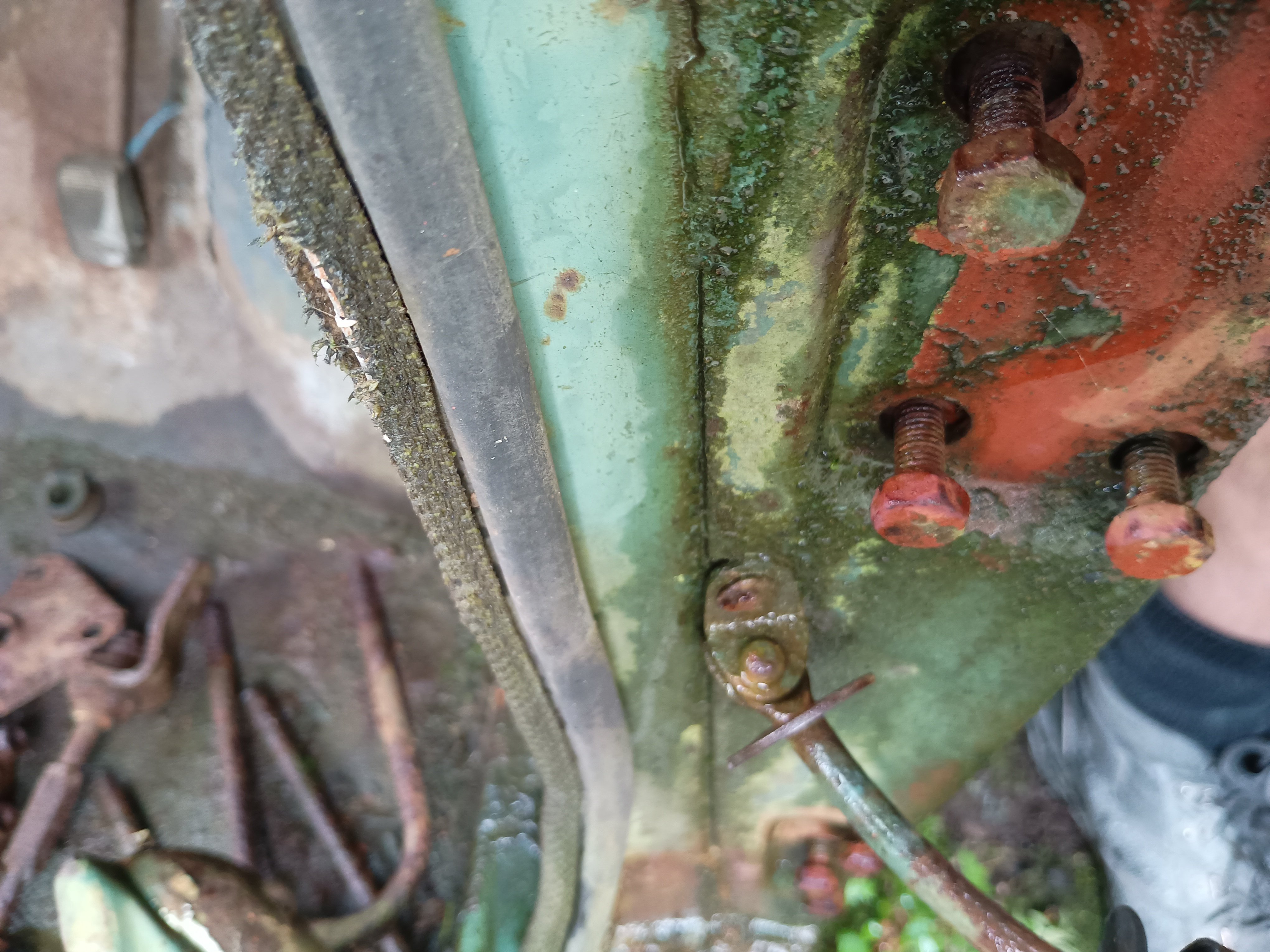

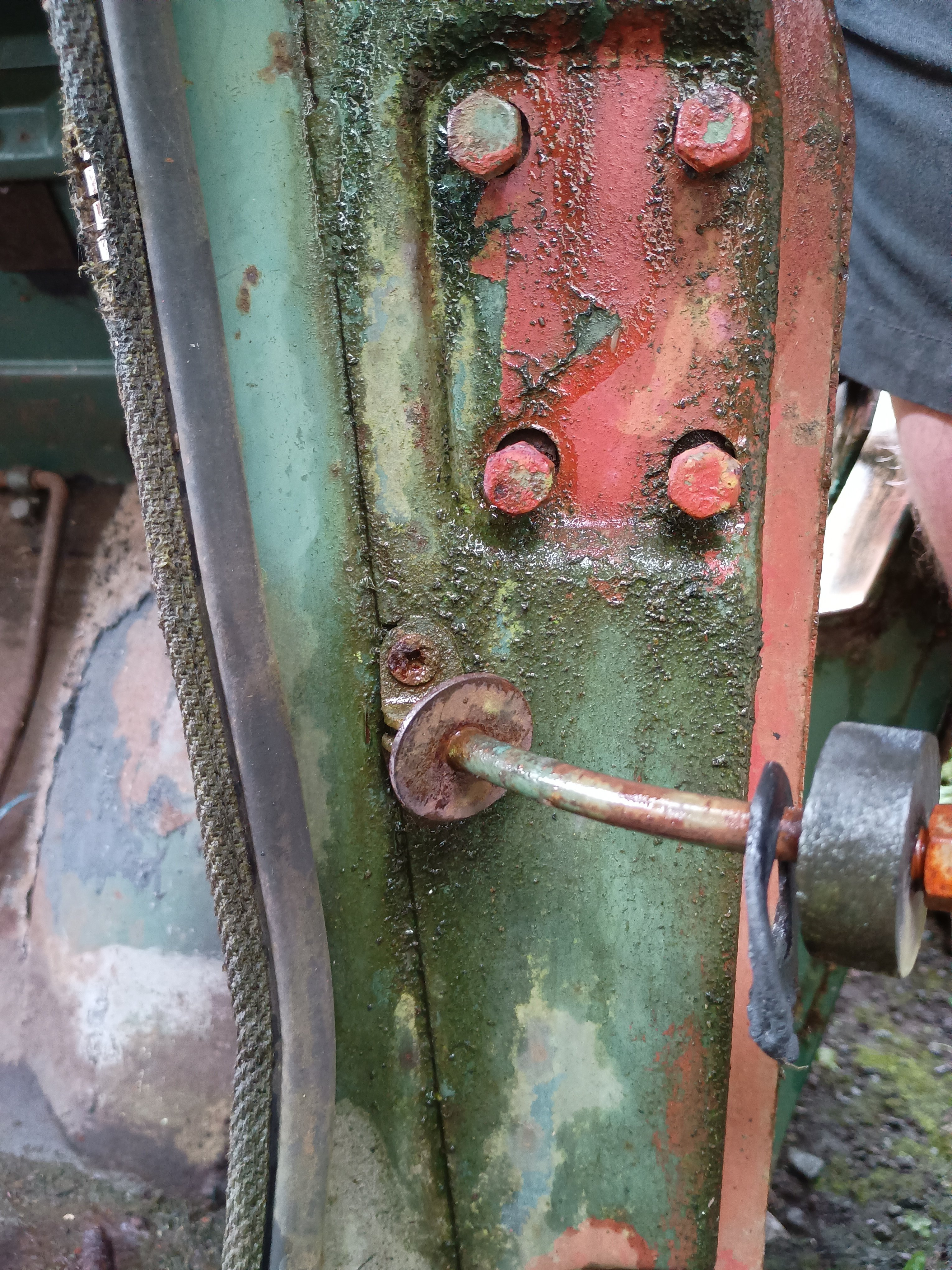

Hi didn't take any dimensions but I hope the pictures answer your question. If not let me know and I'll get dimensions for you.
Steve

[Richardnewcombe]

Thanks Steve that is really helpful. It looks like you are doing similar work to myself. Best regards Richard

[geoberni]

I concur with that position, my SII is the same. Just slightly over the panel join line.

[Steve Phillips]

Glad it helps, let me know if you need any other dimensions,

The shell is a late split screen shell, that’s all original so perfect for reference, it’s my ""one day build"", still got my traveller to build first, but finding time for my own projects is always hard as customers come first.
Steve
