Torsion bars

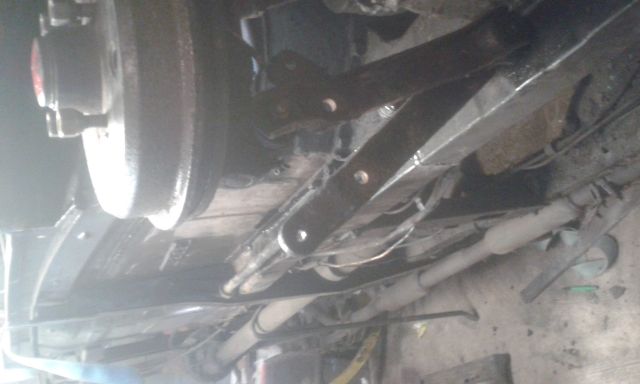

I have read everything I can about these but cannot get my head round it . My car is on its side and I am trying to get it back together . The back end is loosely bolted together in the same position as before , the front is part dismantled . If you can see on the foot this is as close as I can get to realigning the front . I obviously have something wrong . While it's loos should I free up the spine at the back and grease it ?
Thanks Jim
Thanks Jim
Re: Torsion bars
You will struggle to get it back together while it's on it's side, you need the weight of the car with, engine in place, to be able load the torsion bar against it.
Re: Torsion bars
Leave the rear end alone. You could mess about with a ratchet strap - but quite a bit of danger. I wouldn't. Move the front arm round on the splines till you get it on the kingpin - then when it's back on the ground you can reset the height properly once the engine is in. You do have the rebound stop removed I assume?
Re: Torsion bars
Am I being a bit dense here ? When the car is back on the ground won't the hub be pushed upwards and further away from the arm ? Oh and no , I hadn't removed the rebound stop , I now have and I think with a small struggle I will be able to get it back together as it is . When I bought the car it had a front need list , so it will need to be adjusted .
Thanks Jim
Thanks Jim
Re: Torsion bars
If you've got it on -good ! With car on ground - you put a jack under the front arm and lift it up till it meets the floppy kingpin...... But you do need weight in the car to do that - fat mates would do .....
-
