Camshaft retaining nut - reusable?

Discuss mechanical problems here.
Forum rules
By using this site, you agree to our rules. Please see: Terms of Use
Post Reply
chrisd87
Minor Addict
Posts: 857
Joined: Mon Nov 07, 2005 4:52 pm
Location: Saffron Walden
MMOC Member: No

Camshaft retaining nut - reusable?

Post by chrisd87 »

When I replaced the crankshaft on my 1098 engine, I had to drill through the edge of the nut that retains the timing wheel to the camshaft in order to get it off. Unfortunately I haven't got a spare at the moment so I was just wondering if it's safe to re-use it tempoarily? I assume the worst that can happen is that the timing chain would snap - would that cause the valves to hit the pistons, like when a cambelt snaps?

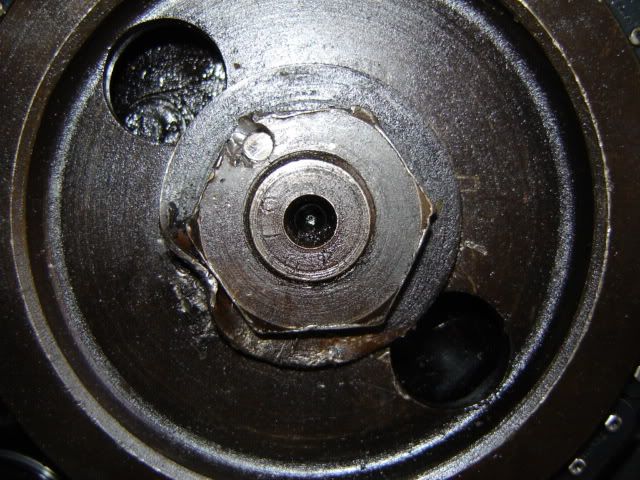

This is the nut as re-fitted. It seems to tighten OK, but there is a visible crack in it.

Any advice would be welcome!
[img]http://i31.photobucket.com/albums/c390/chrisd87/DSC00749.jpg[/img][img]http://i31.photobucket.com/albums/c390/chrisd87/med_gallery_128_45_1416415.jpg[/img]
Sarah - 1970 Minor 1000 2-dr
Maggie - 1969 Minor 1000 4-dr
Top
chickenjohn
Minor Legend
Posts: 4064
Joined: Tue Dec 07, 2004 8:50 am
Location: Margate, East Kent
MMOC Member: No

Post by chickenjohn »

No, I would phone one of the suppliers and get them to send you a new on in the post- should arrive tomorrow morning.
Cheers John - all comments IMHO
- Come to this years Kent branches Hop rally! http://www.kenthop.co.uk
(check out the East Kent branch website http://www.ekmm.co.uk )
Top
RogerRust
Minor Legend
Posts: 2437
Joined: Mon Oct 24, 2005 7:10 pm
Location: North Bedfordshire,
MMOC Member: No

Post by RogerRust »

ESM stock them and will pop it in a jiffy bag - not worth the risk

http://morrisminorspares.co.uk/shop/adv ... 067e724c92.

This message board is like a family - you can't choose the other members!! But remember engine oil is thicker than water.
Top
chrisd87
Minor Addict
Posts: 857
Joined: Mon Nov 07, 2005 4:52 pm
Location: Saffron Walden
MMOC Member: No

Post by chrisd87 »

OK thanks for that. I won't risk it for that sort of money.
[img]http://i31.photobucket.com/albums/c390/chrisd87/DSC00749.jpg[/img][img]http://i31.photobucket.com/albums/c390/chrisd87/med_gallery_128_45_1416415.jpg[/img]
Sarah - 1970 Minor 1000 2-dr
Maggie - 1969 Minor 1000 4-dr
Top
bmcecosse
Minor Maniac
Posts: 46561
Joined: Wed Feb 16, 2005 11:24 pm
Location: ML9
MMOC Member: No

Post by bmcecosse »

NOOOOOOOO !!!!! Get a new one - and a new tab washer at the same time.
Top
chrisd87
Minor Addict
Posts: 857
Joined: Mon Nov 07, 2005 4:52 pm
Location: Saffron Walden
MMOC Member: No

Post by chrisd87 »

Yup I've ordered one! :D
[img]http://i31.photobucket.com/albums/c390/chrisd87/DSC00749.jpg[/img][img]http://i31.photobucket.com/albums/c390/chrisd87/med_gallery_128_45_1416415.jpg[/img]
Sarah - 1970 Minor 1000 2-dr
Maggie - 1969 Minor 1000 4-dr
Top
bigginger
Minor Maniac
Posts: 5928
Joined: Thu Sep 09, 2004 11:01 pm
MMOC Member: No

Post by bigginger »

NOOOOOOOO !!!!! Get a new one
Good - all agreed then, but some more agreed than others :D
Top
Packedup
Minor Legend
Posts: 1429
Joined: Tue Aug 02, 2005 1:40 am
MMOC Member: No

Post by Packedup »

bigginger wrote: Good - all agreed then, but some more agreed than others :D
I've have suggested drilling another hole opposite to balance it... ;)
Top
phil63
Minor Friendly
Posts: 74
Joined: Sat Jun 05, 2004 4:57 pm
MMOC Member: No

camshaft nut

Post by phil63 »

How did you manage to get the nut off? my well fitting socket keeps slipping off when I hit the bar !! ( my the way is it R of Left hand)
Phil
Top
bmcecosse
Minor Maniac
Posts: 46561
Joined: Wed Feb 16, 2005 11:24 pm
Location: ML9
MMOC Member: No

Post by bmcecosse »

It is normal right hand thread - and it should not be that tight. A steady pressure is best rather than sudden blows - far better to use a ring spanner or an open-end. I have used a hammer and chisel in the past - but only do this if fitting a new chain anyway.
Top
