Les
If I was rebuilding the engine I would remove the plug(s) and flush through.
As you no doubt are aware and for general consumption - cleanliness of the oil galleries is most important because you never know what is lurking inside especially after machining has been carried out. To enable the cleaning of the oil ways my engine has screwed in oil gallery plugs for all the galleries (horizontal and vertical) and are removed, rodded through with suitable brushes and flushed through with paraffin under pressure before reassembly.
Way back I did a post relating to fitting screwed gallery plugs to the 'A' Series with photos but it seems to have disappeared. With luck someone on here may be able to find it and repost

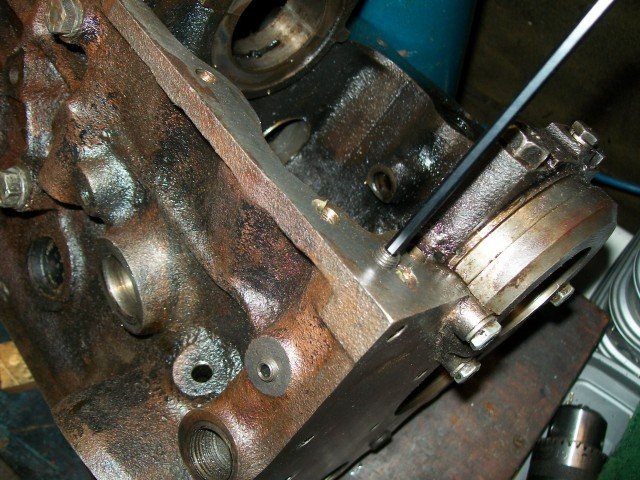

The photo below relates to fitting the gallery plugs (horizontal and vertical) for the oil pressure release valve dump passage back to the sump which is quite often forgotten about.
Flywheel ?
Forum rules
By using this site, you agree to our rules. Please see: Terms of Use
By using this site, you agree to our rules. Please see: Terms of Use
-
philthehill
- Minor Maniac
- Posts: 12129
- Joined: Thu Jul 19, 2012 12:05 pm
- Location: Hampshire
- MMOC Member: Yes
Re: Flywheel ?
Plugs replacement that’s the plan Phil, first I need to remove the camshaft and crank sprockets, even with the nut removed, everything on this engine is so tight to get off.
