Below: old socket on the left revised socket on the right.
- oil press cover socket 1.JPG (763.37 KiB) Viewed 282 times
- oil press cover socket 2.JPG (777.06 KiB) Viewed 282 times
oil pressure relief valve
Forum rules
By using this site, you agree to our rules. Please see: Terms of Use
By using this site, you agree to our rules. Please see: Terms of Use
-
philthehill
- Minor Maniac
- Posts: 12070
- Joined: Thu Jul 19, 2012 12:05 pm
- Location: Hampshire
- MMOC Member: Yes
Re: oil pressure relief valve
Recently re-visited this thread and decided to revise the design of the oil pressure relief valve socket. Now 3/8" drive and made from a one piece socket with a reduced diameter upper section. It allows me to remove the oil pressure relief valve cover without removing one or more of the starter motor bolts.

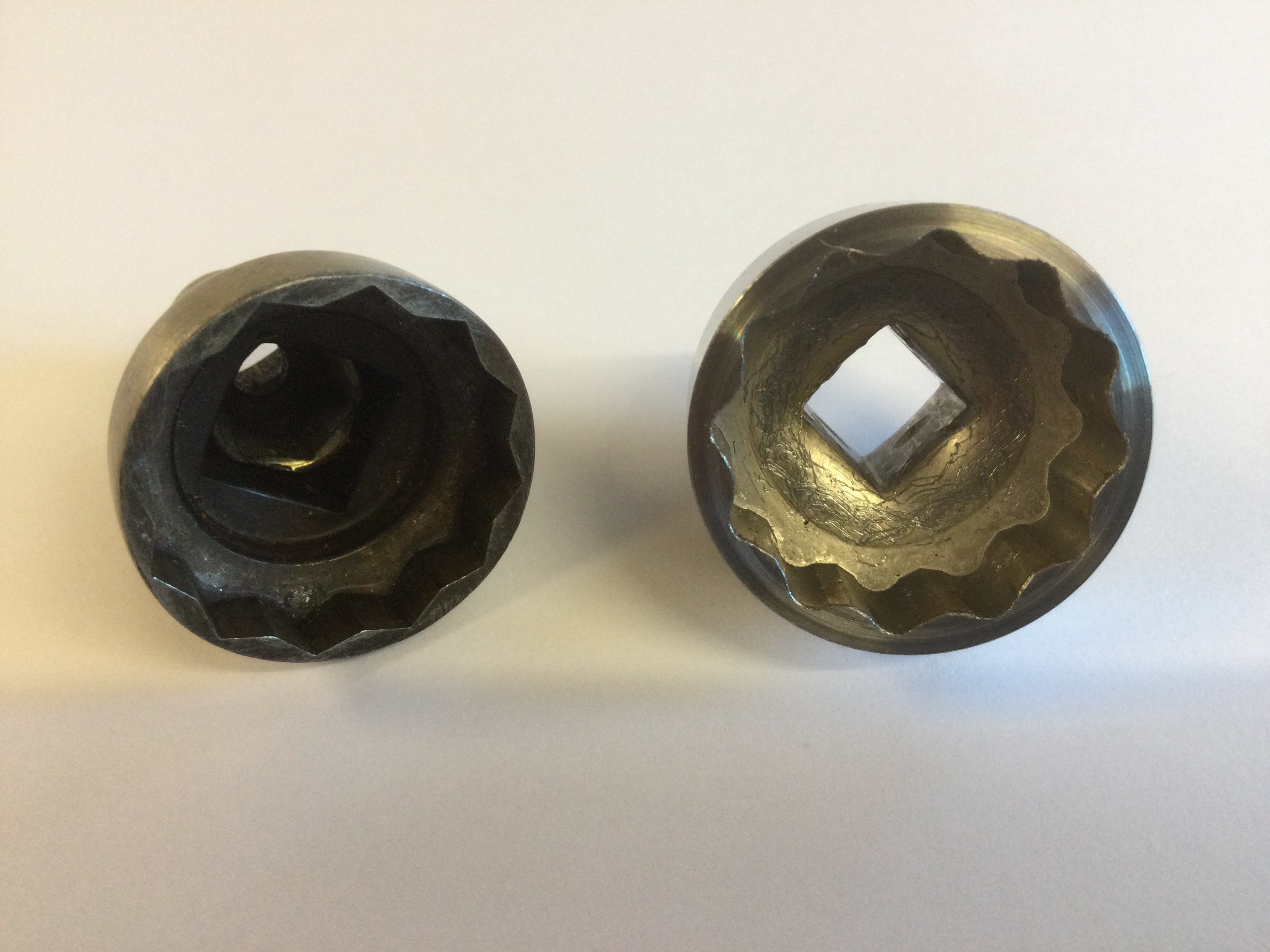

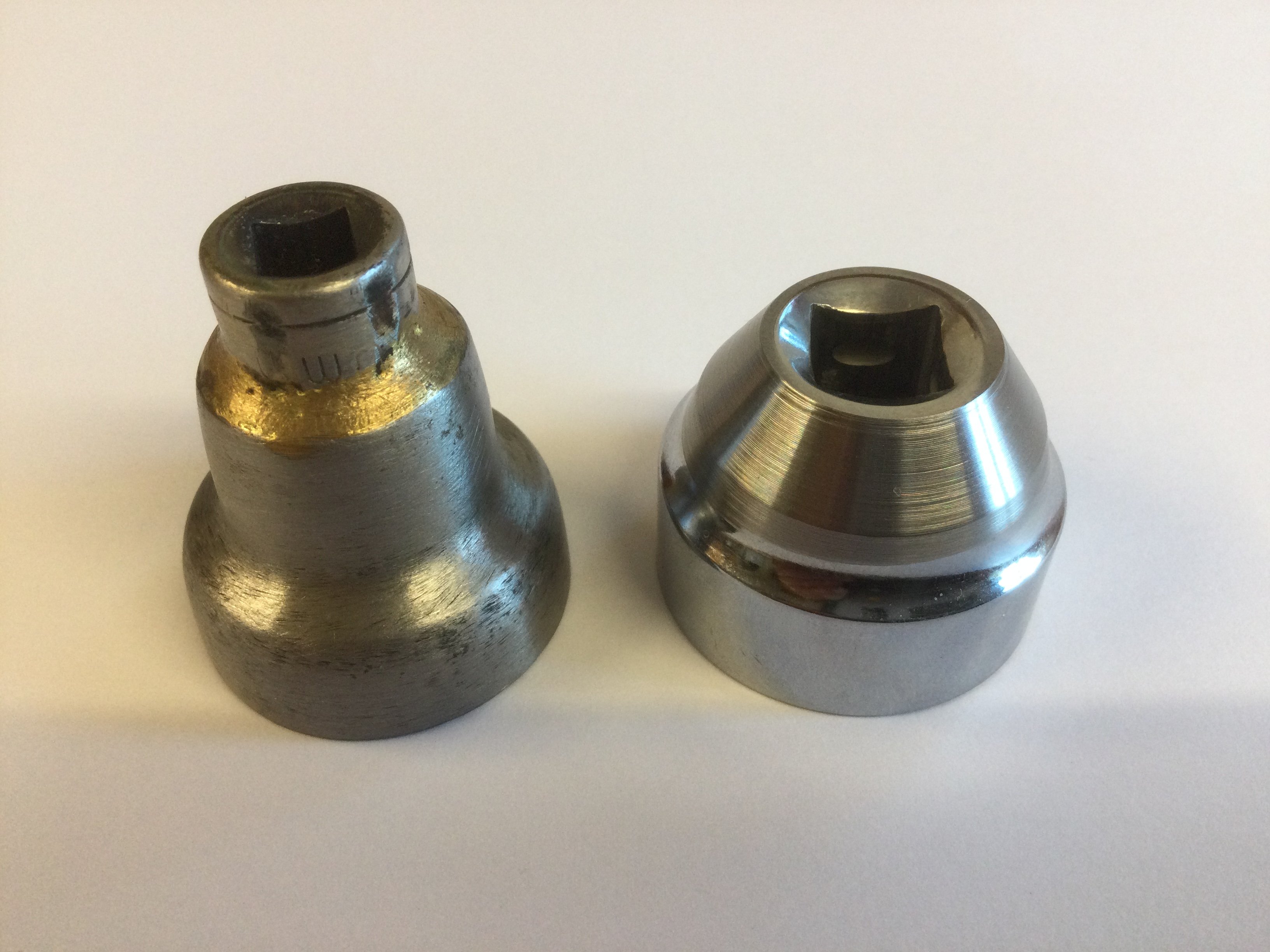

Below: old socket on the left revised socket on the right. Works even better with a wobble end socket extension.
Below: old socket on the left revised socket on the right. Works even better with a wobble end socket extension.
