series 2 questions

Post by **mike.perry** » Mon May 25, 2009 1:40 pm

I would take a photo but there is no way I'm going to remove a light, they are awkward to get at. I may be able to get some sort of photo if I point the camera up under the grill.

Post by **MColes** » Mon May 25, 2009 2:03 pm

my grill is easy to remove. Will take a picture for you later.

Post by **markattard** » Mon May 25, 2009 3:04 pm

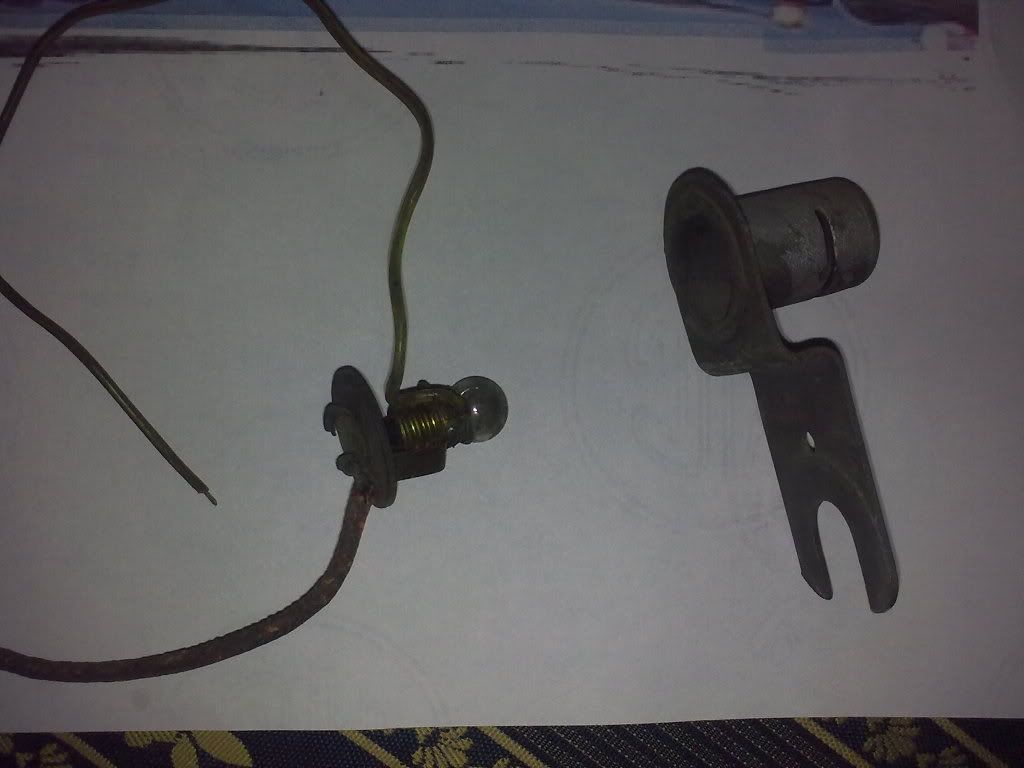

Finally I found these

Which quite match with what you told me. I think the light came out of the tiny slot in the holder and I think this goes was attached to the choke nut. Also this should be the part of the dash light so I'm now after the head beam warning unit...

Post by **mike.perry** » Mon May 25, 2009 6:01 pm

Well done, that's the light that shines on the ignition switch. There should be a green filter over the slot and it is wired into the side light circuit. It looks like the thick wire is an earth cable. The other light has a red lens on the end.

Post by **MColes** » Mon May 25, 2009 6:06 pm

Yes that is that light that lights the ignition and attaches to the choke cable.

Maybe a bit late now but here are the pics I said I'd post up.

Iginition light:

Main beam light:

Post by **markattard** » Mon May 25, 2009 6:12 pm

Thanks a lot guys! Now any one with a spare beam warning light pl send me a PM tanks again!

Post by **markattard** » Wed May 27, 2009 10:15 am

Just a reminder for the above, any donors please?

Post by **FrankM83** » Mon Jun 01, 2009 10:31 pm

mark wil check tomorrow!! had problems texting from my mobile (stupid Melita mobile) should have one of these but not sure if its the high beam or the panel ilumination
