unable to access wiring diagram

[AdrianH]

Trying to find wiring diagram for my 1967 1000 with alternator but unable to upload them?

[svenedin]

The images are unfortunately missing from many of the older posts on this forum.

You can download the workshop manual AKD530 as a free pdf download here: https://www.dorsetmmoc.co.uk/wordpress/ ... manual.pdf

Then you can view it on your computer and print out the pages that you need for a particular job.

There is a wiring diagram N46 for models with an alternator in the workshop manual but it is not very useful because it is for the very early alternators that had an external 4TR control unit and they were positive earth as well.

For your 1967 car the relevant diagram is N44 remembering that this diagram is for a POSITIVE earth car and by necessity your car will be NEGATIVE earth with a modern alternator. This diagram does not include the alternator wiring as it is for a dynamo.

Various people have produced colour wiring diagrams for cars with alternators including this one: https://www.facebook.com/photo.php?fbid ... 809&type=3

Stephen

[svenedin]

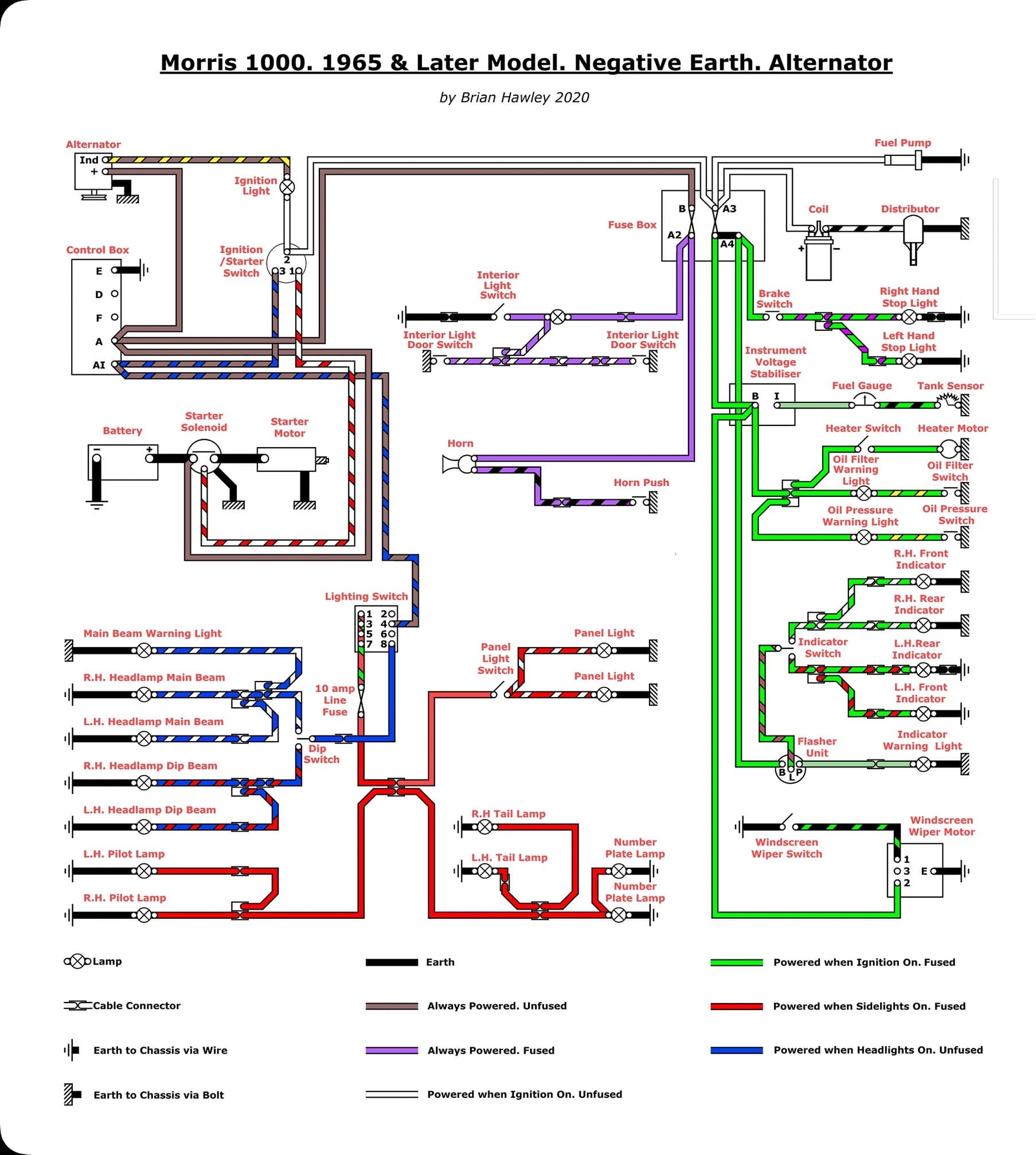

Credit to Brian Hawley for producing this diagram

Morris Minor pst 1965 wiring diagram Neg earth alternator.jpg (532.93 KiB) Viewed 22240 times

[svenedin]

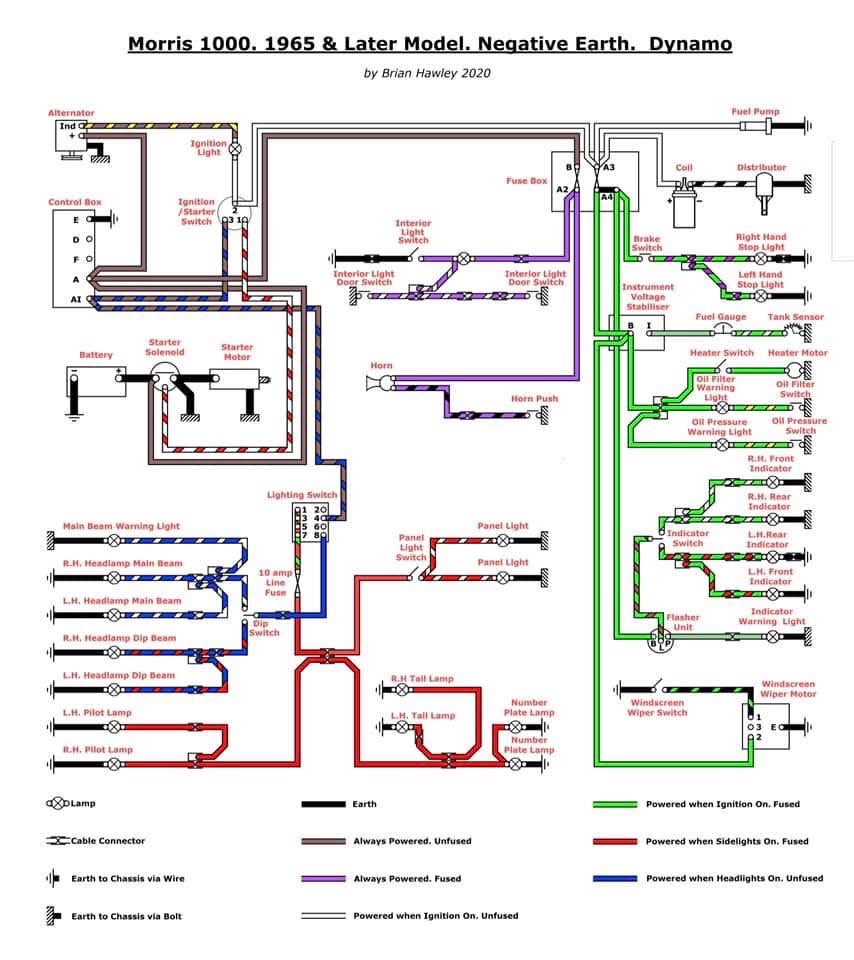

This is the wiring diagram for NEGATIVE earth dynamo, post 1965 Minor

Morris Minor post 1965 negative earth dynamo.jpg (168 KiB) Viewed 22236 times

[geoberni]

This is the wiring diagram for NEGATIVE earth dynamo, post 1965 Minor


Morris Minor post 1965 negative earth dynamo.jpg

Look again, Brian Hawley has screwed up, and it's the same as the Alternator Diagram

[svenedin]

This is the wiring diagram for NEGATIVE earth dynamo, post 1965 Minor


Morris Minor post 1965 negative earth dynamo.jpg

Look again, Brian Hawley has screwed up, and it's the same as the Alternator Diagram

So it is

To be honest, I didn't even bother looking as I don't use these diagrams!

Stephen

[geoberni]

So it is

To be honest, I didn't even bother looking as I don't use these diagrams!

Stephen

I don't use them either, I've never had any problem with the ones in the workshop manual, but then I spent most of my working life following far more complex line diagrams, often across multiple pages, either on A3 paper, microfiche or electronic version...

[Bill_qaz]

This is the wiring diagram for NEGATIVE earth dynamo, post 1965 Minor


Morris Minor post 1965 negative earth dynamo.jpg

Look again, Brian Hawley has screwed up, and it's the same as the Alternator Diagram

So it is

To be honest, I didn't even bother looking as I don't use these diagrams!

Stephen

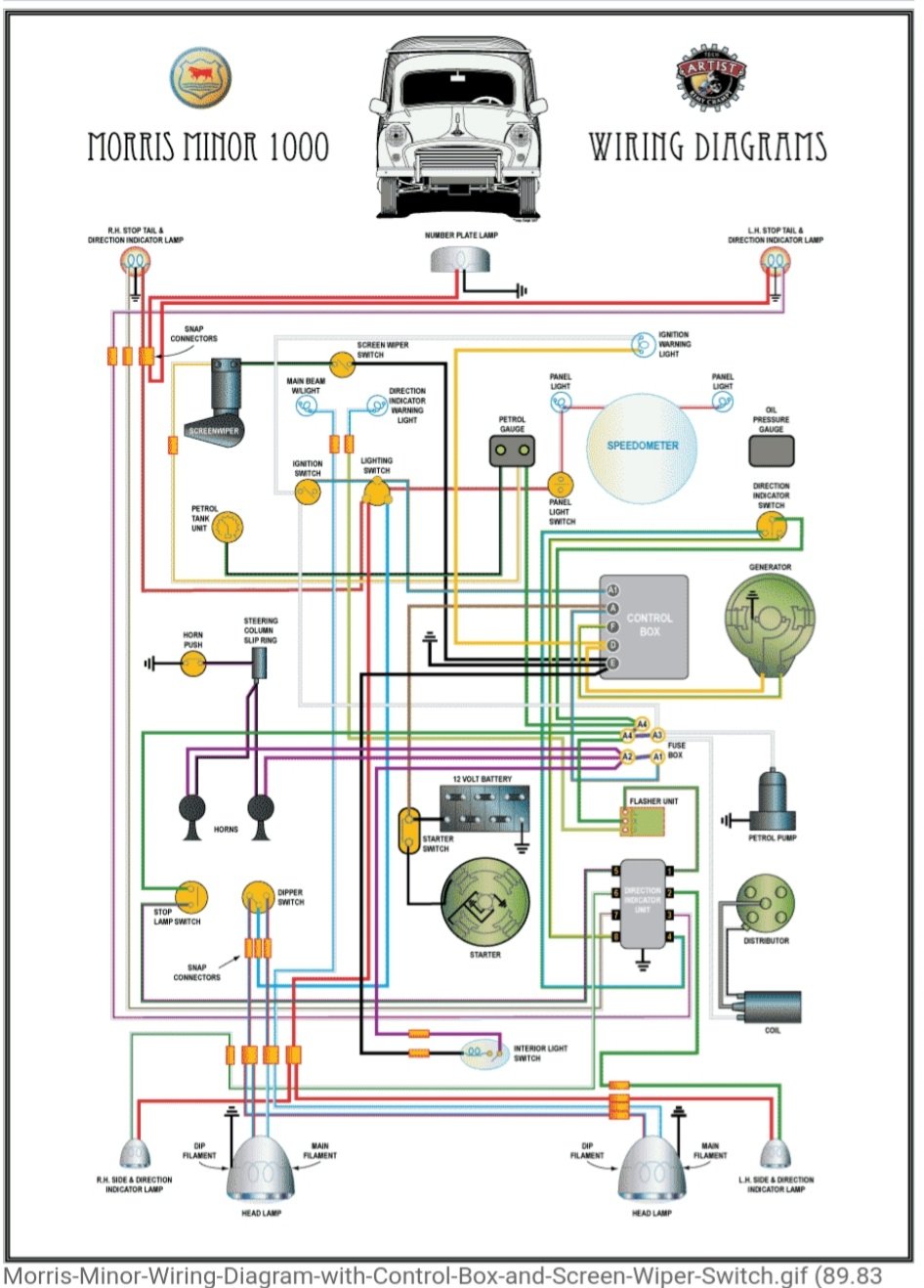

Perhaps you just posted the same one twice Stephen

Screenshot_20240717-162019_Samsung Internet.jpg (161.82 KiB) Viewed 21763 times

[svenedin]

No Bill, if you look it says dynamo as the title of the diagram but then shows an alternator within the diagram?!!

Stephen

[Bill_qaz]

No Bill, if you look it says dynamo as the title of the diagram but then shows an alternator within the diagram?!!

Stephen

True two title's one diagram
I think the one I posted is dynamo so the op will have both.
Or is it just an AI conspiracy
