Van rear spring fittings.

[surfergirl]

Sorry to go over old ground, but wanted to be sure for safety sake!

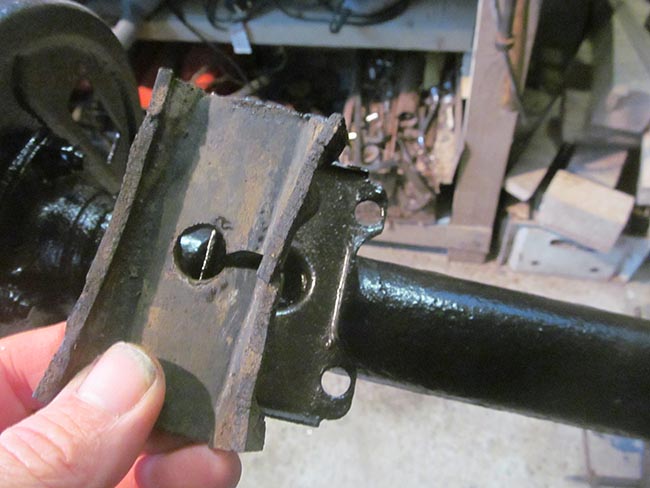

Im fitting a saloon rear axle to the van, and have found there is a difference in the fitting brackets from saloon to van. So do I need the rubber packing pieces ( 2 per axle) and the plates in the photo ?

[les]

The lcv axle is located using the steel plates as your original set up should have been, the axles are the same.
No rubber or thin plates.

[surfergirl]

Thanks,
Would you have a pic ?

[les]

It's possible, let me see what I can find.

[les]

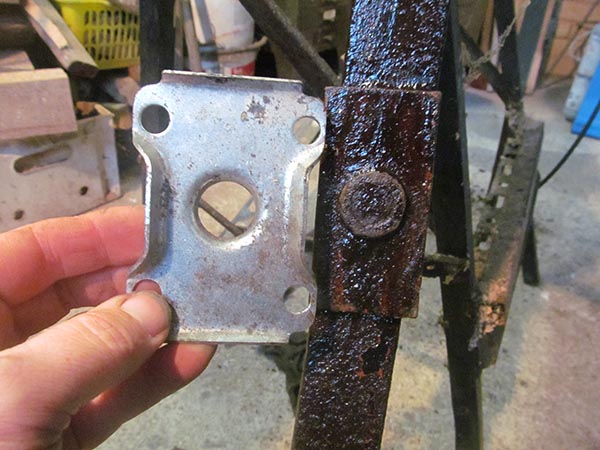

The heavy metal plates are attached to top and bottom of the spring, held together with a special bolt, the shock absorber bracket is fitted to the bottom plate and the top plate locates on the axle bracket, the U bolts hold it all together.
