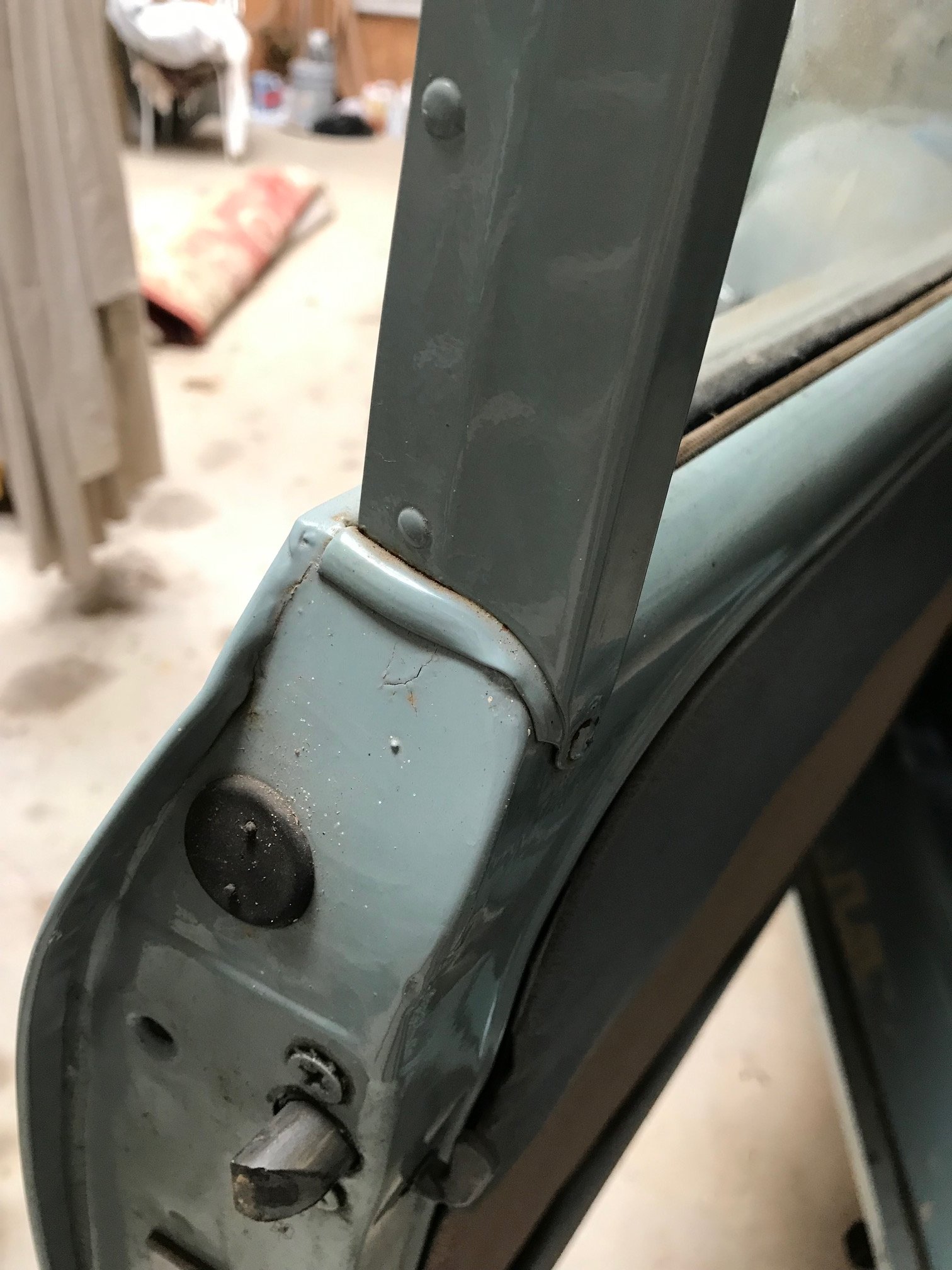

Hello, I've fitted the stainless steel window frames to the doors on my 1970 Traveller. I'm aware that this is going to leak at the spot where the rear of the stainless frame goes into the door shell. I had some perished bits of rubber when I took the door apart which I assume were the seal for this part.
Does anyone have any pictures or references of what this part of the car is supposed to look like
Sealing rear of window frames
Forum rules
By using this site, you agree to our rules. Please see: Terms of Use
By using this site, you agree to our rules. Please see: Terms of Use
-
- Minor Fan
- Posts: 254
- Joined: Tue Oct 26, 2010 9:01 pm
- MMOC Member: No
Re: Sealing rear of window frames
I ame a cheapskate and used a piece of inner tube to make a seal.
1969 Traveller in Almond green. Owned since 1979.
-
- Minor Legend
- Posts: 2792
- Joined: Tue Nov 11, 2014 9:41 am
- MMOC Member: No
Re: Sealing rear of window frames

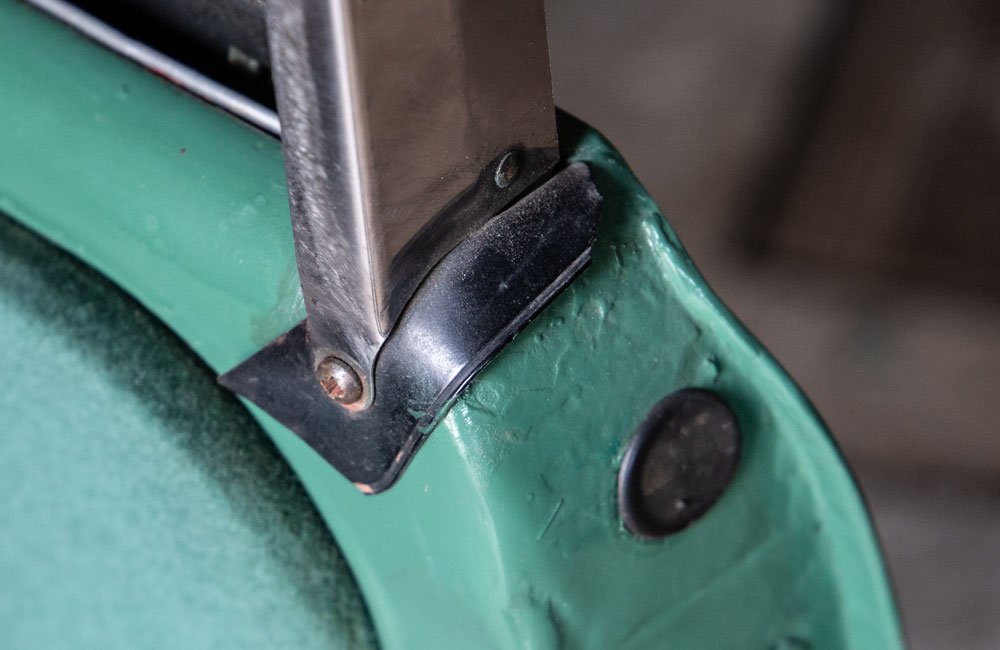

Good job! That looks very similar to the original ones on my car.
Re: Sealing rear of window frames
aaaaah!
much obliged for the photo
much obliged for the photo
-
- Minor Friendly
- Posts: 83
- Joined: Sun Aug 19, 2018 10:19 pm
- Location: Central Texas, USA
- MMOC Member: No
Re: Sealing rear of window frames

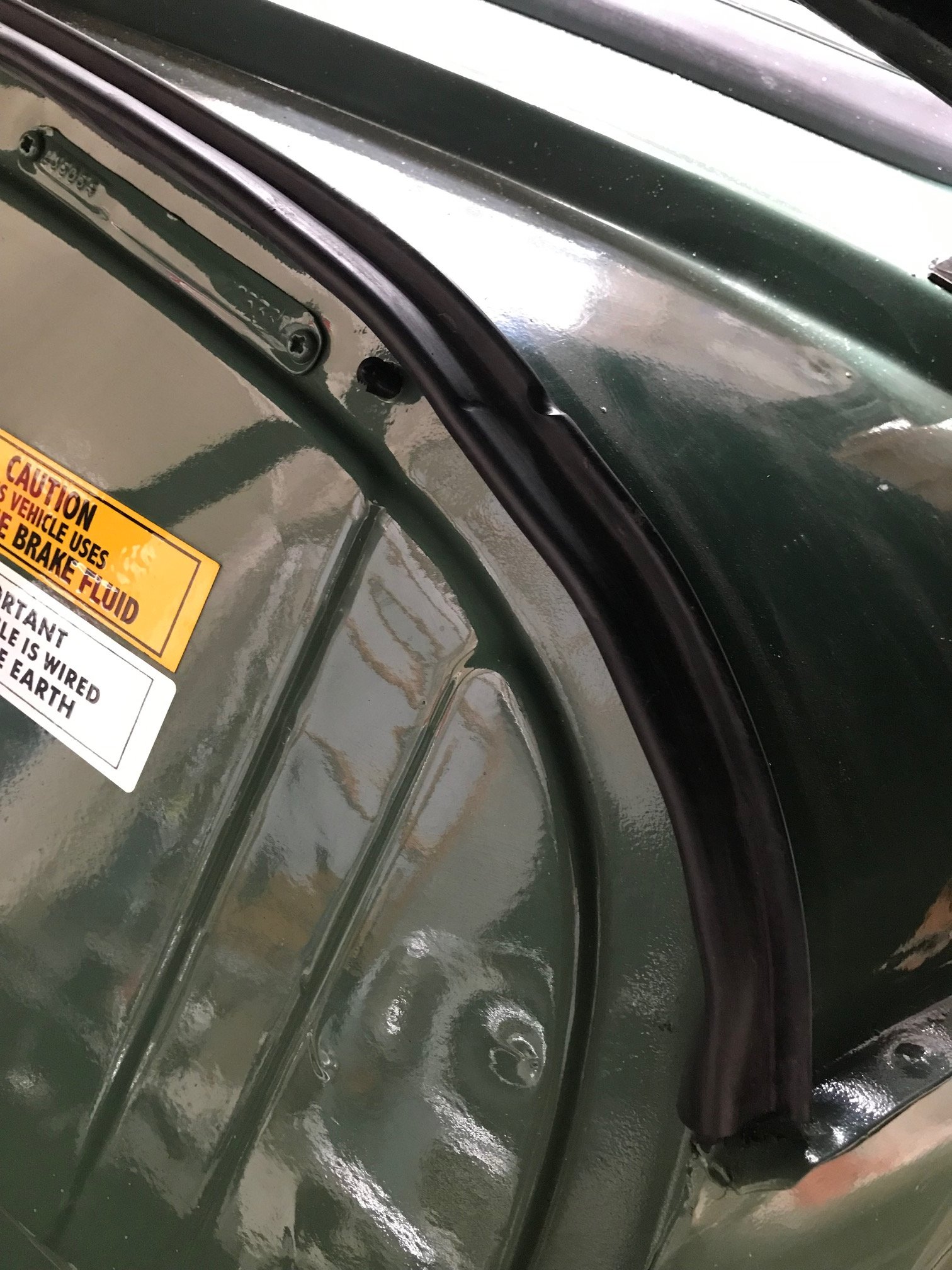

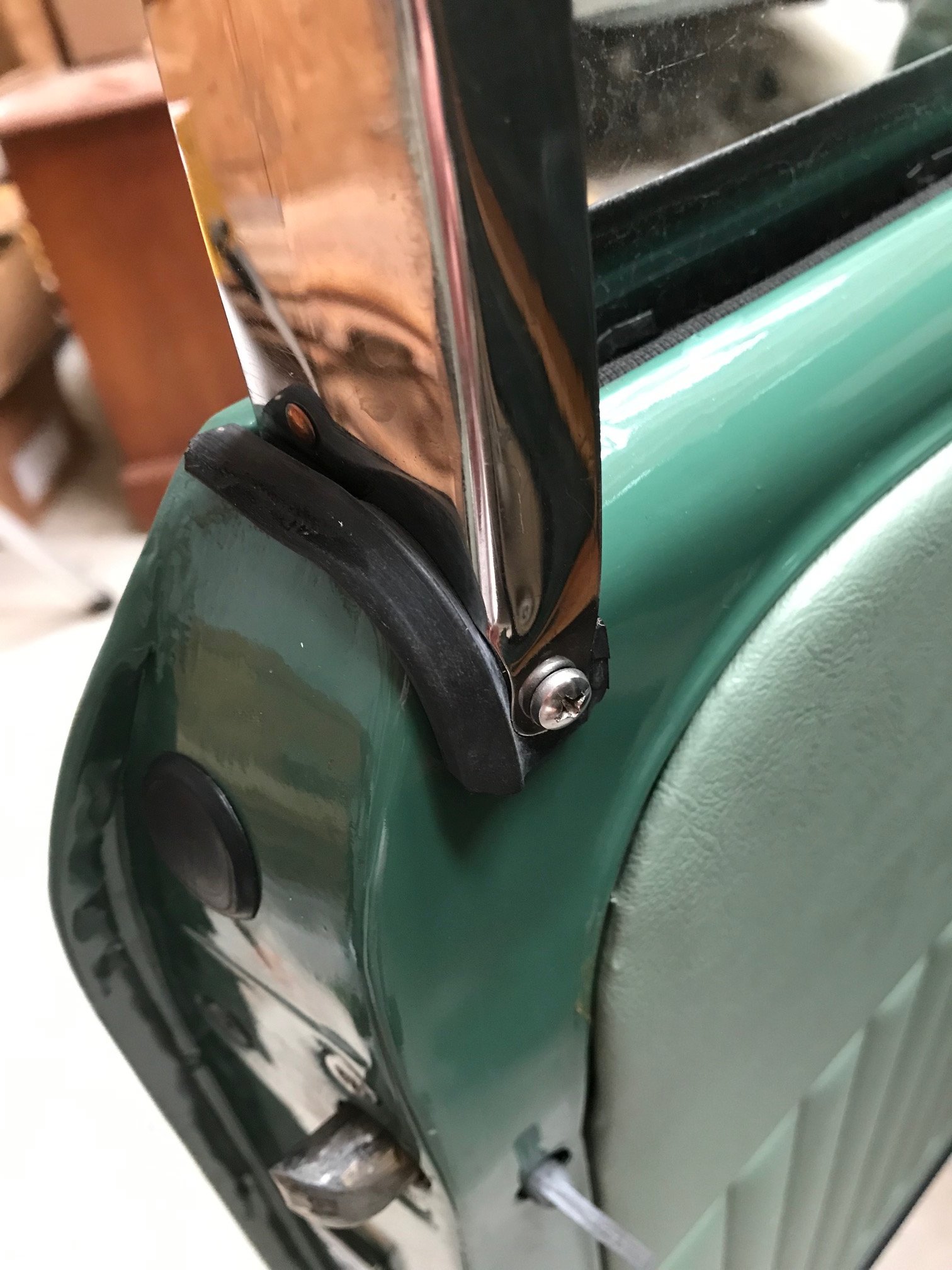

I had the same issue. The part is not available anywhere that I could find. My blue '62 saloon has the original (painted over) seals, like this. I cut a bit of the bonnet seal rubber to make new ones for my '68 Traveller, like this. The profile was about right, and it worked pretty well.
Re: Sealing rear of window frames
right, thanks for the advice, now all I have to do is make it! I have an old inner tube so fingers crossed
Re: Sealing rear of window frames

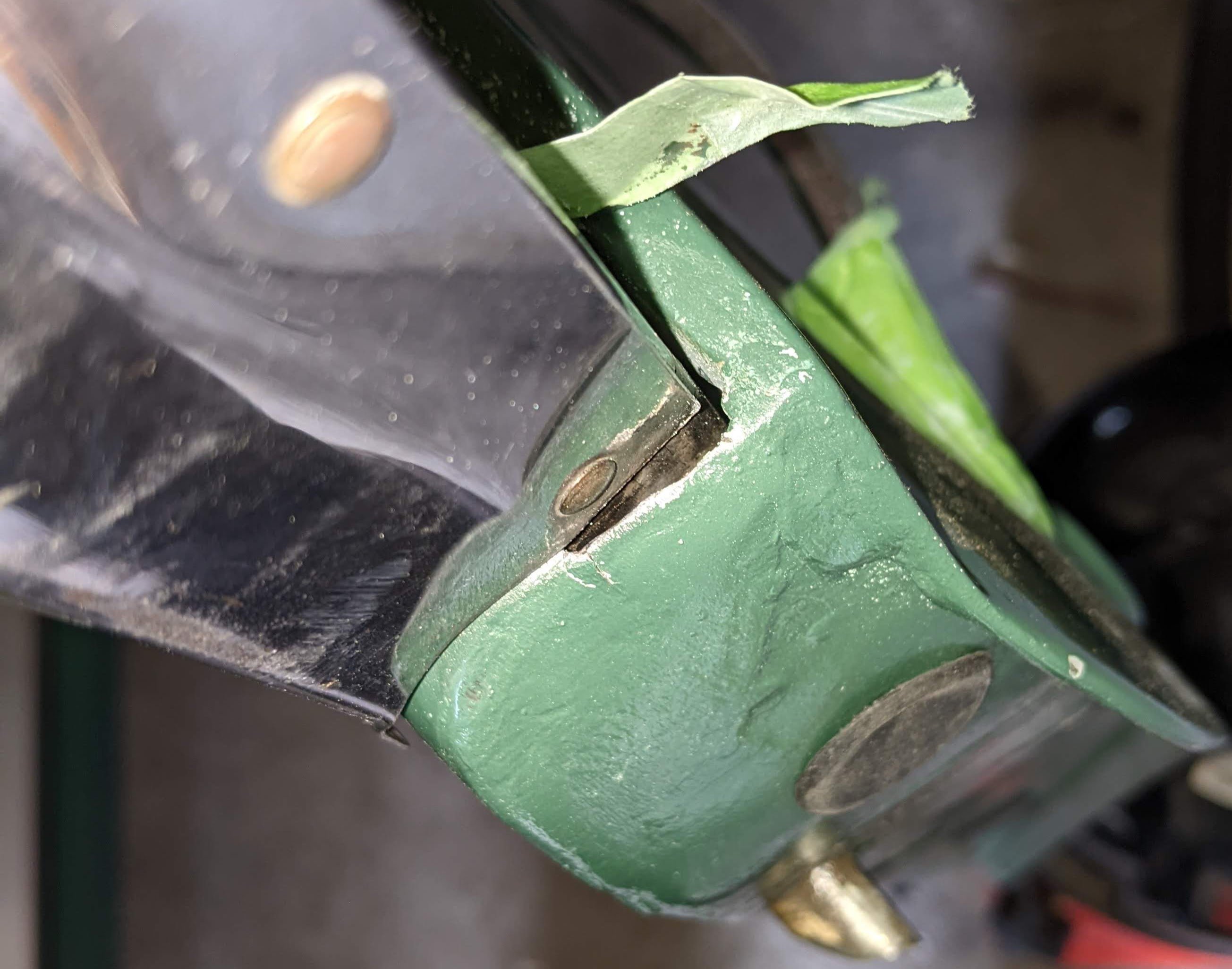

I used Sugru which is an mouldable, air setting rubber compound to make a fillet around the frame. I didn't do the neatest job so will probably re-do it in the future.
Re: Sealing rear of window frames
Nice one thanks, looks pretty neat to me!
