Replacement voltage stabiliser fitted today and the fault has gone.

Many thanks to all for the help and suggestions.

Roger

I can confirm that the two terminals on the gauge are not earthing to the gauge body. (There are thin insulating washers between the terminals and the body). The gauge is now behaving the same whether in or out of the dash, i.e when ignition switched on, moves fron fully left up to empty and stays t...

So out of dash the fuel gauge is earthing via the sender unit in tank so working correctly but when in dash its earthing not via the sender so wrong reading is that what you mean? So is the gauge terminal that goes to the sender shorting to the gauge body, so earthing via the speedo to car body whe...

Yes that is still in place (I to gauge.)

Out of the dash, as in held in my hand with no contact with anything metal and all other electrical connections removed except for 12V feed to stabiliser B terminal and green/black from tank to fuel gauge.

But surely the sender must be earthing correctly, as the fuel gauge reads correctly when the speedo is out of the dash?

But not the fuel gauge. I think the only thing left is to try a new voltage stabiliser.

The instrument lights are now behaving normally.

I can’t see how it is the voltage stabiliser, as the gauge works correctly when the Speedo is out of the panel.

I disconnected the Speedo drive. Everything still works. Pulled everything electrical out of the back of the Speedo, just leaving the B & I connections to the voltage stabiliser and the green/black from the tank sender. Fuel gauge still works. Shorting the Speedo body to the panel or the two lug...

The oil pressure lamp sender earths through the engine block.
All the lamps including the two speedo illumination lamps work with the speedo out of the dash.

I have checked for anything which may be contacting the back of the gauge and giving a spurious earth. My understanding is that the speedo needs to get it's earth from contact with the dash when it is pushed into place, but everything works as it should when the speedo is out of the dash, so it must...

1968 1000 Traveller. I have just replaced a blown instrument light bulb. On replacing the speedo in the panel, the fuel gauge reads empty (with a full tank). If I remove the speedo again, the gauge reads normally and in addition, the instrument lights come on despite the light switch being in the of...

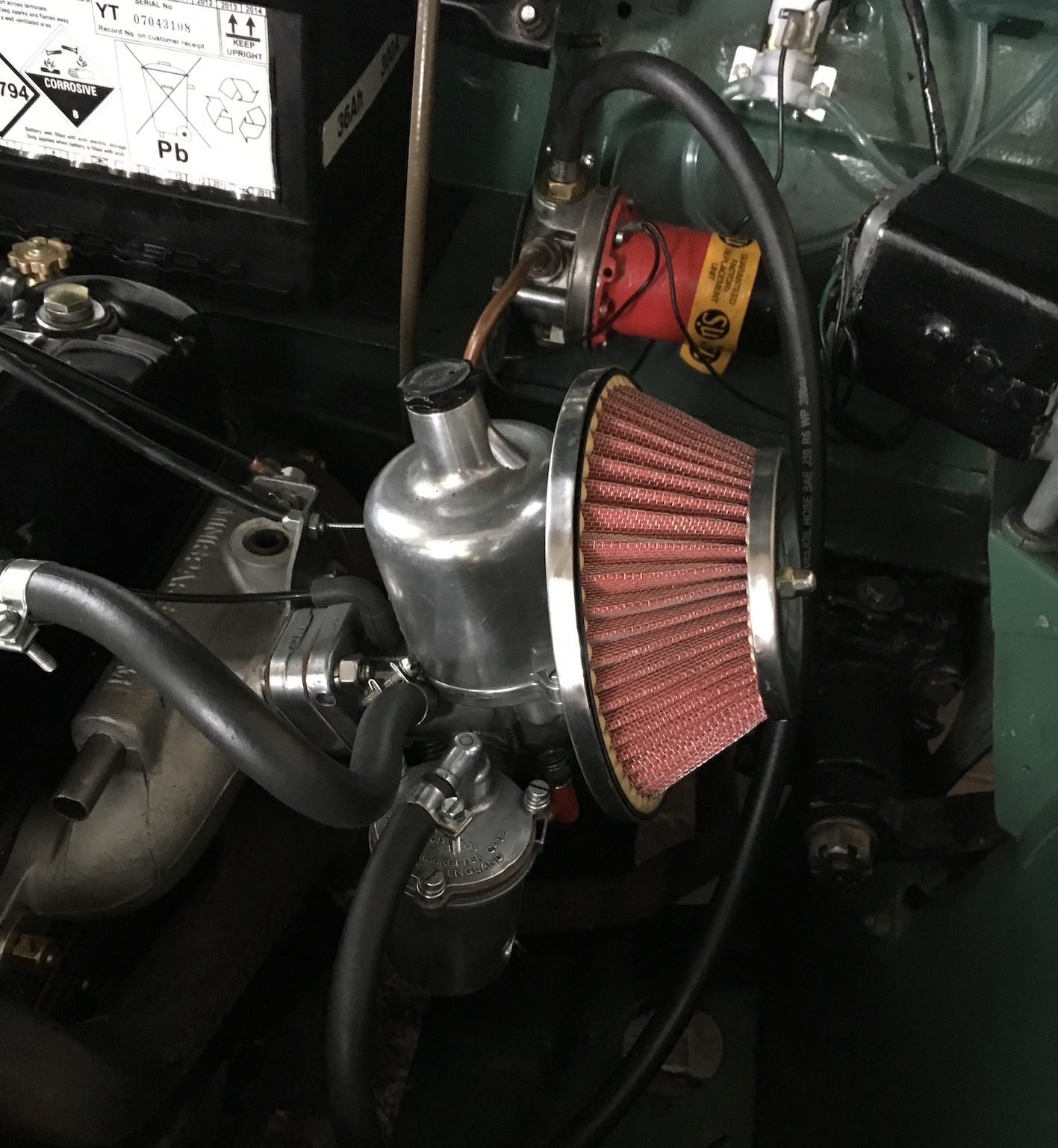

The car is back on the road after the upgrade and going well. The improvement in performance is certainly noticeable, but then the engine was in a very poor state before. I am running a K&N cone type Air filter at the moment, with an AAU needle and red spring in the HS4. This runs well, but I ha...

Thank you Richard. I am in Malvern

Regards
Roger

It’s not a burnt valve given that the engine has never run since rebuild. Piston and rings are brand new too

All noted. Thank you. I have tried Easy Start already, but no luck. I have rechecked all the valve clearances again. 0.012 inlet and 0.015 exhaust. I will try a little oil in no 4 cylinder and redo the comp test. As I understand it, it can either be rings, valves or head gasket?

Tried what you suggested to no avail. I have tried it with new petrol in case the old stuff had gone off. Just will not fire at all. I just did compression test, with the engine cold obviously and cylinders 1-3 give around 140 and no 4 gives 30 psi, so something definitely amiss. Not that even that ...

Already done. I never removed the distributor drive, but when I came to do the timing it was out by 180 deg. I set it static on no 1 cylinder and then moved the plug leads until they were correct and in the right order. When the engine was disassembled, I found the distributor flange impossible to r...
